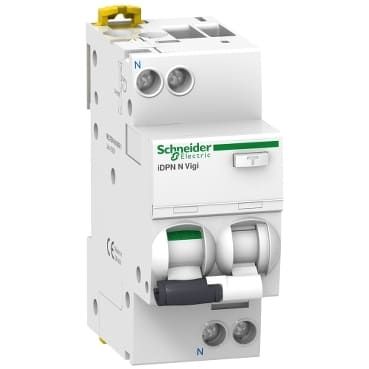

Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type A
Range: Acti9
Product type: Miniature circuit-breaker
Device application: Distribution
Poles description: 1P
