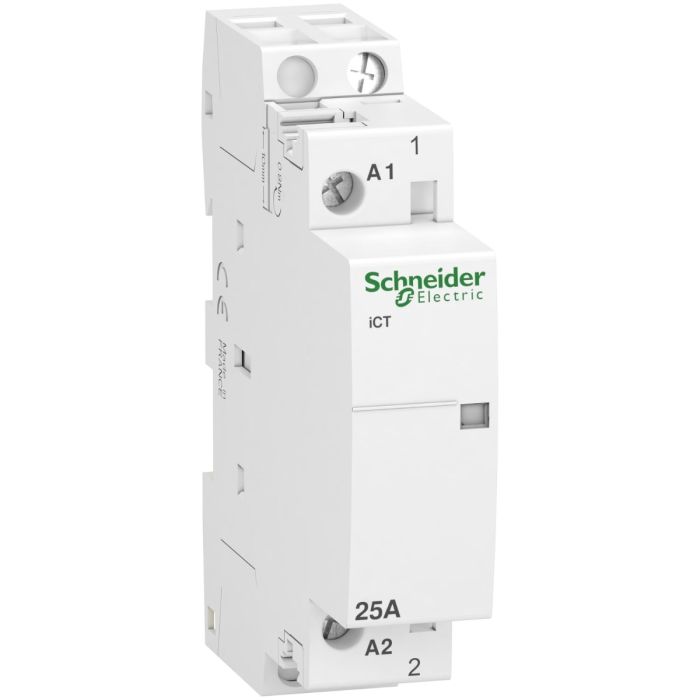

Schneider Electric iCT contactor, 25A 1NO 230...240V 50Hz
Range: Acti9
Product type: Contactor
Device application: Motor-heating-lighting
Poles: 1P
You May Also Like:
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 999 Regular Price EGP 6,326
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IIL Single Indicator Light, White, 110-230 VACSpecial Price EGP 336 Regular Price EGP 525
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 1 Pole, 50A, C Curve, 10000A,15KSpecial Price EGP 918 Regular Price EGP 1,412
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 IC60H, 3P, 6A, C-Curve,15KSpecial Price EGP 2,583 Regular Price EGP 3,974
Schneider Electric Acti9 iC60H Miniature circuit-breaker, 3P, 50 A, C curve,15KSpecial Price EGP 3,347 Regular Price EGP 5,109
Schneider Electric Miniature Circuit-Breaker, Acti9 IC60N, 2P, 25 A, C Curve, 6000 ASpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Miniature Circuit-Breaker, Acti9 iC60N, 4P, 63 A, C Curve, 6000 ASpecial Price EGP 2,486 Regular Price EGP 3,796
Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type ASpecial Price EGP 3,357 Regular Price EGP 4,632
Schneider Electric Acti9 iC60N, 40 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 744 Regular Price EGP 1,145
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 10A, C curveSpecial Price EGP 436 Regular Price EGP 586
Schneider Electric Miniature Circuit Breaker (MCB) , Acti9 IC60N , 1P , 6A , D Curve , 6000A IEC/EN 60898, 1, 10kA IEC/EN 60947, 2Special Price EGP 448 Regular Price EGP 689
Schneider Electric Miniature Circuit-Breaker, Acti9 Ic60H, 1P, 63 A, C Curve, 10000 A, 15KSpecial Price EGP 810 Regular Price EGP 1,236
Schneider Electric Acti9 iC60N, 32A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 745 Regular Price EGP 1,145
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 4P 32A, D Curve, 10,000A, IEC/EN 60898-1, 15kA IEC/EN 60947-2Special Price EGP 3,030 Regular Price EGP 4,661
Schneider Electric Acti9 iC60N 10 A Miniature Circuit Breaker 4P, C curveSpecial Price EGP 1,886 Regular Price EGP 2,902
Schneider Electric iCT 63A 2NO 220...240V 50Hz ContactorSpecial Price EGP 3,850 Regular Price EGP 6,015
Schneider Electric Acti9 IIL Single Indicator Light, Blue, 110, 230 VACSpecial Price EGP 443 Regular Price EGP 692
This Acti9 iCT is a modular contactor. It is a 1P remote control device with 1 normally open contact. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable.
Specifications:
Main | |
range of product | Acti9 |
Product name | Acti9 iCT |
product or component type | Contactor |
Device short name | iCT |
Device application | Motor-heating-lighting |
Poles | 1P |
[Ie] rated operational current | 25 A AC-7A |
8.5 A AC-7B | |
Pole contact composition | 1 NO |
Network type | AC |
Control type | Remote control |
[Uc] control circuit voltage | 230...240 V AC 50 Hz |
Complementary | |
Network frequency | 50 Hz |
[Ue] rated operational voltage | 250 V AC 50 Hz |
Maximum power | 1.2 W at 250 V AC |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz |
[Uimp] rated impulse withstand voltage | 4 kV |
Control signal type | Maintained |
switching frequency | 100 switching operations/day |
Local signalling | Action indicator |
Hold-in power consumption in VA | 2.7 VA |
Inrush power in VA | 9.2 VA |
mounting mode | Clip-on |
mounting support | 35 mm symmetrical DIN rail |
9 mm pitches | 2 |
Height | 81 mm |
Width | 18 mm |
Depth | 60 mm |
Colour | White |
Mechanical durability | 1000000 cycles |
Electrical durability | 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A |
30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B | |
30000 cycles IEC/EN 61095 50 Hz AC-7C | |
100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 | |
30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 | |
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a | |
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b | |
Connections - terminals | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid |
Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible | |
Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid | |
Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid | |
Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible | |
Tightening torque | Control circuit: 0.8 N.m |
Power circuit: 0.8 N.m | |
Product compatibility | IACTc |
IACTs | |
IATEt | |
IACTp | |
Compatibility code | ICT |
Market segment | Small commercial |
Residential | |
Environment | |
Standards | IEC/EN 61095 |
Noise level | 30 dB |
Heat dissipation | 0.9 W at 50/60 Hz |
IP degree of protection | IP20 |
Pollution degree | 2 |
Tropicalisation | 2 conforming to EN 60947-4-1 |
2 conforming to EN 61095 | |
2 conforming to IEC 1095 | |
Relative humidity | 95 % at 55 °C |
Operating altitude | 2000 m |
ambient air temperature for operation | -5…60 °C |
ambient air temperature for storage | -40…70 °C |
| Weight | 0.108000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9C20731 |
| Color | White |
| Device Application | Motor-heating-lighting |
| Warranty | 1 Year |
| Depth [cm] | 6 |
| Width [cm] | 1.8 |
| Height [cm] | 8.1 |
| Range | Acti9 |
| Family | HDCFD |
| Type | Contactor |
| Poles | 1P |
| [In] Rated Current | 25 A |
| Voltage ~ Frequency | 230 V AC 50/60 Hz |
| IP Degree of Protection | IP20 |
