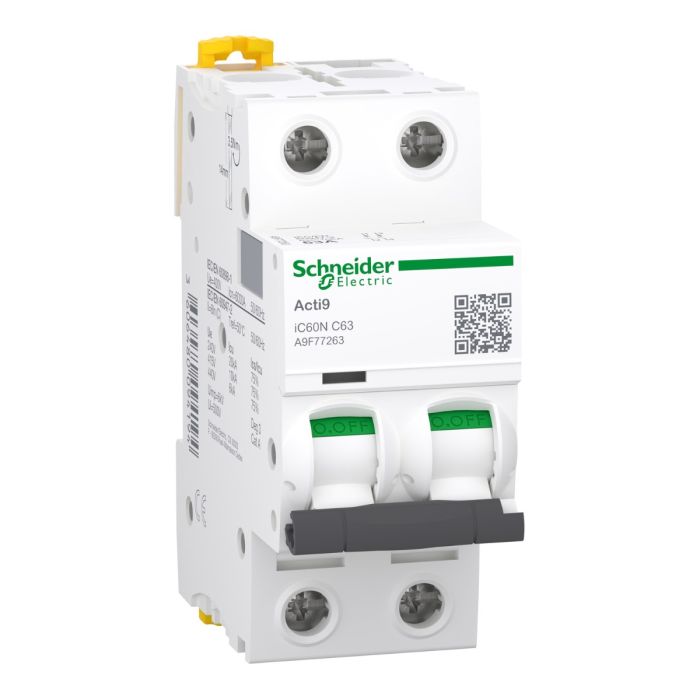

Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curve, Schneider Electric

Main

Device application

Distribution

Range

Acti9

Product name

Acti9 iC60

product or component type

Miniature circuit-breaker

Device short name

IC60N

poles description

2P

Number of protected poles

2

[In] rated current

63 A

Network type

DC

AC

Trip unit technology

Thermal-magnetic

Curve code

C

Breaking capacity

6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1

36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2

10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2

10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2

20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2

6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2

36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2

Utilisation category

Category A conforming to EN 60947-2

Category A conforming to IEC 60947-2

Suitability for isolation

Yes conforming to EN 60898-1

Yes conforming to EN 60947-2

Yes conforming to IEC 60898-1

Yes conforming to IEC 60947-2

Standards

IEC 60947-2

EN 60947-2

IEC 60898-1

EN 60898-1

Quality labels

NF

Complementary

Network frequency

50/60 Hz

Magnetic tripping limit

8 x In +/- 20 %

[Ics] rated service breaking capacity

15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz

7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz

4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz

15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz

7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz

4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz

27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz

27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz

6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz

6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz

10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC

10 kA 100 % conforming to EN 60947-2 - 72...125 V DC

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN 60947-2

500 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 60947-2

6 kV conforming to IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

local signalling

Trip indicator

mounting mode

Fixed

mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

78.5 mm

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Single terminal (top or bottom) 1…35 mm² rigid

Single terminal (top or bottom) 1…25 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Earth-leakage protection

Separate block

Environment

IP degree of protection

IP20 conforming to IEC 60529

IP20 conforming to EN 60529

Pollution degree

3 conforming to EN 60947-2

3 conforming to IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-35…70 °C

ambient air temperature for storage

-40…85 °C
