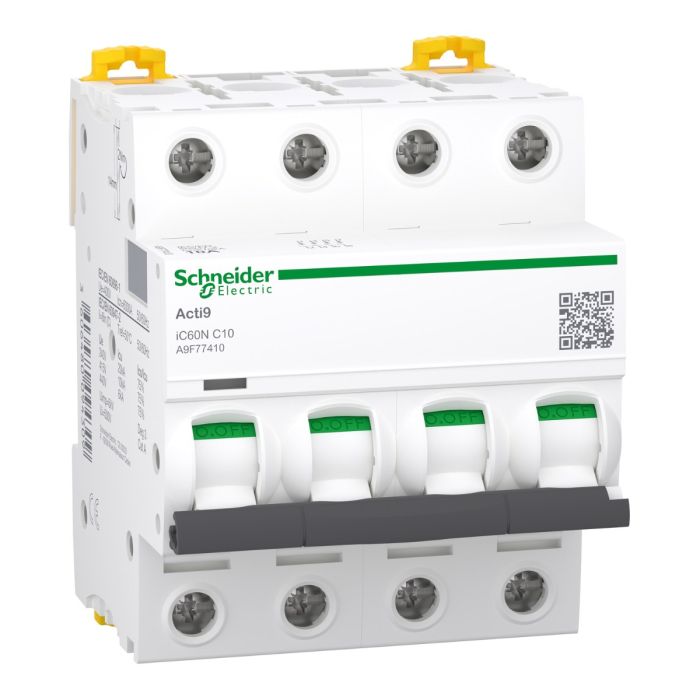

Acti9 iC60N 10 A Miniature Circuit Breaker 4P, C curve, Schneider Electric
Number of protected poles: 4
[In] rated current: 10 A
Introducing the A9F77410 Miniature Circuit Breaker from Acti9 - your reliable solution for circuit protection. This 4-pole circuit breaker is designed to safeguard your electrical circuits, ensuring safe and efficient operation.
Key Features:
4-Pole Configuration: This circuit breaker provides protection for four electrical poles, making it suitable for various applications.
Current Rating: With a 10A current rating, it offers effective protection for circuits handling up to 10 amperes of current.
C-Curve: The C-curve trip characteristic makes it suitable for a wide range of applications, including motors and transformers.
High Breaking Capacity: This circuit breaker features a high breaking capacity of 10 kA, ensuring it can safely interrupt high fault currents.
Compliance: It complies with IEC 60898-1 and IEC 60947-2 standards, ensuring reliability and safety.
Pole Configuration: 4-Pole
Current Rating: 10A
Curve Type: C-Curve
Breaking Capacity: 10 kA
Standards: IEC 60898-1, IEC 60947-2
Applications:
The A9F77410 Miniature Circuit Breaker is suitable for a wide range of applications, including residential, commercial, and industrial settings. It provides essential protection for electrical circuits, motors, and transformers.
Specifications:
Main | |
Device application | Distribution |
Range | Acti9 |
Product name | Acti9 iC60 |
Product or component type | Miniature circuit-breaker |
Device short name | IC60N |
Poles description | 4P |
Number of protected poles | 4 |
[In] rated current | 10:00 AM |
Network type | AC |
DC | |
Trip unit technology | Thermal-magnetic |
Curve code | C |
Breaking capacity | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2 | |
Utilisation category | Category A conforming to EN 60947-2 |
Category A conforming to IEC 60947-2 | |
Suitability for isolation | Yes conforming to EN 60898-1 |
Yes conforming to EN 60947-2 | |
Yes conforming to IEC 60898-1 | |
Yes conforming to IEC 60947-2 | |
standards | IEC 60898-1 |
IEC 60947-2 | |
EN 60898-1 | |
EN 60947-2 | |
Quality labels | NF |
Complementary | |
Network frequency | 50/60 Hz |
Magnetic tripping limit | 8 x In +/- 20 % |
[Ics] rated service breaking capacity | 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz |
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz | |
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz | |
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz | |
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz | |
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz | |
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz | |
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz | |
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz | |
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz | |
10 kA 100 % conforming to IEC 60947-2 - 180...250 V DC | |
10 kA 100 % conforming to EN 60947-2 - 180...250 V DC | |
Limitation class | 3 conforming to EN 60898-1 |
3 conforming to IEC 60898-1 | |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 |
500 V AC 50/60 Hz conforming to IEC 60947-2 | |
[Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 |
6 kV conforming to IEC 60947-2 | |
Contact position indicator | Yes |
control type | Toggle |
Local signalling | Trip indicator |
Mounting mode | Fixed |
mounting support | DIN rail |
Comb busbar and distribution block compatibility | Top or bottom: YES |
9 mm pitches | 8 |
height | 85 mm |
Width | 72 mm |
Depth | 78.5 mm |
Net weight | 0.5 kg |
Colour | White |
Mechanical durability | 20000 cycles |
Electrical durability | 10000 cycles |
Connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid |
Single terminal (top or bottom) 1…16 mm² flexible | |
Wire stripping length | 14 mm for top or bottom connection |
Tightening torque | 2 N.m top or bottom |
earth-leakage protection | Separate block |
Environment | |
IP degree of protection | IP20 conforming to IEC 60529 |
IP20 conforming to EN 60529 | |
Pollution degree | 3 conforming to EN 60947-2 |
3 conforming to IEC 60947-2 | |
Overvoltage category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative humidity | 95 % at 55 °C |
Operating altitude | 0...2000 m |
| Weight | 0.600000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9F77410 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.9 |
| Width [cm] | 7.2 |
| Height [cm] | 8.5 |
| Range | Ic60 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 4P |
| [In] Rated Current | 10:00 AM |
