Schneider Electric Miniature Circuit Breaker, Acti9 iC60H, 3P, 20A, C curve, 10000 A,15K
Range: Acti9
Product type: Miniature circuit breaker
Device application: Distribution
Poles: 3P
You May Also Like:
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 999 Regular Price EGP 6,326
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IIL Single Indicator Light, White, 110-230 VACSpecial Price EGP 336 Regular Price EGP 525
Schneider Electric iCT contactor, 25A 1NO 230...240V 50HzSpecial Price EGP 1,389 Regular Price EGP 2,170
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 1 Pole, 50A, C Curve, 10000A,15KSpecial Price EGP 918 Regular Price EGP 1,412
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 IC60H, 3P, 6A, C-Curve,15KSpecial Price EGP 2,583 Regular Price EGP 3,974
Schneider Electric Acti9 iC60H Miniature circuit-breaker, 3P, 50 A, C curve,15KSpecial Price EGP 3,347 Regular Price EGP 5,109
Schneider Electric Miniature Circuit-Breaker, Acti9 IC60N, 2P, 25 A, C Curve, 6000 ASpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type ASpecial Price EGP 3,357 Regular Price EGP 4,632
Schneider Electric Acti9 iC60N, 40 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 744 Regular Price EGP 1,145
Schneider Electric Miniature Circuit-Breaker, Acti9 iC60N, 4P, 63 A, C Curve, 6000 ASpecial Price EGP 2,486 Regular Price EGP 3,796
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 10A, C curveSpecial Price EGP 436 Regular Price EGP 586
Schneider Electric Miniature Circuit-Breaker, Acti9 Ic60H, 1P, 63 A, C Curve, 10000 A, 15KSpecial Price EGP 810 Regular Price EGP 1,236
Schneider Electric Miniature Circuit Breaker (MCB) , Acti9 IC60N , 1P , 6A , D Curve , 6000A IEC/EN 60898, 1, 10kA IEC/EN 60947, 2Special Price EGP 448 Regular Price EGP 689
Schneider Electric Acti9 iC60N, 32A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 745 Regular Price EGP 1,145
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 4P 32A, D Curve, 10,000A, IEC/EN 60898-1, 15kA IEC/EN 60947-2Special Price EGP 3,030 Regular Price EGP 4,661
Schneider Electric Acti9 iC60N 10 A Miniature Circuit Breaker 4P, C curveSpecial Price EGP 1,886 Regular Price EGP 2,902
Schneider Electric Acti9 IIL Single Indicator Light, Blue, 110, 230 VACSpecial Price EGP 443 Regular Price EGP 692

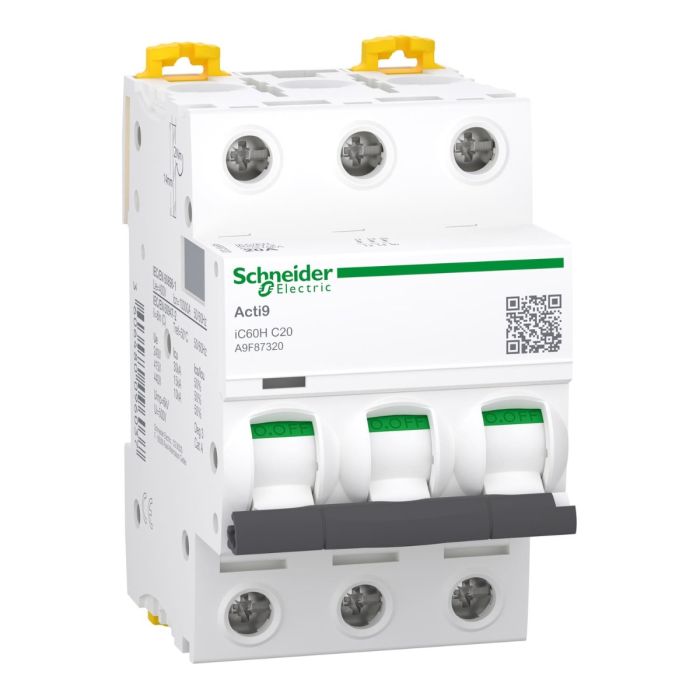

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Specifications:
| Main | ||
| Device application | Distribution | |
| Range | Acti9 | |
| Product name | Acti9 iC60 | |
| Product or component type | Miniature circuit-breaker | |
| Device short name | iC60H | |
| Poles description | 3P | |
| Number of protected poles | ٣ | |
| [In] rated current | 20 A | |
| Network type | DC | |
| AC | ||
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity | 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
| 42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 | ||
| 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 | ||
| 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | ||
| 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 | ||
| 15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 | ||
| Utilisation category | Category A conforming to EN 60947-2 | |
| Category A conforming to IEC 60947-2 | ||
| Suitability for isolation | Yes conforming to EN 60898-1 | |
| Yes conforming to EN 60947-2 | ||
| Yes conforming to IEC 60898-1 | ||
| Yes conforming to IEC 60947-2 | ||
| Standards | IEC 60947-2 | |
| EN 60898-1 | ||
| IEC 60898-1 | ||
| EN 60947-2 | ||
| Quality labels | NF | |
| Complementary | ||
| Network frequency | 50/60 Hz | |
| Magnetic tripping limit | 8 x In +/- 20 % | |
| [Ics] rated service breaking capacity | 15 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz | |
| 7.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz | ||
| 5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz | ||
| 15 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz | ||
| 7.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz | ||
| 5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz | ||
| 7500 A 75 % conforming to EN 60898-1 - 400 V AC 50/60 Hz | ||
| 7500 A 75 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz | ||
| 21 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz | ||
| 21 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz | ||
| 15 kA 100 % conforming to IEC 60947-2 - 125...180 V DC | ||
| 15 kA 100 % conforming to EN 60947-2 - 125...180 V DC | ||
| Limitation class | 3 conforming to EN 60898-1 | |
| 3 conforming to IEC 60898-1 | ||
| 500 V AC 50/60 Hz conforming to EN 60947-2 | |
| 500 V AC 50/60 Hz conforming to IEC 60947-2 | ||
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 | |
| 6 kV conforming to IEC 60947-2 | ||
| Contact position indicator | Yes | |
| Control type | Toggle | |
| Local signalling | Trip indicator | |
| Mounting mode | Fixed | |
| Mounting support | DIN rail | |
| Comb busbar and distribution block compatibility | Top or bottom: YES | |
| 9 mm pitches | ٦ | |
| Height | 85 mm | |
| Width | 54 mm | |
| Depth | 78.5 mm | |
| Net weight | 0.375 kg | |
| Colour | White | |
| Mechanical durability | 20000 cycles | |
| Electrical durability | 10000 cycles | |
| Connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid | |
| Single terminal (top or bottom) 1…16 mm² flexible | ||
| Wire stripping length | 14 mm for top or bottom connection | |
| Tightening torque | 2 N.m top or bottom | |
| Earth-leakage protection | Separate block | |
| Environment | ||
| IP degree of protection | IP20 conforming to IEC 60529 | |
| IP20 conforming to EN 60529 | ||
| Pollution degree | 3 conforming to EN 60947-2 | |
| 3 conforming to IEC 60947-2 | ||
| Overvoltage category | IV | |
| Tropicalisation | 2 conforming to IEC 60068-1 | |
| Relative humidity | 95 % at 55 °C | |
| Operating altitude | 0...2000 m | |
| Ambient air temperature for operation | -35…70 °C | |
| Ambient air temperature for storage | -40…85 °C |
| Weight | 0.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9F87320 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.85 |
| Width [cm] | 5.4 |
| Height [cm] | 8.5 |
| Range | Acti9 |
| Type | Miniature circuit-breaker |
| Poles | 3P |
| Breaker Capacity | 15K |
| [In] Rated Current | 20 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
