Schneider Electric Miniature Circuit Breaker, Acti9 C120H, 3P, 100A, C Curve, 15,000A IEC 60898-1, 15 kA IEC 60947-2
Product or component type: Miniature circuit-breaker
Numbers of poles: 3P
Mounting mode: Clip-on
[In] rated current: 100 A at 30 °C
You May Also Like:
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 999 Regular Price EGP 6,326
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IIL Single Indicator Light, White, 110-230 VACSpecial Price EGP 336 Regular Price EGP 525
Schneider Electric iCT contactor, 25A 1NO 230...240V 50HzSpecial Price EGP 1,389 Regular Price EGP 2,170
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 1 Pole, 50A, C Curve, 10000A,15KSpecial Price EGP 918 Regular Price EGP 1,412
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 IC60H, 3P, 6A, C-Curve,15KSpecial Price EGP 2,583 Regular Price EGP 3,974
Schneider Electric Acti9 iC60H Miniature circuit-breaker, 3P, 50 A, C curve,15KSpecial Price EGP 3,347 Regular Price EGP 5,109
Schneider Electric Miniature Circuit-Breaker, Acti9 IC60N, 2P, 25 A, C Curve, 6000 ASpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type ASpecial Price EGP 3,357 Regular Price EGP 4,632
Schneider Electric Acti9 iC60N, 40 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 744 Regular Price EGP 1,145
Schneider Electric Miniature Circuit-Breaker, Acti9 iC60N, 4P, 63 A, C Curve, 6000 ASpecial Price EGP 2,486 Regular Price EGP 3,796
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 10A, C curveSpecial Price EGP 436 Regular Price EGP 586
Schneider Electric Miniature Circuit-Breaker, Acti9 Ic60H, 1P, 63 A, C Curve, 10000 A, 15KSpecial Price EGP 810 Regular Price EGP 1,236
Schneider Electric Miniature Circuit Breaker (MCB) , Acti9 IC60N , 1P , 6A , D Curve , 6000A IEC/EN 60898, 1, 10kA IEC/EN 60947, 2Special Price EGP 448 Regular Price EGP 689
Schneider Electric Acti9 iC60N, 32A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 745 Regular Price EGP 1,145
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 4P 32A, D Curve, 10,000A, IEC/EN 60898-1, 15kA IEC/EN 60947-2Special Price EGP 3,030 Regular Price EGP 4,661
Schneider Electric Acti9 iC60N 10 A Miniature Circuit Breaker 4P, C curveSpecial Price EGP 1,886 Regular Price EGP 2,902
Schneider Electric Acti9 IIL Single Indicator Light, Blue, 110, 230 VACSpecial Price EGP 443 Regular Price EGP 692

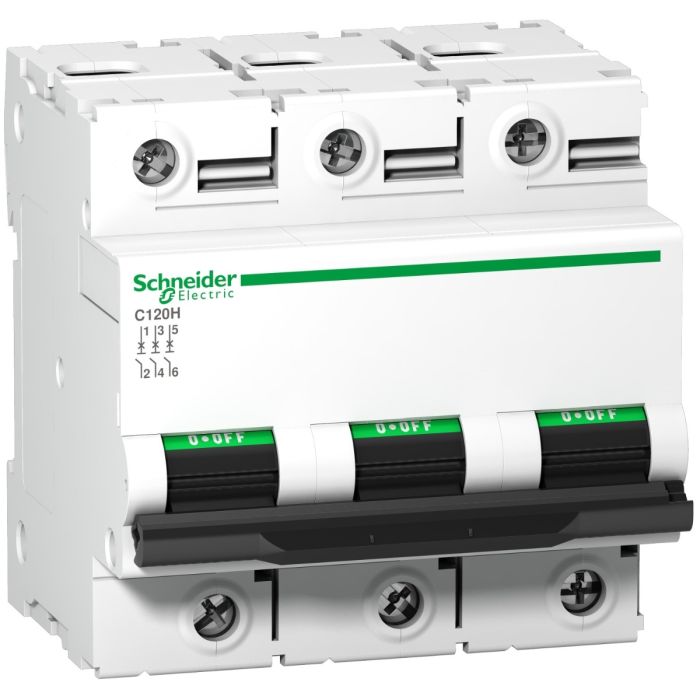

This Acti9 C120H is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard.
This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees that contacts open physically and allows work to be carried out safely on the downstream circuit. Its fast closing mechanism improves its service life. Acti9 C120 offer is dedicated to industrial and tertiary buildings. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles.
Specifications:
Main | |
Range of product | C120 |
Range | Acti9 |
Product name | C120 |
Product or component type | Miniature circuit-breaker |
Device short name | C120H |
Device application | Distribution |
Poles description | 3P |
Number of protected poles | 3 |
[In] rated current | 100 A at 30 °C |
Network type | AC |
Trip unit technology | Thermal-magnetic |
Curve code | C |
Breaking capacity | 15000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
15 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2 | |
Suitability for isolation | Yes conforming to IEC 60947-2 |
Complementary | |
Network frequency | 50/60 Hz |
[Ue] rated operational voltage | <= 375 V DC |
380...415 V AC 50/60 Hz | |
220...240 V AC 50/60 Hz | |
440 V AC 50/60 Hz | |
230...400 V AC 50/60 Hz | |
Magnetic tripping limit | 5...10 x In |
[Ics] rated service breaking capacity | 7500 A 50 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz |
5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz | |
15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz | |
7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz | |
15 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC | |
Limitation class | 3 conforming to EN/IEC 60947-2 |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
Contact position indicator | Yes |
Control type | Toggle |
local signalling | ON/OFF indication |
Mounting mode | Clip-on |
mounting support | 35 mm symmetrical DIN rail |
Comb busbar and distribution block compatibility | NO |
9 mm pitches | 9 |
height | 81 mm |
Depth | 73 mm |
Width | 81 mm |
Colour | White |
Mechanical durability | 20000 cycles |
Electrical durability | 5000 cycles conforming to IEC 60947-2 |
Locking options description | Handle sealable with cable diameter 0.7mm in OFF or ON position |
Connections - terminals | Tunnel type terminals1…50 mm² rigid |
Tunnel type terminals1.5…35 mm² flexible | |
Wire stripping length | 15 mm |
Tightening torque | 3.5 N.m |
earth-leakage protection | Separate block |
Environment | |
Standards | EN/IEC 60947-2 |
EN/IEC 60898-1 | |
product certifications | EAC |
IP degree of protection | IP20 conforming to IEC 60529 |
Pollution degree | 3 conforming to IEC 60947-2 |
Overvoltage category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative humidity | 95 % at 55 °C |
Operating altitude | 2000 m |
Ambient air temperature for operation | -30…60 °C |
Ambient air temperature for storage | -40…70 °C |
| Weight | 0.615000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9N18469 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.3 |
| Width [cm] | 8.1 |
| Height [cm] | 8.1 |
| Range | Acti9 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 3P |
| [In] Rated Current | 100 A at 30 °C |
