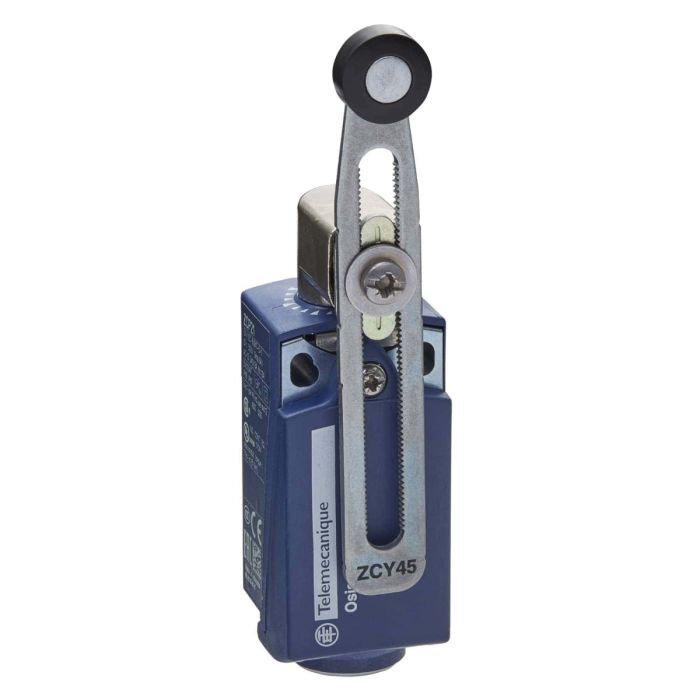

Telemecanique Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, Pg11
Range of product: Telemecanique Limit switches XC Standard
Product Type: Limit switch
Contact operation: Snap action
Poles: 2
This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic variable length roller lever and a plastic body. This limit switch has a double insulated thermoplastic body,a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant,making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body,and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC,EN/IEC 60947.-5-1,CSA C22.2 No.14,EN/IEC 60204-1,UL 508 standards. Compatible with the well distributed range of common XCK heads,allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch,for example change of connection type or head.
| Range of Product | Telemecanique Limit Switches XC Standard |
| Series Name | Standard Format |
| Product or Component Type | Limit Switch |
| Device Short Name | XCKP |
| Sensor Design | Compact |
| Body Type | Fixed |
| Head Type | Rotary Head |
| Material | Plastic |
| Body Material | Plastic |
| Head Material | Zamak |
| Fixing Mode | By the Body |
| Movement of Operating Head | Rotary |
| Type of Operator | Spring Return Roller Lever Thermoplastic Variable Length |
| Type of Approach | Lateral Approach, 2 Directions |
| Contacts Type and Composition | 1 NC + 1 NO |
| Contact Operation | Snap Action |
| Switch Actuation | By 30° Cam |
| Electrical Connection | Screw-clamp Terminals (Clamping Capacity: 1 x 0.34...2 x 1.5 mm²) |
| Cable Entry | 1 Entry Tapped for Pg 11 Cable Gland |
| Contacts Insulation Form | Zb |
| Positive Opening | With |
| Repeat Accuracy | 0.1 mm on the Tripping Points with 1 Million Operating Cycles |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A (IEC 60947-5-1, Appendix A) |
| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A (IEC 60947-5-1, Appendix A) | |
| Resistance Across Terminals | 25 MΩ (IEC 60255-7 Category 3) |
| Terminals Description ISO n°1 | (21-22) NC |
| (13-14) NO | |
| Shock Resistance | 50 gn for 11 ms (IEC 60068-2-27) |
| Vibration Resistance | 25 gn (f = 10-500 Hz) (IEC 60068-2-6) |
| IP Degree of Protection | IP66 & IP67 (IEC 60529) |
| IK Degree of Protection | IK04 (IEC 62262) |
| Electrical Shock Protection Class | Class II (IEC 61140, NF C 20-030) |
| Protective Treatment | TC |
| Product Certifications | CSA, CCC, UL |
| Standards | CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1 |
| Weight | 0.145000 |
|---|---|
| Brand | Telemecanique |
| Model | XCKP2145G11 |
| Width [cm] | 3.1 |
| Height [cm] | 6.5 |
| Range | Limitswitch |
| Family | IDSEN |
