Telemecanique Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1 m is available to buy in increments of 1
Quick Overview
Range of product: Telemecanique Limit switches XC Standard Product Type: Limit switch Contact operation: Snap action Poles: 2

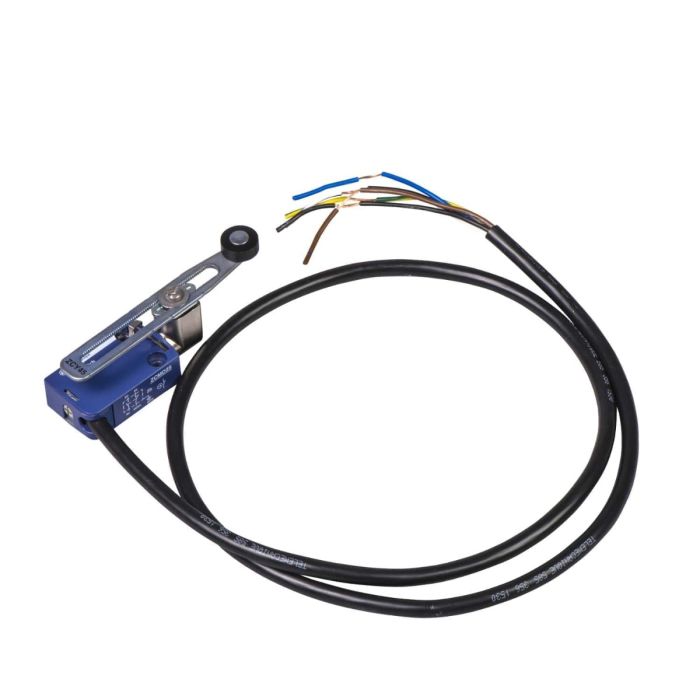

The XCMD offer is a range of robust limit switches in a miniature format. They are ideal for harsh environment machines with space constraints. This limit switch is pre-cabled. It features a metal fixed body and a variable length thermoplastic roller lever. Contacts: 2-pole NC + NO,snap action.
Range of Product
Telemecanique Limit Switches XC Standard
Series Name
Standard Format
Product or Component Type
Limit Switch
Device Short Name
XCMD
Sensor Design
Miniature
Body Type
Fixed
Head Type
Rotary Head
Material
Metal
Body Material
Zamak
Head Material
Zamak
Fixing Mode
By the Body
Movement of Operating Head
Rotary
Type of Operator
Spring Return Roller Lever Thermoplastic Variable Length
Type of Approach
Lateral Approach, 2 Directions
Contacts Type and Composition
1 NC + 1 NO
Contact Operation
Snap Action
Switch Actuation
By 30° Cam
Electrical Connection
Removable Cable Connector
Cable Composition
5 x 0.75 mm²
Wire Insulation Material
PvR
Contacts Insulation Form
Zb
Positive Opening
With
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A (IEC 60947-5-1, Appendix A)
R300, DC-13 (Ue = 250 V), Ie = 0.1 A (IEC 60947-5-1, Appendix A)
Resistance Across Terminals
25 mΩ (IEC 60255-7 Category 3)
Shock Resistance
25 gn for 18 ms (IEC 60068-2-27)
Vibration Resistance
5 gn (f = 10-500 Hz) (IEC 60068-2-6)
IP Degree of Protection
IP66, IP67, IP68 (IEC 60529)
IK Degree of Protection
IK06 (IEC 62262)
Overvoltage Category
Class I (IEC 61140, NF C 20-030)
Protective Treatment
TC
Product Certifications
CSA, CCC, UL
Standards
CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1
