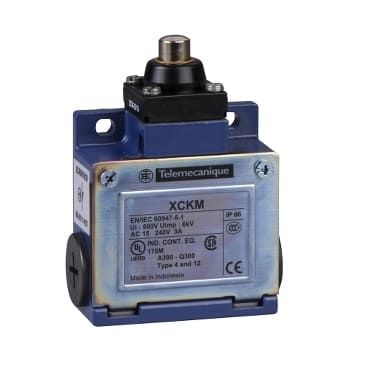

Telemecanique Limit Switch, Limit Switches XC Standard, XCKM, Metal End Plunger, 1NC+1 NO, Slow Break
In stock
SKU
XCKM510
Special Price EGP 306 Regular Price EGP 3,062
Telemecanique Limit Switch, Limit Switches XC Standard, XCKM, Metal End Plunger, 1NC+1 NO, Slow Break is available to buy in increments of 1
Quick Overview
Range: Telemecanique Limit switches XC Standard
Product type: Limit switch
Body type: Fixed
Material: Metal
You May Also Like:
Telemecanique Limit Switch, Limit Switches XC Standard, XCKP, Thermoplastic Plastic Roller Lev Plunger H Or V, 1NC+1 NO, SnapSpecial Price EGP 318 Regular Price EGP 3,180
Telemecanique Limit switch, XC Standard, XCKN, metal end plunger, 1NC+1 NO, snap, Pg11Special Price EGP 92 Regular Price EGP 915
Telemecanique Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, Pg11Special Price EGP 231 Regular Price EGP 2,307
Telemecanique Limit switch, Limit switches XC Standard, XCKP, cat's whisker, 1NC+1 NO, snap, Pg11Special Price EGP 244 Regular Price EGP 2,437
Telemecanique Limit switch, Limit switches XC Standard, XCKP, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, Pg11Special Price EGP 506 Regular Price EGP 5,064
Telemecanique Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1NC+1 NO, snap, 1MSpecial Price EGP 548 Regular Price EGP 5,480
Telemecanique Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1MSpecial Price EGP 477 Regular Price EGP 4,773
Telemecanique Limit Switch Body ZC2J, Fixed, Without Display, 1C/OSpecial Price EGP 691 Regular Price EGP 6,909
Telemecanique Limit Switch Lever, Limit Switches XC Standard, ZC2JY, Thermoplastic Roller,40...70 °CSpecial Price EGP 124 Regular Price EGP 1,240
Specifications:
Main | |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKM |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger, metal |
| Type of approach | Vertical approach, 1 direction |
| Cable entry | 3 entries tapped for Pg 11 cable gland |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Switch actuation | On end |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300 (AC-15, 240 V, 3 A), Q300 (DC-13, 250 V, 0.27 A) |
| Repeat accuracy | 0.05 mm on the tripping points with 1 million operating cycles |
| Resistance across terminals | 25 MΩ conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (21-22) NC, (13-14) NO |
| Shock resistance | 50 gn for 11 ms (IEC 60068-2-27) |
| Vibration resistance | 25 gn (10–500 Hz) (IEC 60068-2-6) |
| IP degree of protection | IP66 (IEC 60529) |
| IK degree of protection | IK05 (IEC 62262) |
| Electrical shock protection class | Class I (IEC 61140 / NF C 20-030) |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1 |
| Product certifications | CSA, CCC, UL |
| Weight | 0.250000 |
|---|---|
| Brand | Telemecanique |
| Model | XCKM510 |
| Depth [cm] | 3 |
| Width [cm] | 6.4 |
| Height [cm] | 6.4 |
| Range | Limitswitch |
| Family | IDSEN |
