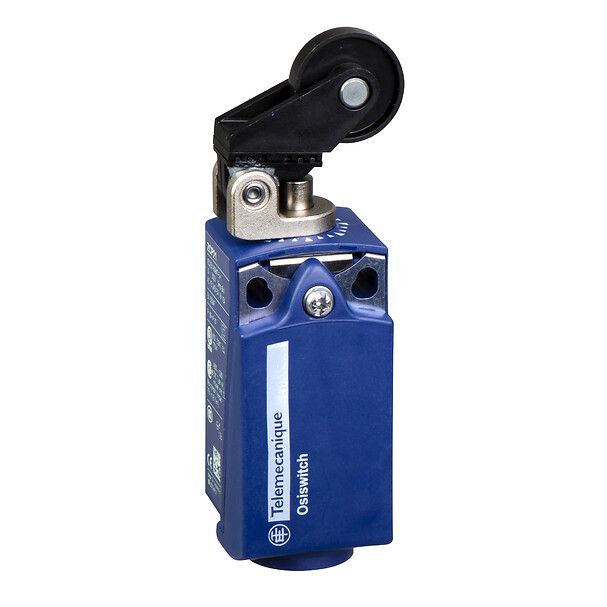

Telemecanique Limit Switch, Limit Switches XC Standard, XCKP, Thermoplastic Plastic Roller Lev Plunger H Or V, 1NC+1 NO, Snap
In stock
SKU
XCKP2128G11
Special Price EGP 318 Regular Price EGP 3,180
Telemecanique Limit Switch, Limit Switches XC Standard, XCKP, Thermoplastic Plastic Roller Lev Plunger H Or V, 1NC+1 NO, Snap is available to buy in increments of 1
Quick Overview
Range: Telemecanique Limit Switches XC Standard
Product type: Limit switch
Material: Plastic
Body type: Fixed
You May Also Like:
Telemecanique Limit switch, XC Standard, XCKN, metal end plunger, 1NC+1 NO, snap, Pg11Special Price EGP 92 Regular Price EGP 915
Telemecanique Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, Pg11Special Price EGP 231 Regular Price EGP 2,307
Telemecanique Limit switch, Limit switches XC Standard, XCKP, cat's whisker, 1NC+1 NO, snap, Pg11Special Price EGP 244 Regular Price EGP 2,437
Telemecanique Limit switch, Limit switches XC Standard, XCKP, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, Pg11Special Price EGP 506 Regular Price EGP 5,064
Telemecanique Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1NC+1 NO, snap, 1MSpecial Price EGP 548 Regular Price EGP 5,480
Telemecanique Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1MSpecial Price EGP 477 Regular Price EGP 4,773
Telemecanique Limit Switch, Limit Switches XC Standard, XCKM, Metal End Plunger, 1NC+1 NO, Slow BreakSpecial Price EGP 306 Regular Price EGP 3,062
Telemecanique Limit Switch Body ZC2J, Fixed, Without Display, 1C/OSpecial Price EGP 691 Regular Price EGP 6,909
Telemecanique Limit Switch Lever, Limit Switches XC Standard, ZC2JY, Thermoplastic Roller,40...70 °CSpecial Price EGP 124 Regular Price EGP 1,240
Specifications:
Range of product | Telemecanique Limit Switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKP |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller lever plunger, thermoplastic |
| Type of approach | Lateral or vertical approach, 1 direction |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm² |
| Cable entry | 1 entry tapped for Pg 11 cable gland |
| Contacts insulation form | Zb |
| Positive opening | Yes |
| Repeat accuracy | 0.1 mm on tripping points with 1 million operating cycles |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A (IEC 60947-5-1 appendix A); Q300, DC-13 (Ue = 250 V), Ie = 0.27 A (IEC 60947-5-1 appendix A) |
| Resistance across terminals | 25 MOhm (IEC 60255-7 category 3) |
| Terminals description ISO n°1 | (21-22) NC, (13-14) NO |
| Shock resistance | 50 gn for 11 ms (IEC 60068-2-27) |
| Vibration resistance | 25 gn (f= 10–500 Hz) (IEC 60068-2-6) |
| IP degree of protection | IP66, IP67 (IEC 60529) |
| IK degree of protection | IK04 (IEC 62262) |
| Electrical shock protection class | Class II (IEC 61140, NF C 20-030) |
| Protective treatment | TC |
| Product certifications | CSA, CCC, UL |
| Standards | CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1 |
| Weight | 0.105000 |
|---|---|
| Brand | Telemecanique |
| Model | XCKP2128G11 |
| Range | Limitswitch |
| Family | IDSEN |
