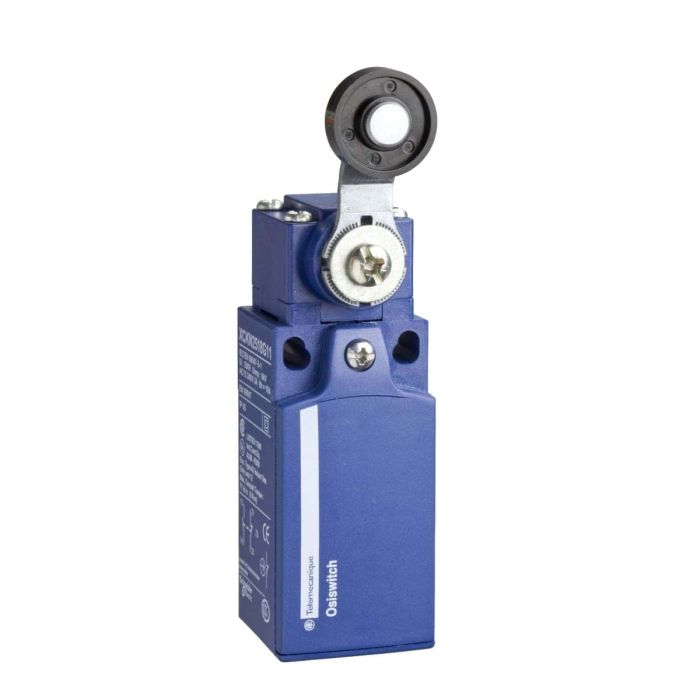

Telemecanique Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 1NC+1 NO, snap, Pg11
Out of stock
SKU
XCKN2118G11
Special Price EGP 92 Regular Price EGP 915
Quick Overview
Range: Telemecanique Limit switches XC Standard
Product Type: Limit switch
Contact operation: Snap action
Poles: 2
You May Also Like:
Telemecanique Limit Switch, Limit Switches XC Standard, XCKP, Thermoplastic Plastic Roller Lev Plunger H Or V, 1NC+1 NO, SnapSpecial Price EGP 318 Regular Price EGP 3,180
Telemecanique Limit switch, XC Standard, XCKN, metal end plunger, 1NC+1 NO, snap, Pg11Special Price EGP 92 Regular Price EGP 915
Telemecanique Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, Pg11Special Price EGP 231 Regular Price EGP 2,307
Telemecanique Limit switch, Limit switches XC Standard, XCKP, cat's whisker, 1NC+1 NO, snap, Pg11Special Price EGP 244 Regular Price EGP 2,437
Telemecanique Limit switch, Limit switches XC Standard, XCKP, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, Pg11Special Price EGP 506 Regular Price EGP 5,064
Telemecanique Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1NC+1 NO, snap, 1MSpecial Price EGP 548 Regular Price EGP 5,480
Telemecanique Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1MSpecial Price EGP 477 Regular Price EGP 4,773
Telemecanique Limit Switch, Limit Switches XC Standard, XCKM, Metal End Plunger, 1NC+1 NO, Slow BreakSpecial Price EGP 306 Regular Price EGP 3,062
Telemecanique Limit Switch Body ZC2J, Fixed, Without Display, 1C/OSpecial Price EGP 691 Regular Price EGP 6,909
Telemecanique Limit Switch Lever, Limit Switches XC Standard, ZC2JY, Thermoplastic Roller,40...70 °CSpecial Price EGP 124 Regular Price EGP 1,240
Specifications:
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact form A |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 1 entry tapped for Pg 11 cable gland |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Tracks | 24/40 mm |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (21-22)NC / (13-14)NO |
| Shock resistance | 45 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CSA, CCC, UL |
| Standards | CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1 |
| Weight | 0.175000 |
|---|---|
| Brand | Telemecanique |
| Model | XCKN2118G11 |
| Width [cm] | 3 |
| Height [cm] | 10.8 |
| Range | Limitswitch |
| Family | IDSEN |
| Type | Switch |
| IP Degree of Protection | IP65 |
| IK Degree of Protection | IK04 |
