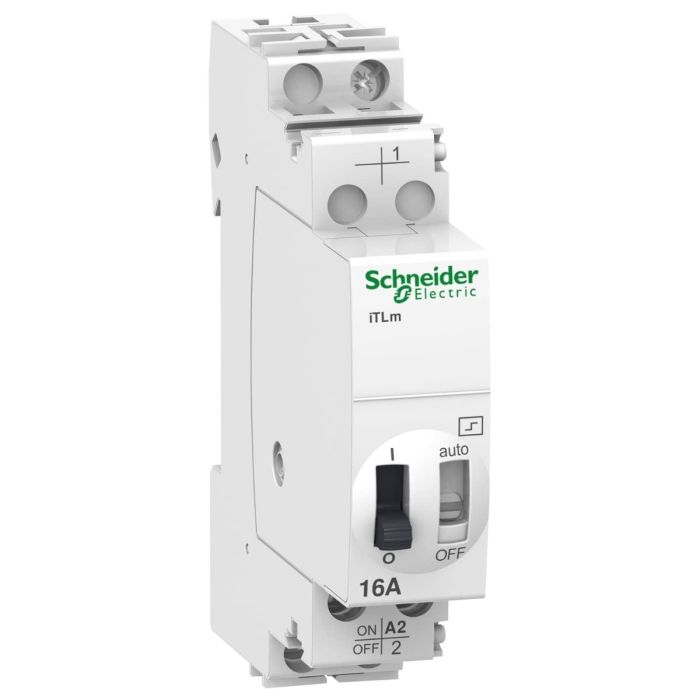

Schneider Electric Impulse Relay, 1P 1NO, 16A, Coil 230-240V AC, 50/60Hz
Range: Acti9
Product type: Miniature circuit-breaker
Device application: Latched control
Poles description: 1P
You May Also Like:
Schneider Electric Overvoltage release, Acti9, iMSU, voltage release, 230 V ACSpecial Price EGP 999 Regular Price EGP 6,326
Schneider Electric Acti9 iC60N, 63 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 951 Regular Price EGP 1,464
Schneider Electric Acti9 iC60N Miniature circuit-breaker, 2P, 10 A, C curveSpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Acti9 IIL Single Indicator Light, White, 110-230 VACSpecial Price EGP 336 Regular Price EGP 525
Schneider Electric iCT contactor, 25A 1NO 230...240V 50HzSpecial Price EGP 1,389 Regular Price EGP 2,170
Schneider Electric Acti9 iC60H Miniature circuit-breaker, 3P, 50 A, C curve,15KSpecial Price EGP 3,347 Regular Price EGP 5,109
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 1 Pole, 50A, C Curve, 10000A,15KSpecial Price EGP 918 Regular Price EGP 1,412
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 IC60H, 3P, 6A, C-Curve,15KSpecial Price EGP 2,583 Regular Price EGP 3,974
Schneider Electric Acti9 IDPN N Vigi RCBO , 1P + N, 20A, C Curve, 6000A, 30mA, Type ASpecial Price EGP 3,357 Regular Price EGP 4,632
Schneider Electric Miniature Circuit-Breaker, Acti9 iC60N, 4P, 63 A, C Curve, 6000 ASpecial Price EGP 2,486 Regular Price EGP 3,796
Schneider Electric Acti9 iC60N, 40 A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 744 Regular Price EGP 1,145
Schneider Electric Miniature Circuit-Breaker, Acti9 IC60N, 2P, 25 A, C Curve, 6000 ASpecial Price EGP 750 Regular Price EGP 1,145
Schneider Electric Miniature Circuit Breaker (MCB), Acti9 iC60N, 2P, 10A, C curveSpecial Price EGP 436 Regular Price EGP 586
Schneider Electric Miniature Circuit-Breaker, Acti9 Ic60H, 1P, 63 A, C Curve, 10000 A, 15KSpecial Price EGP 810 Regular Price EGP 1,236
Schneider Electric Miniature Circuit Breaker (MCB) , Acti9 IC60N , 1P , 6A , D Curve , 6000A IEC/EN 60898, 1, 10kA IEC/EN 60947, 2Special Price EGP 448 Regular Price EGP 689
Schneider Electric Acti9 iC60N, 32A Miniature Circuit Breaker, 2P, C curveSpecial Price EGP 745 Regular Price EGP 1,145
Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB), 4P 32A, D Curve, 10,000A, IEC/EN 60898-1, 15kA IEC/EN 60947-2Special Price EGP 3,030 Regular Price EGP 4,661
Schneider Electric iCT 63A 2NO 220...240V 50Hz ContactorSpecial Price EGP 3,850 Regular Price EGP 6,015
Schneider Electric Acti9 iC60L Miniature Circuit Breaker, 2, Pole, 50 Amp, Curve C, 15 kA IEC 60947, 2Special Price EGP 2,065 Regular Price EGP 3,176
This Acti9 iTLm is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. This impulse relays allow latched type control orders from a changeover contact (switch, time switch, thermostat). The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
Specifications:
| Main | |
| range of product | Acti9 |
| product name | Acti9 iTL |
| Product or component type | Impulse relay |
| Device short name | iTLm |
| Device application | Latched control |
| Poles | 1P |
| Pole contact composition | 1 NO |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage | 230...240 V AC 50/60 Hz |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type | Coil deconnection |
| Remote and manual control | |
| Control signal type | Maintained |
| Switching frequency | 5 switching operations/minute |
| 100 switching operations/day | |
| Impulse duration | 50 ms...1 s |
| Remote control type | 2 entries for switch |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability | AC-21: 200000 cycles |
| AC-22: 100000 cycles | |
| Connections - terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid |
| Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end | |
| Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible | |
| Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible | |
| Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule | |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility | Acti9 iATLs |
| Acti9 iETL iTL 16 | |
| Environment | |
| Standards | EN 669-1 |
| EN 669-2-2 | |
| Product certifications | CCC |
| GOST | |
| Quality labels | KEMA |
| VDE | |
| CEBEC | |
| NF | |
| IMQ | |
| Noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening) |
| IP40 conforming to IEC 60529 (in enclosure) | |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Weight | 0.365000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9C34811 |
| Color | White |
| Depth [cm] | 6 |
| Width [cm] | 1.8 |
| Height [cm] | 8.4 |
| Range | Acti9 |
| Family | HDCFD |
| Type | Impulse relay |
| Poles | 1P |
| [In] Rated Current | 16 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
