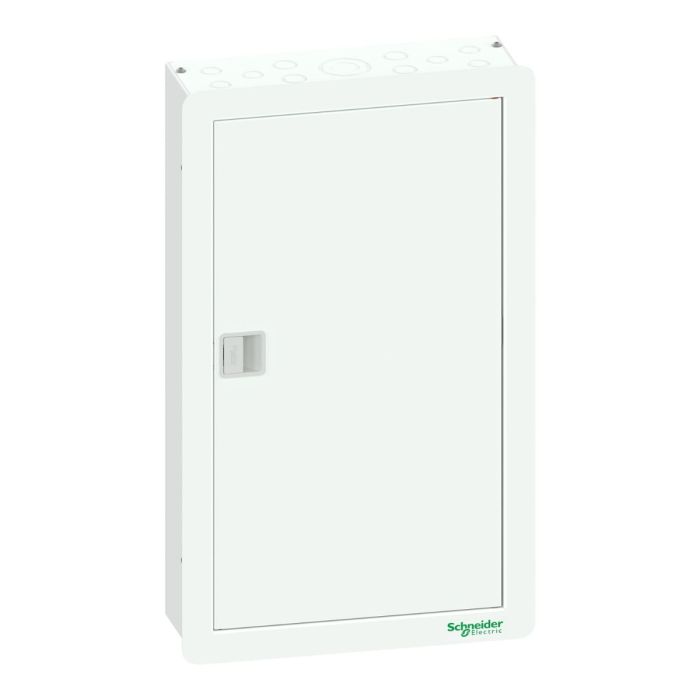

main product photo

Schneider Electric Acti 9 Vertical TPN 24-Way Enclosure with 3P NSX 250A Incomer Provision

Be the first to review this product
In stock
SKU
A9HV324XNSX250
Schneider Electric
Special Price EGP 7,453 Regular Price EGP 11,379
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Schneider Electric Acti 9 Vertical TPN 24-Way Enclosure with 3P NSX 250A Incomer Provision is available to buy in increments of 1
Quick Overview

Range: Acti9 Disbo
Product name: Acti9 Vertical TPN
Product or component type: Distribution board
Device application: Low voltage electrical distribution

This Acti9 product is a flush mounted Vertical TPN distribution board is Fexible and Easy to Install. The rated current can be up to 250A.The number of ways is 24. [Icw] rated short-time withstand current 25kA at 0.3s. [Ipk] rated peak withstand current 52.5kA enclosure,pan assembly,earth terminal block,neutral terminal block bar are provided. incomer provision MCCB 3P. The dimensions are (W) 425mm x (H) 715mm x (D) 148.9mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of powder coated sheet steel. The degree of protection is IP41. This consumer unit complies with IEC 61439-3 standards. The Acti9 Disbo is a SMART choice, Comprehensive system with Wide range of distribution boards for selection

Specifications:

Main


RangeActi9 Disbo
Product nameActi9 Vertical TPN
Product or component typeDistribution board
Device applicationLow voltage electrical distribution
enclosure typeStandard
Door typeFlat
Provided equipmentEnclosure
 pan assembly
 earth terminal block
 neutral terminal block
ColourWhite (RAL 9003)
Complementary
[Ie] rated operational current250 A
[Icw] rated short-time withstand current25 kA for 0.3 s
[Ipk] rated peak withstand current52.5 kA
enclosure mountingFlush
Incomer device3P MCCB
Number of ways24 ways
Enclosure materialPowder coated sheet steel
height785 mm
Width425 mm
Depth148 mm
IP degree of protectionIP41
Targeted countryEgypt
Environment
StandardsIEC 61439-3
Ambient air temperature for operation-5…50 °C









More Information
Weight13.700000
BrandSchneider Electric
ModelA9HV324XNSX250
ColorWhite
Depth [cm]14.8
Width [cm]42.5
Height [cm]78.5
RangeDisbo
FamilyHDCFD
TypeDistribution board
Enclosure TypeStandard
Number of ways24 ways
Door typeFlat
Incomer device3P MCCB
[In] Rated Current250 A
Fixing ModeFlush mounting
MaterialPowder coated sheet steel
