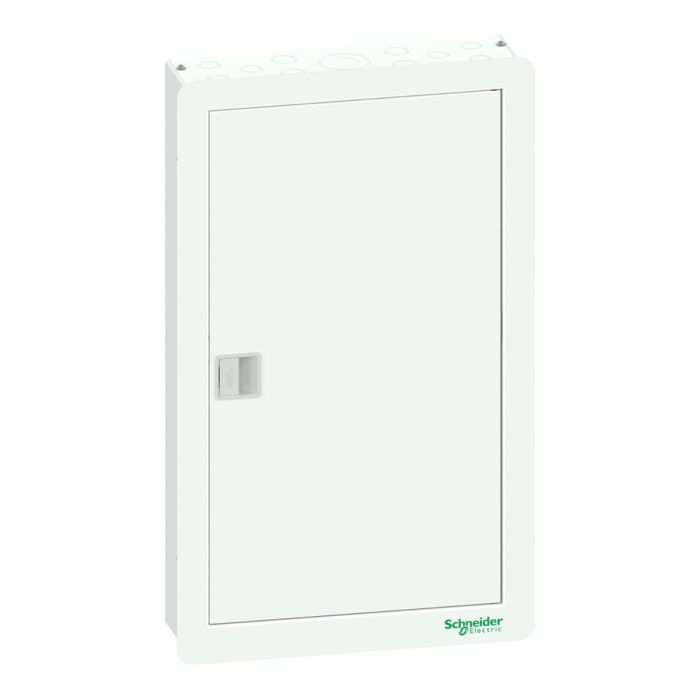

Acti 9 Disbo Vertical TPN 42way Distribution Board with 3P isolator 63A incomer provision, Schneider Electric
[Ie] rated operational current: 63A
Enclosure type: Standard
Door type: Flat
Number of ways: 42 ways
This Acti9 product is a flush mounted Vertical TPN distribution board is Fexible and Easy to Install. The rated current can be up to 63A.The number of ways is 42. [Icw] rated short-time withstand current 17kA at 0.25s. [Ipk] rated peak withstand current 34kA. enclosure,pan assembly,earth terminal block,neutral terminal block bar are provided. incomer provision isolator 3P. The dimensions are (W) 425mm x (H) 715mm x (D) 125.9mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of powder coated sheet steel. The degree of protection is IP41. This consumer unit complies with IEC 61439-3 standards. The Acti9 Disbo is a SMART choice, Comprehensive system with Wide range of distribution boards for selection.
Specifications | |
Main | |
Range | Acti9 Disbo |
Product name | Acti9 Vertical TPN |
Product or component type | Distribution board |
Device application | Low voltage electrical distribution |
Enclosure type | Standard |
Door type | Flat |
Provided equipment | Enclosure |
pan assembly | |
earth terminal block | |
neutral terminal block | |
Colour | White (RAL 9003) |
Complementary | |
[Ie] rated operational current | 63 A |
[Icw] rated short-time withstand current | 17 kA for 0.25 s |
[Ipk] rated peak withstand current | 34 kA |
Enclosure mounting | Flush |
Incomer device | 3P isolator |
Number of ways | 42 ways |
Enclosure material | Powder coated sheet steel |
height | 715 mm |
Width | 425 mm |
Depth | 125 mm |
IP degree of protection | IP41 |
Targeted country | Egypt |
Environment | |
Standards | IEC 61439-3 |
Ambient air temperature for operation | -5…50 °C |
| Weight | 14.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9HV342XI125-C63 |
| Color | White |
| Depth [cm] | 12.5 |
| Width [cm] | 42.5 |
| Height [cm] | 71.5 |
| Range | Disbo |
| Family | HDCFD |
| Type | Distribution board |
| Enclosure Type | Standard |
| Number of ways | 42 ways |
| Door type | Flat |
| Incomer device | 3P isolator |
| [In] Rated Current | 125 A |
| Fixing Mode | Flush mounting |
| Material | Powder coated sheet steel |
