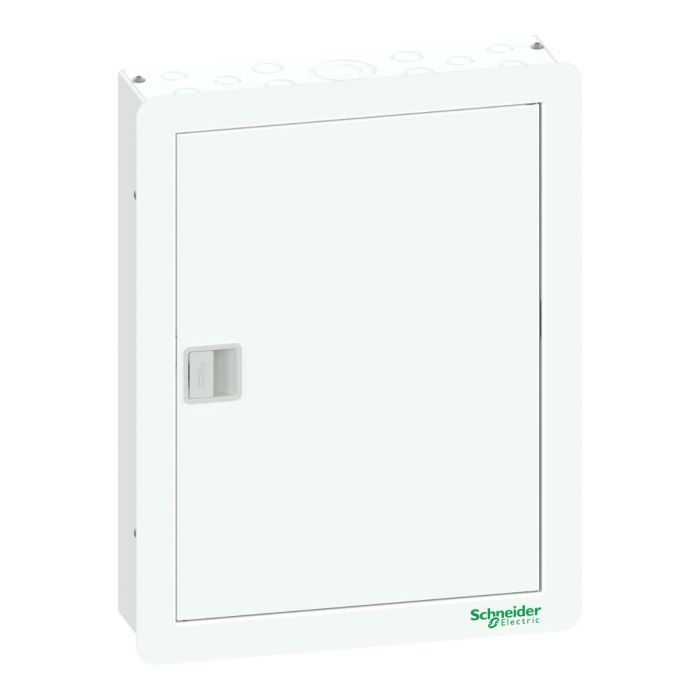

Schneider Electric Acti9 Disbo Vertical TPN 18-way with 3P Isolator 125A Incomer Provisio
Range: Acti9 Disbo
Product type: Distribution board
Door type: Flat
Color: White (RAL 9003)
You May Also Like:
Schneider Electric Acti9 Disbo 18way 125A Panel + 19 Resi9 MCBs + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 6,399 Regular Price EGP 15,999
Schneider Electric Finishing Bundle, Acti9 Disbo 18way 125A Panel + 19 Resi9 MCBs 1PSpecial Price EGP 5,999 Regular Price EGP 14,000
Schneider Electric Vertical Metal Distribution Board, Easy9, 36 WaysSpecial Price EGP 2,609 Regular Price EGP 4,423
Schneider Electric Acti9 Disbo Vertical TPN 48-way with 3P Isolator 125A Incomer ProvisionSpecial Price EGP 10,110 Regular Price EGP 15,436
Schneider Electric Acti9 Disbo 24way MCB Panel Bundle & 3P MCB Circuit Breaker 4.5 KA + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 9,999 Regular Price EGP 18,809
Schneider Electric Acti9 Disbo Vertical TPN 36-way with 3P Isolator 125A Incomer ProvisionSpecial Price EGP 7,863 Regular Price EGP 12,004
Schneider Electric Acti 9 Vertical TPN 36 way with 3P 125A Dual incomer provisionSpecial Price EGP 6,960 Regular Price EGP 10,627
Schneider Electric Acti 9 Vertical TPN 24-Way Distribution Board with 3P Isolator (125A Incomer Provision)Special Price EGP 5,538 Regular Price EGP 8,454
Schneider Electric Acti9 Disbo 18-way Panel Bundle + 18 1P MCB iK60, 6 KVA + 3P 63A MCB + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 6,899 Regular Price EGP 15,849
Schneider Electric Acti9 Disbo Vertical TPN 42-way with 3P Isolator 125A Incomer ProvisionSpecial Price EGP 9,491 Regular Price EGP 14,489
Schneider Electric Acti 9 Vertical TPN 54way with 3P isolator 125A incomer provisionSpecial Price EGP 15,987 Regular Price EGP 24,407
Schneider Electric Acti 9 Vertical TPN 36-Way Enclosure with 3P NSX 250A Incomer ProvisionSpecial Price EGP 9,976 Regular Price EGP 15,230
Schneider Electric Acti 9 Vertical TPN 24-Way Enclosure with 3P NSX 250A Incomer ProvisionSpecial Price EGP 7,453 Regular Price EGP 11,379
Schneider Electric Acti9 Disbo Vertical TPN 42way Distribution Board with 3P isolator 63A incomer provisionSpecial Price EGP 5,670 Regular Price EGP 14,193
Schneider Electric Acti 9 Disbo Vertical TPN 54way Distribution Board with 3P isolator 63A incomer provisionSpecial Price EGP 9,570 Regular Price EGP 23,925
This Acti9 product is a flush mounted Vertical TPN distribution board is Fexible and Easy to Install. The rated current can be up to 125A.The number of ways is 18. [Icw] rated short-time withstand current 17kA at 0.25s. [Ipk] rated peak withstand current 34kA. enclosure,pan assembly,earth terminal block,neutral terminal block bar are provided. incomer provision isolator 3P. The dimensions are (W) 425mm x (H) 555mm x (D) 125.9mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of powder coated sheet steel. The degree of protection is IP41. This consumer unit complies with IEC 61439-3 standards. The Acti9 Disbo is a SMART choice, Comprehensive system with Wide range of distribution boards for selection
Specifications:
Main | |
Range | Acti9 Disbo |
Product name | Acti9 Vertical TPN |
Product or component type | Distribution board |
Device application | Low voltage electrical distribution |
Enclosure type | Standard |
Door type | Flat |
Provided equipment | Enclosure |
pan assembly | |
earth terminal block | |
neutral terminal block | |
Colour | White (RAL 9003) |
Complementary | |
[Ie] rated operational current | 125 A |
[Icw] rated short-time withstand current | 17 kA for 0.25 s |
[Ipk] rated peak withstand current | 34 kA |
Enclosure mounting | Flush |
Incomer device | 3P isolator |
Number of ways | 18 ways |
Enclosure material | Powder coated sheet steel |
height | 555 mm |
Width | 425 mm |
Depth | 125 mm |
IP degree of protection | IP41 |
Targeted country | Egypt |
Environment | |
Standards | IEC 61439-3 |
Ambient air temperature for operation | -5…50 °C |
| Weight | 20.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9HV318XI125 |
| Color | White |
| Device Application | Low voltage electrical distribution |
| Depth [cm] | 12.5 |
| Width [cm] | 42.5 |
| Height [cm] | 55.5 |
| Range | Disbo |
| Family | HDCFD |
| Type | Distribution board |
| Enclosure Type | Standard |
| Number of ways | 18 ways |
| Door type | Flat |
| Incomer device | 3P isolator |
| [In] Rated Current | 125 A |
| Fixing Mode | Flush mounting |
| Material | Powder coated sheet steel |
| IP Degree of Protection | IP41 |
