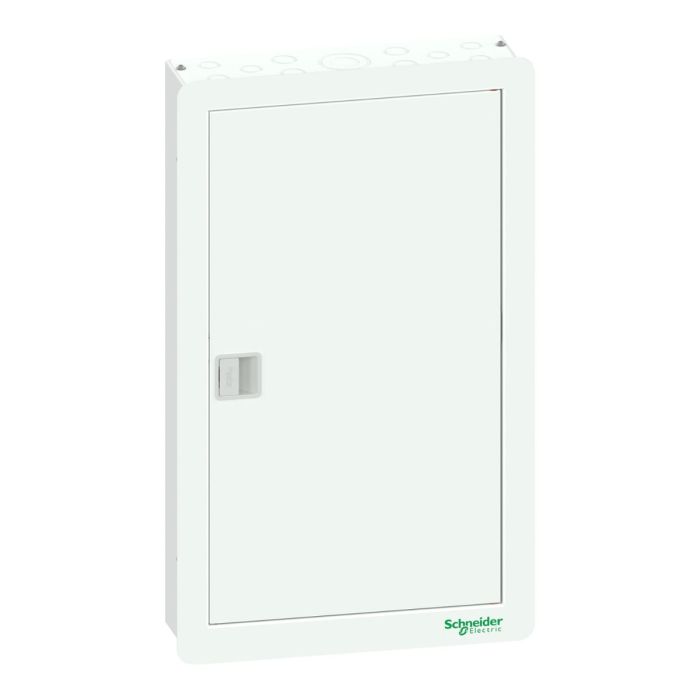

Schneider Electric Acti9 Disbo Vertical TPN 42-way with 3P Isolator 125A Incomer Provision
Enclosure type: Standard
Number of ways: 42 ways
Enclosure material: Powder coated sheet steel
Door Type: Flat
You May Also Like:
Schneider Electric Acti9 Disbo 18way 125A Panel + 19 Resi9 MCBs + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 6,399 Regular Price EGP 15,999
Schneider Electric Finishing Bundle, Acti9 Disbo 18way 125A Panel + 19 Resi9 MCBs 1PSpecial Price EGP 5,999 Regular Price EGP 14,000
Schneider Electric Acti9 Disbo Vertical TPN 18-way with 3P Isolator 125A Incomer ProvisioSpecial Price EGP 4,857 Regular Price EGP 7,415
Schneider Electric Vertical Metal Distribution Board, Easy9, 36 WaysSpecial Price EGP 2,609 Regular Price EGP 4,423
Schneider Electric Acti9 Disbo Vertical TPN 48-way with 3P Isolator 125A Incomer ProvisionSpecial Price EGP 10,110 Regular Price EGP 15,436
Schneider Electric Acti9 Disbo 24way MCB Panel Bundle & 3P MCB Circuit Breaker 4.5 KA + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 9,999 Regular Price EGP 18,809
Schneider Electric Acti9 Disbo Vertical TPN 36-way with 3P Isolator 125A Incomer ProvisionSpecial Price EGP 7,863 Regular Price EGP 12,004
Schneider Electric Acti 9 Vertical TPN 36 way with 3P 125A Dual incomer provisionSpecial Price EGP 6,960 Regular Price EGP 10,627
Schneider Electric Acti 9 Vertical TPN 24-Way Distribution Board with 3P Isolator (125A Incomer Provision)Special Price EGP 5,538 Regular Price EGP 8,454
Schneider Electric Acti9 Disbo 18-way Panel Bundle + 18 1P MCB iK60, 6 KVA + 3P 63A MCB + Free HIMEL Cable Tie, 350x4.8 mmSpecial Price EGP 6,899 Regular Price EGP 15,849
Schneider Electric Acti 9 Vertical TPN 54way with 3P isolator 125A incomer provisionSpecial Price EGP 15,987 Regular Price EGP 24,407
Schneider Electric Acti 9 Vertical TPN 36-Way Enclosure with 3P NSX 250A Incomer ProvisionSpecial Price EGP 9,976 Regular Price EGP 15,230
Schneider Electric Acti 9 Vertical TPN 24-Way Enclosure with 3P NSX 250A Incomer ProvisionSpecial Price EGP 7,453 Regular Price EGP 11,379
Schneider Electric Acti9 Disbo Vertical TPN 42way Distribution Board with 3P isolator 63A incomer provisionSpecial Price EGP 5,670 Regular Price EGP 14,193
Schneider Electric Acti 9 Disbo Vertical TPN 54way Distribution Board with 3P isolator 63A incomer provisionSpecial Price EGP 9,570 Regular Price EGP 23,925
This Acti9 product is a flush mounted Vertical TPN distribution board is Fexible and Easy to Install. The rated current can be up to 125A.The number of ways is 42. [Icw] rated short-time withstand current 17kA at 0.25s. [Ipk] rated peak withstand current 34kA. enclosure,pan assembly,earth terminal block,neutral terminal block bar are provided. incomer provision isolator 3P. The dimensions are (W) 425mm x (H) 715mm x (D) 125.9mm. The color of the consumer unit is white (RAL9003).The enclosure material is made of powder coated sheet steel. The degree of protection is IP41. This consumer unit complies with IEC 61439-3 standards. The Acti9 Disbo is a SMART choice, Comprehensive system with Wide range of distribution boards for selection
Key Features:
42-Way Distribution: This distribution board features 42 ways, allowing you to connect numerous electrical circuits and components.
3P Isolator: It includes a 3P isolator that provides an added layer of safety and control over the electrical supply.
125A Incomer Provision: With a 125A incomer provision, it can handle a substantial amount of electrical load.
Compact and Vertical Design: The vertical orientation of this board helps save space, making it suitable for a wide range of applications.
Durable and Reliable: Schneider Electric is known for its quality and reliability in electrical components, ensuring a long service life.
Benefits:
Efficient Power Distribution: With 42 ways and a 125A incomer provision, this distribution board is well-equipped to efficiently distribute power to various circuits and devices.
Enhanced Safety: The inclusion of a 3P isolator enhances safety by providing a way to isolate power when necessary.
Space-Saving Design: The vertical layout saves valuable space in electrical rooms or enclosures.
Reliability: Schneider Electric is a trusted brand in the electrical industry, ensuring that this distribution board will perform reliably over time.
Specifications:
Main | |
Range | Acti9 Disbo |
Product name | Acti9 Vertical TPN |
Product or component type | Distribution board |
Device application | Low voltage electrical distribution |
Enclosure type | Standard |
Door type | Flat |
Provided equipment | Enclosure |
pan assembly | |
earth terminal block | |
neutral terminal block | |
Colour | White (RAL 9003) |
Complementary | |
[Ie] rated operational current | 125 A |
[Icw] rated short-time withstand current | 17 kA for 0.25 s |
[Ipk] rated peak withstand current | 34 kA |
Enclosure mounting | Flush |
Incomer device | 3P isolator |
Number of ways | 42 ways |
Enclosure material | Powder coated sheet steel |
height | 715 mm |
Width | 425 mm |
Depth | 125 mm |
IP degree of protection | IP41 |
Targeted country | Egypt |
Environment | |
Standards | IEC 61439-3 |
Ambient air temperature for operation | -5…50 °C |
| Weight | 25.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9HV342XI125 |
| Color | White |
| Device Application | Low voltage electrical distribution |
| Depth [cm] | 12.5 |
| Width [cm] | 42.5 |
| Height [cm] | 71.5 |
| Range | Disbo |
| Family | HDCFD |
| Type | Distribution board |
| Enclosure Type | Standard |
| Number of ways | 42 ways |
| Door type | Flat |
| Incomer device | 3P isolator |
| [In] Rated Current | 125 A |
| Fixing Mode | Flush mounting |
| Material | Powder coated sheet steel |
| IP Degree of Protection | IP41 |
