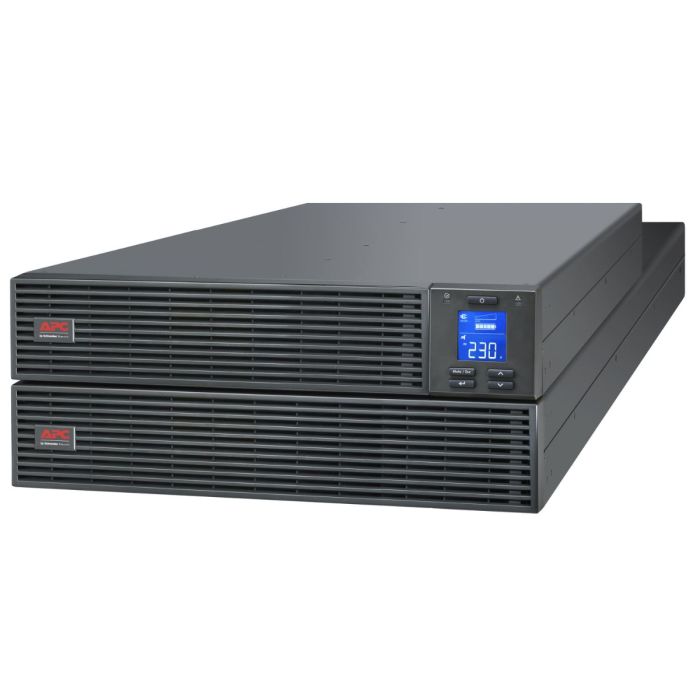

APC Easy UPS On-Line SRV 10000VA Rack Module 230V

Main

Run time for load

2min 52s

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

10000 W

Rated power in VA

10000 VA

Output connector type

Hard wire 3-wire (1P + N + E) 1

Number of rack unit

4U

Provided equipment

1 USB cable

1 RS-232 configuration cable

2 rack mounting brackets

1 external battery pack

1 battery cable

user manual

Range of product

Easy UPS On-Line

Batteries & Runtime

Battery type

Lead-acid battery

Battery voltage

192 V

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

5 h

Battery life

3…5 year(s)

Battery charger power

235 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Physical

Colour

Black (RAL 7010)

Height

17.3 cm

Width

43.8 cm

Depth

71.0 cm

Net weight

68 kg

mounting location

Front

Mounting preference

Lower

mounting mode

Rack-mounted with kit

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

110...300 V 60 % load

176...300 V full load

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

10000 VA

Maximum configurable power in W

10000 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

1%

UPS type

Double conversion online

Wave type

Sine wave

Efficiency

94 % (full load)

Bypass type

Internal bypass (automatic and manual)

Crest factor

3:1

Conformance

product certifications

CE

UKCA

EAC

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…60 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…15000 m

acoustic level

58 dB

Heat dissipation

2128 Btu/h

IP degree of protection

IP20

Communications & Management

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency power off

Yes

Free slots

1

Control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rate

600 J
