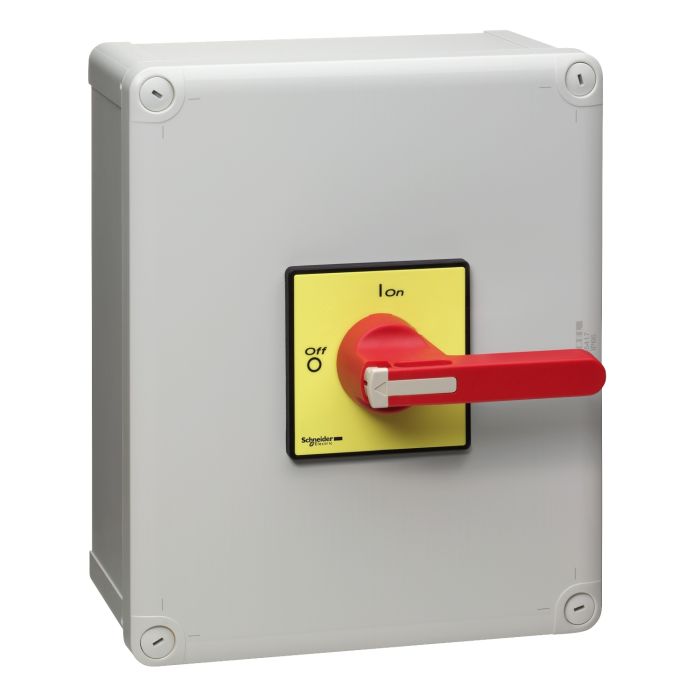

TeSys Vario Enclosed Emergency Switch-Disconnector, 100A, IP65, Long Handle, Schneider Electric
Out of stock
SKU
VCF5GEN
Special Price EGP 15,819 Regular Price EGP 28,762
Quick Overview
Range of product: TeSys
Product type: Enclosed emergency stop switch disconnector
Type of operator: Long handle
Poles: 3P
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
Introducing the Schneider Electric VCF5GEN TeSys Vario Enclosed Emergency Switch-Disconnector, a dependable solution designed to enhance safety and control in various applications. This enclosed switch-disconnector offers a 100A rating and features an IP65 protection rating, making it suitable for demanding environments.
Key Features:
Reliable Safety: The TeSys Vario Emergency Switch-Disconnector ensures the safety of personnel and equipment.
High Current Rating: With a 100A current rating, it can handle a wide range of electrical requirements.
IP65 Protection: The enclosure is rated IP65, providing protection against dust and water ingress.
Long Handle: Equipped with a long handle for easy operation.
Technical Specifications:
Current Rating: 100A
Protection Rating: IP65
Handle Type: Long Handle
| Specifications | |
Main | |
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| control type | Rotary handle |
| Type of operator | Long handle |
| handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Complementary | |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 100 A |
| [Ie] rated operational current | 68.5 A (AC-23A) at 400 V |
| Rated operational power in W | 37 kW at 400 V (AC-23) |
| 30 kW at 400 V (AC-3) | |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 1250 A at 400 V AC-21A |
| 1250 A at 400 V AC-22A | |
| 1250 A at 400 V AC-23A | |
| [Icm] rated short-circuit making capacity | 2.8 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 1500 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 125 A aM |
| 10 kA at 400 V - associated fuse 125 A gG | |
| Breaking capacity | 1000 A at 400 V (AC-21A) |
| 1000 A at 400 V (AC-22A) | |
| 1000 A at 400 V (AC-23A) | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles AC-21 |
| 30000 cycles DC-1...5 | |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals70 mm² - flexible - with cable end |
| Screw clamp terminals95 mm² - solid | |
| Tightening torque | 22.6 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 90 x 90 mm |
| height | 291 mm |
| Width | 241 mm |
| Depth | 191 mm |
| Net weight | 2.19 kg |
| Environment | |
| standards | IEC 60947-4-1 |
| IEC 60204 | |
| Protective treatment | TC |
| Weight | 2.190000 |
|---|---|
| Brand | Schneider Electric |
| Model | VCF5GEN |
| Depth [cm] | 191 |
| Width [cm] | 241 |
| Height [cm] | 291 |
| Range | Tesys D |
| Family | PPCTR |
