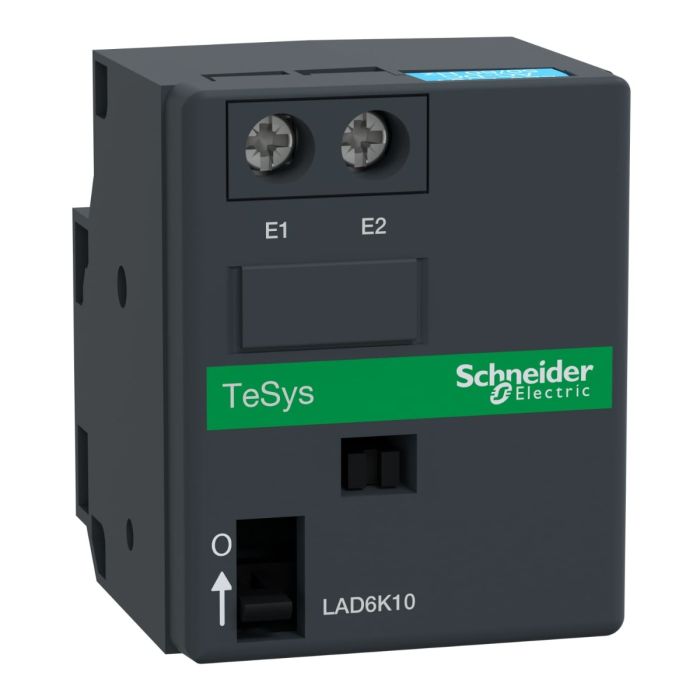

Schneider Electric Contactor Mechanical Latch Contact Block
Range of product: TeSys
Product type: Terminal block
Mounting location: Front side
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Time Delay Auxiliary Contact Block, TeSys D, 1NO + 1NC, on delay 1-30 s, front mounting, screw terminalsSpecial Price EGP 2,787 Regular Price EGP 5,161
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 220-240V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Key Features:
Contactor Control: The LAD6K10M contact block is used to control contactors in electrical systems.
Mechanical Latch: It features a mechanical latch mechanism that ensures stable and secure operation.
Industrial Applications: Suitable for a wide range of industrial applications requiring contactor control.
Compatibility: Designed for use with Schneider Electric contactor products, ensuring compatibility and reliable performance.
Specifications:
| Main | |
| Range | TeSys |
| Product or component type | Mechanical latch block |
| Product compatibility | LC1D09...D38 AC/DC |
| LC1DT20...DT40 AC/DC | |
| LC1D40A...D80A 3 phases AC/DC | |
| LC1DT60A 3 phases + neutral AC/DC | |
| LC1DT80A 3 phases + neutral AC/DC | |
| [Uc] control circuit voltage | 220/240 V AC 50/60 Hz |
| 220/240 V DC | |
| Complementary | |
| Mounting location | Front side |
| Tripping control | Electrical |
| Manual | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Power required in VA | 25 for AC circuit |
| Power required in W | 30 W for DC circuit |
| Mechanical durability | 500000 cycles |
| Maximum operating rate | 1200 cyc/h |
| On-load factor | 10% |
| Net weight | 0.07 kg |
| Environment | |
| product certifications | UL |
| CSA | |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | |
| Weight | 0.098000 |
|---|---|
| Brand | Schneider Electric |
| Model | LAD6K10M |
| Color | Black |
| Range | Tesys D |
| Family | PPCTR |
| Type | Contactor |
| IP Degree of Protection | IP2X |
