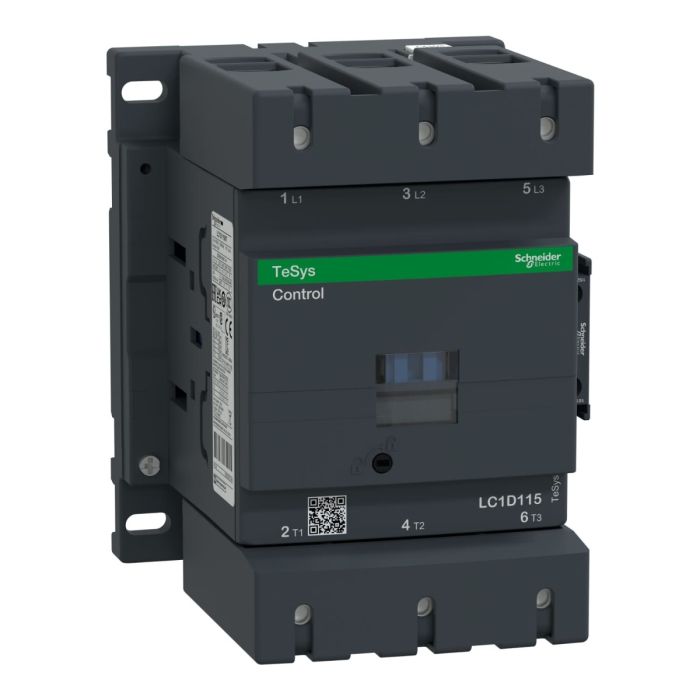

main product photo

Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil

Be the first to review this product
In stock
SKU
LC1D115D7
Schneider Electric
Special Price EGP 15,802 Regular Price EGP 29,264
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil is available to buy in increments of 1
Quick Overview

Range: TeSys
Product type: Contactor
Contactor application: Resistive load - Motor control
Poles description: 3P

TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V. It provides with 42V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals.

Specifications:

Main
RangeTeSys
Range of productTeSys Deca
Product or component typeContactor
Device short nameLC1D
Contactor applicationMotor control
 Resistive load
Utilisation categoryAC-1
 AC-3
 AC-4
 AC-3e
Poles description3P
[Ue] rated operational voltagePower circuit: <= 1000 V AC 25...400 Hz
 Power circuit: <= 300 V DC
[Ie] rated operational current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Uc] control circuit voltage42 V AC 50/60 Hz
Complementary
Motor power kW30 kW at 220...230 V AC 50/60 Hz (AC-3)
 55 kW at 380...400 V AC 50/60 Hz (AC-3)
 59 kW at 415...440 V AC 50/60 Hz (AC-3)
 75 kW at 500 V AC 50/60 Hz (AC-3)
 80 kW at 660...690 V AC 50/60 Hz (AC-3)
 65 kW at 1000 V AC 50/60 Hz (AC-3)
 18.5 kW at 400 V AC 50/60 Hz (AC-4)
 30 kW at 220...230 V AC 50/60 Hz (AC-3e)
 55 kW at 380...400 V AC 50/60 Hz (AC-3e)
 59 kW at 415...440 V AC 50/60 Hz (AC-3e)
 75 kW at 500 V AC 50/60 Hz (AC-3e)
 80 kW at 660...690 V AC 50/60 Hz (AC-3e)
 65 kW at 1000 V AC 50/60 Hz (AC-3e)
Motor power hp30 hp at 200/208 V AC 50/60 Hz for 3 phases motors
 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors
 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors
 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility codeLC1D
Pole contact composition3 NO
Protective coverWith
[Ith] conventional free air thermal current200 A (at 60 °C) for power circuit
Irms rated making capacity1260 A at 440 V for power circuit conforming to IEC 60947
 140 A AC for signalling circuit conforming to IEC 60947-5-1
 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current250 A 40 °C - 10 min for power circuit
 550 A 40 °C - 1 min for power circuit
 950 A 40 °C - 10 s for power circuit
 1100 A 40 °C - 1 s for power circuit
 100 A - 1 s for signalling circuit
 120 A - 500 ms for signalling circuit
 140 A - 100 ms for signalling circuit
Associated fuse rating250 A gG at <= 690 V coordination type 1 for power circuit
 200 A gG at <= 690 V coordination type 2 for power circuit
 10 A gG for signalling circuit
Average impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole24 W AC-1
 7.9 W AC-3
 7.9 W AC-3e
[Ui] rated insulation voltagePower circuit: 600 V CSA certified
 Power circuit: 600 V UL certified
 Power circuit: 1000 V conforming to IEC 60947-4-1
 Signalling circuit: 690 V conforming to IEC 60947-1
 Signalling circuit: 600 V CSA certified
 Signalling circuit: 600 V UL certified
Overvoltage categoryIII
pollution degree3
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947
Safety reliability levelB10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
 B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability8 Mcycles
Electrical durability0.8 Mcycles 200 A AC-1 at Ue <= 440 V
 0.95 Mcycles 115 A AC-3 at Ue <= 440 V
 0.95 Mcycles 115 A AC-3e at Ue <= 440 V
Control circuit typeAC at 50/60 Hz
Coil technologyBuilt-in bidirectional peak limiting diode suppressor
Control circuit voltage limits0.3...0.5 Uc (-40…70 °C):drop-out AC 50/60 Hz
 0.8...1.15 Uc (-40…55 °C):operational AC 50/60 Hz
 1...1.15 Uc (55…70 °C):operational AC 50/60 Hz
Inrush power in VA280…350 VA 60 Hz cos phi 0.8 (at 20 °C)
 280…350 VA 50 Hz cos phi 0.8 (at 20 °C)
Hold-in power consumption in VA2…18 VA 60 Hz cos phi 0.3 (at 20 °C)
 2…18 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation3…8 W at 50/60 Hz
Operating time6...20 ms opening
 20...50 ms closing
Maximum operating rate2400 cyc/h at 60 °C
Connections - terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
 Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
 Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end
 Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
 Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end
 Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
 Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end
 Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end
 Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end
 Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end
 Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end
 Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end
Tightening torqueControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
 Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
 Power circuit: 12 N.m - on connector hexagonal screw head 4 mm
 Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary contact composition1 NO + 1 NC
Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency25...400 Hz
Minimum switching voltage17 V for signalling circuit
Minimum switching current5 mA for signalling circuit
Insulation resistance> 10 MOhm for signalling circuit
Non-overlap time1.5 ms on de-energisation between NC and NO contact
 1.5 ms on energisation between NC and NO contact
Mounting supportPlate
 Rail
Environment
StandardsCSA C22.2 No 14
 EN 60947-4-1
 IEC 60947-4-1
 IEC 60335-1:Clause 30.2
 IEC 60335-2-40:Annex JJ
 UL 60335-2-40:Annex JJ
 UL 60947-4-1
 CSA C22.2 No 60947-4-1
 JIS C8201-4-1
Product certificationsUL
 CSA
 CCC
 UKCA
 CE
 EAC
 Marine
IP degree of protectionIP20 front face conforming to IEC 60529
Protective treatmentTH conforming to IEC 60068-2-30
Climatic withstandconforming to IACS E10 exposure to damp heat
 conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device-40…60 °C
 60…70 °C with derating
Operating altitude0...3000 m
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Mechanical robustnessVibrations contactor open (2 Gn, 5...300 Hz)
 Vibrations contactor closed (4 Gn, 5...300 Hz)
 Shocks contactor closed (15 Gn for 11 ms)
 Shocks contactor open (6 Gn for 11 ms)
Height158 mm
Width120 mm
Depth136 mm
More Information
Weight3.000000
BrandSchneider Electric
ModelLC1D115D7
RangeTesys D
FamilyPPCTR
Poles3P
IP Degree of ProtectionIP20
