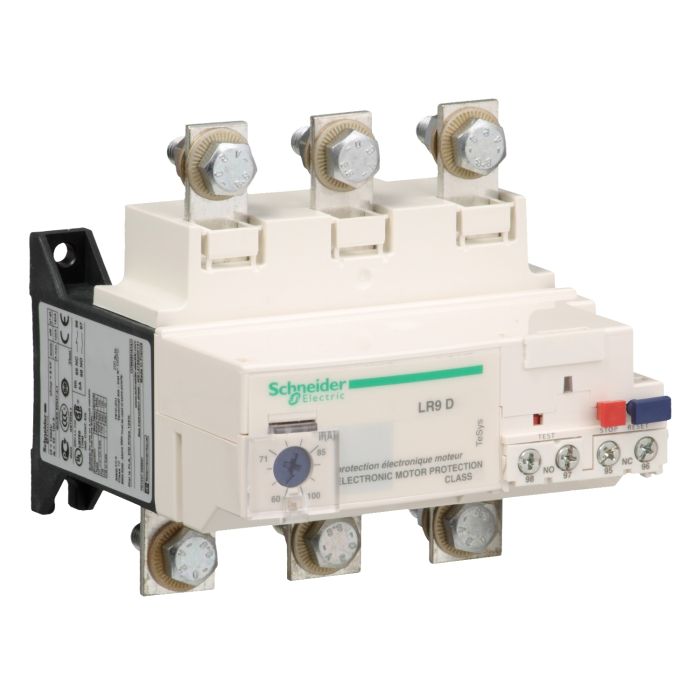

TeSys LRD Thermal Overload Relay, 60-100 Amps, Class 10, Schneider Electric
Out of stock
SKU
LR9D5367
Special Price EGP 14,540 Regular Price EGP 26,437
Quick Overview
Range of product: TeSys
Product type: Electronic thermal overload relay
Relay application: Motor protection
Control type: Red push-button stop,Blue push-button reset
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
The Schneider Electric LR9D5367 TeSys LRD Thermal Overload Relay is designed to provide efficient protection for motors and electrical equipment in industrial applications. With a current rating of 60-100 amps and a Class 10 rating, it ensures that motors are safeguarded from overcurrent and overload conditions, preventing damage and downtime.
Key Features:
Reliable Protection: This thermal overload relay offers reliable protection by quickly detecting overcurrent and overload situations, thereby preventing potential motor damage.
Wide Current Range: With a current range of 60-100 amps, it is suitable for various applications and motor sizes.
Adjustable Settings: The relay's settings can be adjusted to meet specific application requirements, ensuring precise protection.
Schneider Electric Quality: As a product from Schneider Electric, you can trust in its quality and reliability in industrial automation and control solutions.
Product Specifications:
Rated Current Range: 60-100 Amps
Class: Class 10
| Specifications | |
Main | |
| Range | TeSys |
| Product name | TeSys LRD |
| TeSys Deca | |
| Product or component type | Electronic thermal overload relay |
| Device short name | LR9D |
| Relay application | Motor protection |
| Product compatibility | LC1D115 |
| LC1D150 | |
| NSX circuit breaker | |
| Network type | AC |
| Thermal overload class | Class 10 conforming to IEC 60947-4-1 |
| Signalling function | Alarm |
| Thermal protection adjustment range | 60…100 A |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Power circuit: 600 V conforming to CSA | |
| Power circuit: 600 V conforming to UL | |
| Complementary | |
| Network frequency | 50...60 Hz |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 17…32 V |
| Mounting support | Under contactor |
| Rail | |
| Tripping threshold | 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1 |
| 1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1 | |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit |
| 4 A BS for signalling circuit | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop |
| Blue push-button: reset | |
| Temperature compensation | -20…60 °C |
| Switching capacity in mA | 0...150 mA |
| Maximum voltage drop | <2.5 V closed state |
| Connections - terminals | Power circuit: bars |
| Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Tightening torque | Alarm circuit: 0.45 N.m - on screw clamp terminals |
| Power circuit: 18 N.m - on bars M8 | |
| Control circuit: 1.2 N.m - on screw clamp terminals | |
| height | 118 mm |
| Width | 115 mm |
| Depth | 125 mm |
| Net weight | 0.885 kg |
| Environment | |
| Climatic withstand | Conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Operating altitude | <= 2000 m without derating |
| Mechanical robustness | Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7 | |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| standards | EN/IEC 60947-4-1 |
| EN/IEC 60947-5-1 | |
| UL 60947-4-1 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-4-1 | |
| CSA C22.2 No 60947-5-1 | |
| GB/T 14048.4 | |
| GB/T 14048.5 | |
| product certifications | UL |
| CSA | |
| CCC | |
| UKCA |
| Weight | 0.885000 |
|---|---|
| Brand | Schneider Electric |
| Model | LR9D5367 |
| Depth [cm] | 12.5 |
| Width [cm] | 11.5 |
| Height [cm] | 11.8 |
| Range | Tesys D |
| Family | PPCTR |
