Schneider Electric TeSys LRD Thermal Overload Relay, 55-70 A, Class 10A
Range: TeSys
Product type: Differential thermal overload relay
Relay application: Motor protection
Control type: Push-button red stop, Push-button Blue reset
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001

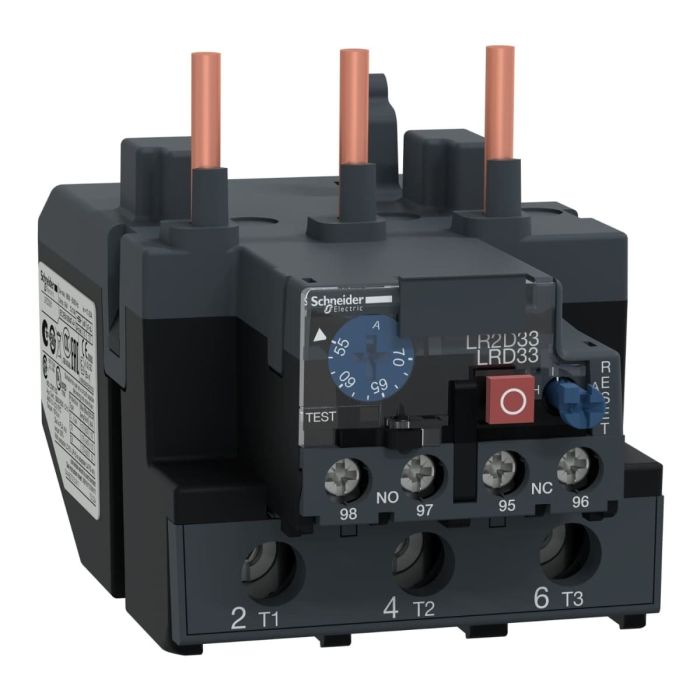

TeSys LRD thermal overload relay, 70A/1000V, thermal setting range 55-70A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Key Features:
Motor Protection: The LRD3361 offers essential motor protection, preventing overheating and potential motor damage.
Class 10A Rating: Classified as Class 10A, this thermal overload relay guarantees dependable protection for motors of various sizes.
Wide Current Range: With a rated current range of 55-70 A, it accommodates diverse motor sizes and applications.
Specifications:
Main | |
| Range | TeSys |
| Product name | TeSys LRD |
| TeSys Deca | |
| Product or component type | Differential thermal overload relay |
| device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D95 |
| LC1D80 | |
| Network type | DC |
| AC | |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 55…70 A |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Power circuit: 600 V conforming to CSA | |
| Power circuit: 600 V conforming to UL | |
| Complementary | |
| Network frequency | 0...400 Hz |
| Mounting support | Plate, with specific accessories |
| Rail, with specific accessories | |
| Under contactor | |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 0.72 A at 500 V AC-15 for signalling circuit |
| 0.06 A at 440 V DC-13 for signalling circuit | |
| [Ue] rated operational voltage | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit |
| 4 A BS for signalling circuit | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop |
| Blue push-button: reset | |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end |
| Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end | |
| Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end | |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals |
| Power circuit: 9 N.m - on screw clamp terminals | |
| height | 81 mm |
| Width | 70 mm |
| Depth | 115 mm |
| Net weight | 0.51 kg |
| Environment | |
| Climatic withstand | Conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 |
| Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | |
| Dielectric strength | 2.2 kV at 50 Hz conforming to IEC 60947-1 |
| standards | EN/IEC 60947-4-1 |
| EN/IEC 60947-5-1 | |
| UL 60947-4-1 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-4-1 | |
| CSA C22.2 No 60947-5-1 | |
| GB/T 14048.4 | |
| GB/T 14048.5 | |
| EN 50495 | |
| product certifications | IEC |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| ATEX INERIS | |
| UKCA |
| Weight | 0.510000 |
|---|---|
| Brand | Schneider Electric |
| Model | LRD3361 |
| Depth [cm] | 11.5 |
| Width [cm] | 7 |
| Height [cm] | 8.1 |
| Range | Tesys D |
| Family | PPCTR |
| IP Degree of Protection | IP20 |
