Schneider Electric Tesys-F Contactor, 3P, 3-NO, AC3, 440V, 500A, Coil 220V AC
Out of stock
SKU
LC1F500M7
Special Price EGP 150,398 Regular Price EGP 273,452
Quick Overview
Range of product: TeSys
Product type: Contactor
Poles: 3P
Contactor application: Resistive load, Motor control
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001

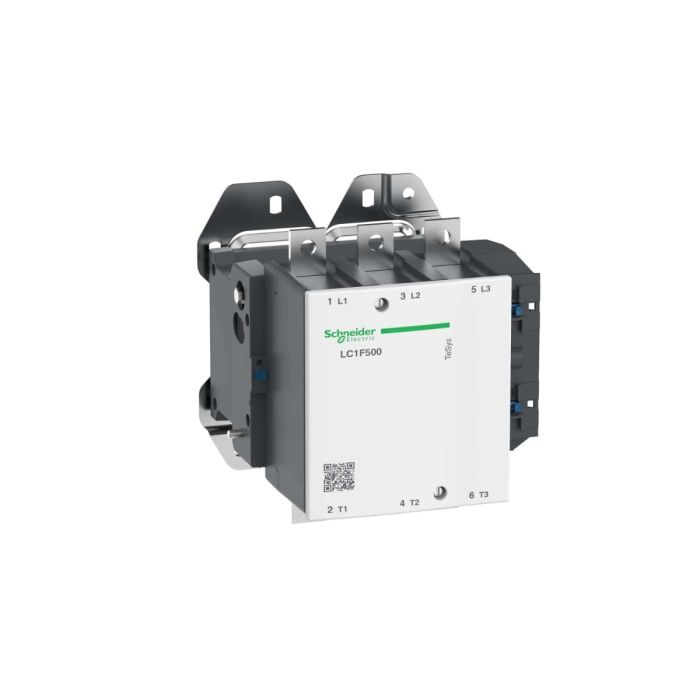

The Schneider Electric LC1F500M7 TeSys F Contactor is a robust and high-capacity switching device designed for controlling electric motors and power circuits. With three poles, three normally open (NO) contacts, and a 500 A AC3 rated current at 440 V, this contactor is suitable for a wide range of industrial applications. The 220 V AC coil ensures precise and efficient operation.
Key Features:
High-Performance Contactor: Schneider Electric's LC1F500M7 TeSys F Contactor is built for heavy-duty tasks, making it ideal for challenging industrial environments.
Three Normally Open Contacts: This contactor offers three NO contacts, enhancing its versatility in controlling motors and equipment.
Reliable and Durable: Schneider Electric is known for producing high-quality and dependable electrical components, ensuring the longevity and efficiency of this contactor.
Wide Range of Applications: The 500 A AC3 rated current makes it suitable for various industrial settings.
Technical Specifications:
Pole Configuration: 3P (Three Poles)
Rated Current AC3: 500 A
Net weight: 11.35 kg
Rated Operational Voltage AC3: 440 V
Coil Voltage: 220 V AC
| Specifications | |
Main | |
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Motor control |
| Resistive load | |
| utilisation category | AC-1 |
| AC-4 | |
| AC-3 | |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz |
| <= 460 V DC | |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 700 A (at <40 °C) at <= 440 V AC AC-1 |
| 500 A (at <55 °C) at <= 440 V AC AC-3 | |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| Rated breaking capacity | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 4200 A 40 °C - 10 s |
| 3200 A 40 °C - 30 s | |
| 2400 A 40 °C - 1 min | |
| 1500 A 40 °C - 3 min | |
| 1200 A 40 °C - 10 min | |
| Associated fuse rating | 500 A aM at <= 440 V |
| 800 A gG at <= 440 V | |
| Average impedance | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 |
| 1500 V conforming to VDE 0110 group C | |
| Power dissipation per pole | 88 W AC-1 |
| 45 W AC-3 | |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 250 kW at 380...400 V AC 50/60 Hz (AC-3) |
| 280 kW at 415 V AC 50/60 Hz (AC-3) | |
| 295 kW at 440 V AC 50/60 Hz (AC-3) | |
| 355 kW at 500 V AC 50/60 Hz (AC-3) | |
| 335 kW at 660...690 V AC 50/60 Hz (AC-3) | |
| 335 kW at 1000 V AC 50/60 Hz (AC-3) | |
| 147 kW at 220...230 V AC 50/60 Hz (AC-3) | |
| 80 kW at 400 V AC 50/60 Hz (AC-4) | |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) |
| Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) | |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1100 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 18 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 40...65 ms closing |
| 100...170 ms opening | |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end |
| Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | |
| Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | |
| Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | |
| Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm | |
| Power circuit: lugs-ring terminals 2 cable(s) 240 mm² | |
| Power circuit: bolted connection | |
| Tightening torque | Control circuit: 1.2 N.m |
| Power circuit: 35 N.m | |
| mounting support | Plate |
| Heat dissipation | 18 W |
| motor power range | 250…500 kW at 380…440 V 3 phases |
| 110…220 kW at 380…440 V 3 phases | |
| 110…220 kW at 200…240 V 3 phases | |
| 250…500 kW at 480…500 V 3 phases | |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| standards | EN 60947-4-1 |
| IEC 60947-1 | |
| EN 60947-1 | |
| JIS C8201-4-1 | |
| IEC 60947-4-1 | |
| product certifications | CSA |
| CB | |
| RMRoS | |
| ABS | |
| LROS (Lloyds register of shipping) | |
| UL | |
| RINA | |
| BV | |
| DNV | |
| UKCA | |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| Environment | |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 |
| IP20 front face with shrouds conforming to VDE 0106 | |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| height | 238 mm |
| Width | 233 mm |
| Depth | 232 mm |
| Operating altitude | 3000 m without derating |
| Weight | 11.350000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1F500M7 |
| Depth [cm] | 23.2 |
| Width [cm] | 11.35 |
| Height [cm] | 23.8 |
| Range | Tesys D |
| Family | PPCTR |
| Poles | 3P |
