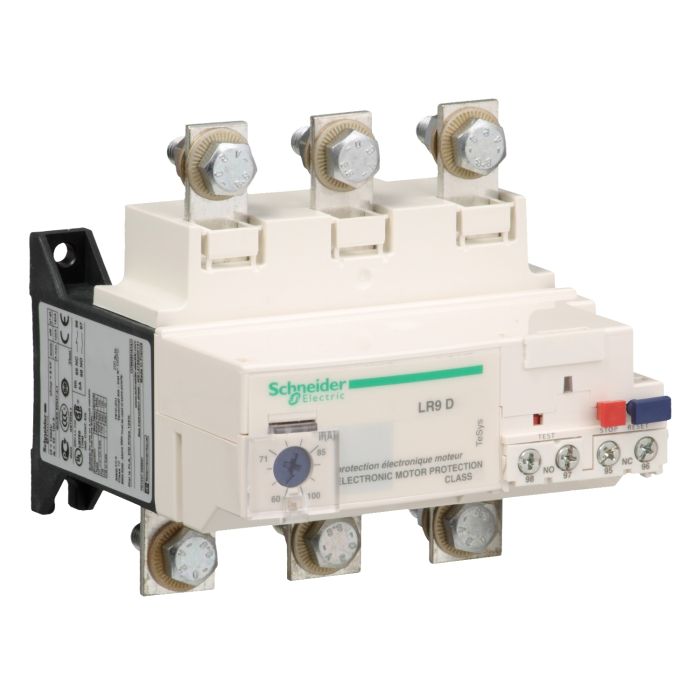

TeSys Deca Thermal Overload Relay, 90-150 A, Class 20, Schneider Electric
Out of stock
SKU
LR9D5569
Special Price EGP 17,838 Regular Price EGP 32,433
Quick Overview
Range of product: TeSys
Product type: Electronic thermal overload relay
Relay application: Motor protection
Control type: Red push-button stop,Blue push-button reset
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
The Schneider Electric LR9D5569 TeSys Deca Thermal Overload Relay is a highly reliable and advanced protection device designed to safeguard motors and electrical equipment from overcurrent and overload conditions. With a Class 20 rating and a current range of 90-150 A, this thermal overload relay provides precise protection for a wide range of motor sizes and applications.
Key Features:
Advanced Protection: The TeSys Deca Thermal Overload Relay offers advanced protection against overcurrent and overload conditions, ensuring the safety and longevity of your motors and equipment.
Wide Current Range: With a current range of 90-150 A, it's suitable for various motor sizes and applications.
Precise Adjustment: The relay provides precise current adjustment to meet the specific requirements of your equipment.
Reliable Performance: Schneider Electric's reputation for quality and reliability ensures that this relay performs consistently under challenging conditions.
Product Specifications:
Rated Current Range: 90-150 A
Class: Class 20
| Specifications | |
Main | |
| Range | TeSys |
| Product name | TeSys LRD |
| TeSys Deca | |
| Product or component type | Electronic thermal overload relay |
| device short name | LR9D |
| Relay application | Motor protection |
| Product compatibility | NSX circuit breaker |
| LC1D115 | |
| LC1D150 | |
| Network type | AC |
| Thermal overload class | Class 20 conforming to IEC 60947-4-1 |
| Signalling function | Alarm |
| Thermal protection adjustment range | 90…150 A |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Power circuit: 600 V conforming to CSA | |
| Power circuit: 600 V conforming to UL | |
| Complementary | |
| Network frequency | 50...60 Hz |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 17…32 V |
| Mounting support | Under contactor |
| Rail | |
| Tripping threshold | 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1 |
| 1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1 | |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit |
| 4 A BS for signalling circuit | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop |
| Blue push-button: reset | |
| Temperature compensation | -20…60 °C |
| Switching capacity in mA | 0...150 mA |
| Maximum voltage drop | <2.5 V closed state |
| Connections - terminals | Power circuit: bars |
| Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end | |
| Tightening torque | Alarm circuit: 0.45 N.m - on screw clamp terminals |
| Power circuit: 18 N.m - on bars M8 | |
| Control circuit: 1.2 N.m - on screw clamp terminals | |
| height | 118 mm |
| Width | 115 mm |
| Depth | 125 mm |
| Net weight | 0.885 kg |
| Environment | |
| Climatic withstand | Conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Operating altitude | <= 2000 m without derating |
| Mechanical robustness | Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7 | |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| standards | EN/IEC 60947-4-1 |
| EN/IEC 60947-5-1 | |
| UL 60947-4-1 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-4-1 | |
| CSA C22.2 No 60947-5-1 | |
| GB/T 14048.4 | |
| GB/T 14048.5 | |
| product certifications | UL |
| CSA | |
| CCC |
UKCA
| Weight | 0.885000 |
|---|---|
| Brand | Schneider Electric |
| Model | LR9D5569 |
| Depth [cm] | 12.5 |
| Width [cm] | 11.5 |
| Height [cm] | 11.8 |
| Range | Tesys D |
| Family | PPCTR |
