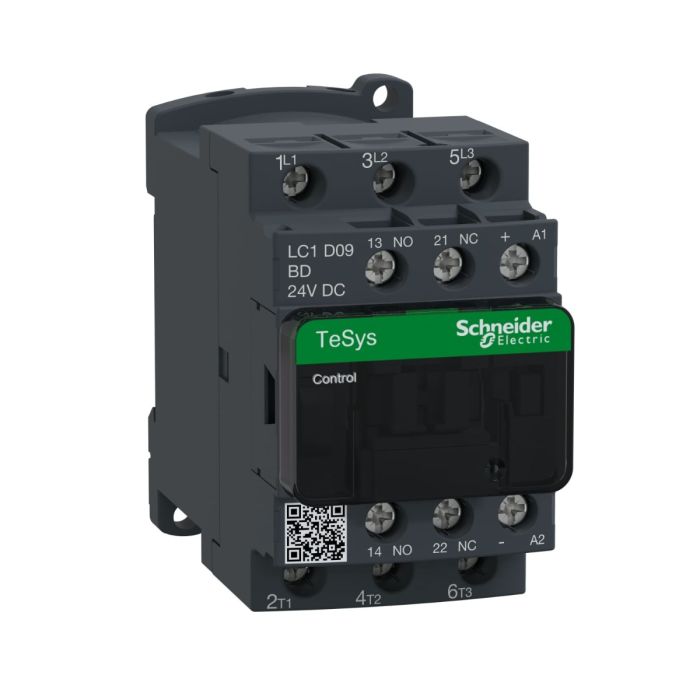

Schneider Electric Tesys D Contactor, 3P3 NO (3 Normally Open), AC3 440V, 9A, 24V DC Coil
Out of stock
SKU
LC1D09BD
Special Price EGP 1,926 Regular Price EGP 3,567
Quick Overview
Range of product: TeSys Deca
Product type: Contactor
Contactor application: Motor control,Resistive load
Poles: 3P
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Key Features:
3 Normally Open Contacts: This contactor features 3 Normally Open (3 NO) contacts for precise control of circuits and devices.
AC3 Rating: With an AC3 rating of 440V and a current rating of 9A, this contactor can handle a variety of electrical loads.
24V DC Coil: The 24V DC coil ensures reliable and efficient activation of the contactor.
Durable Build: Built to withstand the demands of industrial environments, this contactor is designed for longevity.
Specifications:
Main | |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| device short name | LC1D |
| contactor application | Motor control |
| Resistive load | |
| utilisation category | AC-4 |
| AC-1 | |
| AC-3 | |
| AC-3e | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| Power circuit: <= 300 V DC | |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | |
| 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz (AC-3) |
| 4 kW at 380...400 V AC 50/60 Hz (AC-3) | |
| 4 kW at 415...440 V AC 50/60 Hz (AC-3) | |
| 5.5 kW at 500 V AC 50/60 Hz (AC-3) | |
| 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) | |
| 2.2 kW at 400 V AC 50/60 Hz (AC-4) | |
| 2.2 kW at 220...230 V AC 50/60 Hz (AC-3e) | |
| 4 kW at 380...400 V AC 50/60 Hz (AC-3e) | |
| 4 kW at 415...440 V AC 50/60 Hz (AC-3e) | |
| 5.5 kW at 500 V AC 50/60 Hz (AC-3e) | |
| 5.5 kW at 660...690 V AC 50/60 Hz (AC-3e) | |
| Motor power hp | 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors |
| 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors | |
| 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors | |
| 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors | |
| 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors | |
| 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors | |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Contact compatibility | M4 |
| Protective cover | With |
| [Ith] conventional free air thermal current | 25 A (at 60 °C) for power circuit |
| 10 A (at 60 °C) for signalling circuit | |
| Irms rated making capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| 140 A AC for signalling circuit conforming to IEC 60947-5-1 | |
| 250 A DC for signalling circuit conforming to IEC 60947-5-1 | |
| Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit |
| 210 A 40 °C - 1 s for power circuit | |
| 30 A 40 °C - 10 min for power circuit | |
| 61 A 40 °C - 1 min for power circuit | |
| 100 A - 1 s for signalling circuit | |
| 120 A - 500 ms for signalling circuit | |
| 140 A - 100 ms for signalling circuit | |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| 25 A gG at <= 690 V coordination type 1 for power circuit | |
| 20 A gG at <= 690 V coordination type 2 for power circuit | |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole | 1.56 W AC-1 |
| 0.2 W AC-3 | |
| 0.2 W AC-3e | |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 |
| Power circuit: 600 V CSA certified | |
| Power circuit: 600 V UL certified | |
| Signalling circuit: 690 V conforming to IEC 60947-1 | |
| Signalling circuit: 600 V CSA certified | |
| Signalling circuit: 600 V UL certified | |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 | |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 0.6 Mcycles 25 A AC-1 at Ue <= 440 V |
| 2 Mcycles 9 A AC-3 at Ue <= 440 V | |
| 2 Mcycles 9 A AC-3e at Ue <= 440 V | |
| Control circuit type | DC standard |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC |
| 0.7...1.25 Uc (-40…60 °C):operational DC | |
| 1...1.25 Uc (60…70 °C):operational DC | |
| Inrush power in W | 5.4 W (at 20 °C) |
| Hold-in power consumption in W | 5.4 W at 20 °C |
| Operating time | 53.55...72.45 ms closing |
| 16...24 ms opening | |
| Time constant | 28 ms |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end |
| Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Tightening torque | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | |
| Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| type mirror contact 1 NC conforming to IEC 60947-4-1 | |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact |
| 1.5 ms on energisation between NC and NO contact | |
| mounting support | Plate |
| Rail | |
| Environment | |
| Standards | CSA C22.2 No 14 |
| EN 60947-4-1 | |
| EN 60947-5-1 | |
| IEC 60947-4-1 | |
| IEC 60947-5-1 | |
| UL 508 | |
| IEC 60335-1 | |
| product certifications | LROS (Lloyds register of shipping) |
| CSA | |
| UL | |
| GOST | |
| DNV | |
| CCC | |
| GL | |
| BV | |
| RINA | |
| UKCA | |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | Conforming to IACS E10 exposure to damp heat |
| conforming to IEC 60947-1 Annex Q category D exposure to damp heat | |
| Permissible ambient air temperature around the device | -40…60 °C |
| 60…70 °C with derating | |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) |
| Vibrations contactor closed (4 Gn, 5...300 Hz) | |
| Shocks contactor open (10 Gn for 11 ms) | |
| Shocks contactor closed (15 Gn for 11 ms) | |
| height | 77 mm |
| Width | 45 mm |
| Depth | 95 mm |
| Net weight | 0.48 kg |
| Weight | 4.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D09BD |
| Depth [cm] | 9.5 |
| Width [cm] | 0.48 |
| Height [cm] | 7.7 |
| Range | Tesys D |
| Family | PPCTR |
| Type | Contactor |
| Poles | 3P |
| IP Degree of Protection | IP20 |
