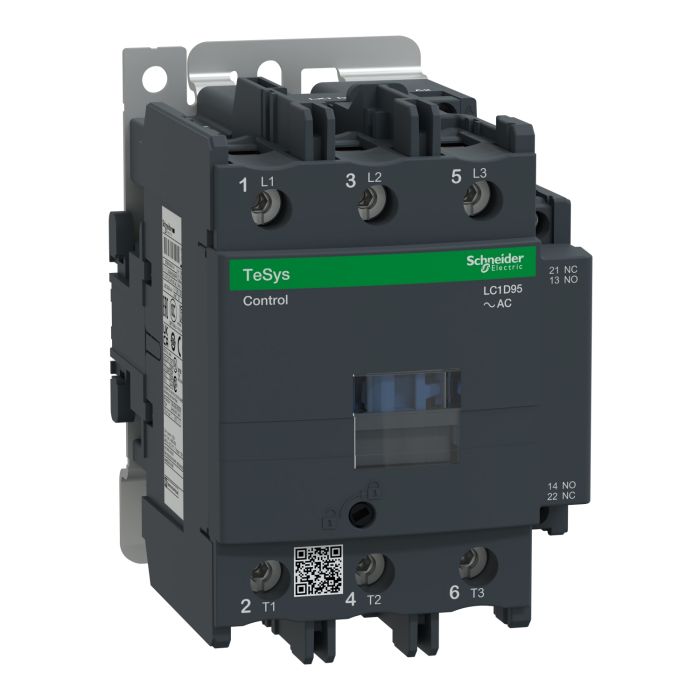

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 110 V AC 50/60 Hz coil, Schneider Electric
Out of stock
SKU
LC1D95F7
Special Price EGP 11,721 Regular Price EGP 21,706
Quick Overview
Range of product: TeSys Deca
Product type: Contactor
Poles 3P
Contactor application: Resistive load
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
The Schneider Electric LC1D95F7 TeSys D IEC Contactor is a high-performance, non-reversing contactor designed for reliable and efficient control of electric motors and power circuits. With a current rating of 95A, this three-pole contactor offers three normally open (3-NO) contacts, making it ideal for a wide range of industrial applications. Operating at 480VAC, 60HP, and with a 110VAC, 50/60Hz coil, this open-style contactor is built to withstand demanding conditions and ensure precise operation.
Key Features:
Non-Reversing Contactor: The LC1D95F7 is a non-reversing contactor, making it suitable for applications where reversing of the motor is not required.
High Current Rating: With a 95A current rating and 60HP at 480VAC, it's capable of handling heavy loads and demanding industrial setups.
Three Normally Open Contacts: This contactor provides three NO contacts for versatile motor and equipment control.
Durable and Reliable: Schneider Electric is known for producing high-quality electrical components, ensuring the durability and reliability of this contactor.
Technical Specifications:
Pole Configuration: 3P (Three Poles)
Rated Current: 95A
Rated Voltage: 480VAC
HP Rating: 60HP
Coil Voltage: 110VAC, 50/60Hz
| Specifications | |
Main | |
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| device short name | LC1D |
| contactor application | Motor control |
| Resistive load | |
| utilisation category | AC-3 |
| AC-3e | |
| AC-4 | |
| AC-1 | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| [Ie] rated operational current | 95 A (at <60 °C) at <= 440 V AC-3 for power circuit |
| 125 A (at <60 °C) at <= 690 V AC-1 for power circuit | |
| 95 A (at <60 °C) at <= 440 V AC-3e for power circuit | |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Complementary | |
| Motor power kW | 25 kW at 220...230 V AC 50 Hz (AC-3) |
| 45 kW at 380...400 V AC 50 Hz (AC-3) | |
| 45 kW at 415...440 V AC 50 Hz (AC-3) | |
| 55 kW at 500 V AC 50 Hz (AC-3) | |
| 45 kW at 660...690 V AC 50 Hz (AC-3) | |
| 15 kW at 400 V AC 50 Hz (AC-4) | |
| 25 kW at 220...230 V AC 50 Hz (AC-3e) | |
| 45 kW at 380...400 V AC 50 Hz (AC-3e) | |
| 45 kW at 415...440 V AC 50 Hz (AC-3e) | |
| 55 kW at 500 V AC 50 Hz (AC-3e) | |
| 45 kW at 660...690 V AC 50 Hz (AC-3e) | |
| Motor power hp | 7.5 hp at 120 V AC 60 Hz for 1 phase motors |
| 15 hp at 230/240 V AC 60 Hz for 1 phase motors | |
| 30 hp at 200/208 V AC 60 Hz for 3 phases motors | |
| 30 hp at 230/240 V AC 60 Hz for 3 phases motors | |
| 60 hp at 460/480 V AC 60 Hz for 3 phases motors | |
| 60 hp at 575/600 V AC 60 Hz for 3 phases motors | |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Contact compatibility | M11 |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit |
| 125 A (at 60 °C) for power circuit | |
| Irms rated making capacity | 1100 A at 440 V AC for power circuit conforming to IEC 60947 |
| 140 A AC for signalling circuit conforming to IEC 60947-5-1 | |
| 250 A DC for signalling circuit conforming to IEC 60947-5-1 | |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 1100 A 40 °C - 1 s for power circuit |
| 800 A 40 °C - 10 s for power circuit | |
| 400 A 40 °C - 1 min for power circuit | |
| 135 A 40 °C - 10 min for power circuit | |
| 140 A - 100 ms for signalling circuit | |
| 120 A - 500 ms for signalling circuit | |
| 100 A - 1 s for signalling circuit | |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| 200 A gG at <= 690 V coordination type 1 for power circuit | |
| 160 A gG at <= 690 V coordination type 2 for power circuit | |
| Average impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Power dissipation per pole | 12.5 W AC-1 |
| 7.2 W AC-3 | |
| 7.2 W AC-3e | |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Power circuit: 600 V CSA certified | |
| Power circuit: 600 V UL certified | |
| Signalling circuit: 690 V conforming to IEC 60947-1 | |
| Signalling circuit: 600 V CSA certified | |
| Signalling circuit: 600 V UL certified | |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1 |
| B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1 | |
| Mechanical durability | 4 Mcycles |
| Electrical durability | 1.2 Mcycles 95 A AC-3 |
| 1.3 Mcycles 125 A AC-1 | |
| 1.2 Mcycles 95 A AC-3e | |
| Control circuit type | AC at 50/60 Hz standard |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz |
| 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz | |
| 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz | |
| 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz | |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 20 °C) |
| 245 VA 50 Hz cos phi 0.75 (at 20 °C) | |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 20 °C) |
| 26 VA 50 Hz cos phi 0.3 (at 20 °C) | |
| Heat dissipation | 6…10 W at 50/60 Hz |
| Operating time | 20...35 ms closing |
| 6...20 ms opening | |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end |
| Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end | |
| Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end | |
| Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end | |
| Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end | |
| Power circuit: connector 1 4…50 mm² - cable stiffness: solid without cable end | |
| Power circuit: connector 2 4…25 mm² - cable stiffness: solid without cable end | |
| Tightening torque | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm | |
| Power circuit: 12 N.m - on connector hexagonal screw head 4 mm | |
| Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| type mirror contact 1 NC conforming to IEC 60947-4-1 | |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact |
| 1.5 ms on energisation between NC and NO contact | |
| mounting support | Rail |
| Plate | |
| Environment | |
| Standards | EN/IEC 60947-1 |
| EN/IEC 60947-4-1 | |
| EN/IEC 60947-5-1 | |
| UL 60947-4-1 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-4-1 | |
| CSA C22.2 No 60947-5-1 | |
| GB/T 14048.4 | |
| product certifications | IECEE CB Scheme |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| LROS (Lloyds register of shipping) | |
| RINA | |
| BV | |
| DNV-GL | |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | Conforming to IACS E10 exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C |
| 60…70 °C with derating | |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) |
| Shocks contactor open (8 Gn for 11 ms) | |
| Vibrations contactor closed (3 Gn, 5...300 Hz) | |
| Shocks contactor closed (10 Gn for 11 ms) | |
| height | 127 mm |
| Width | 85 mm |
| Depth | 130 mm |
| Net weight | 1.61 kg |
| Weight | 8.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D95F7 |
| Depth [cm] | 13 |
| Width [cm] | 1.61 |
| Height [cm] | 12.7 |
| Range | Tesys D |
| Family | PPCTR |
