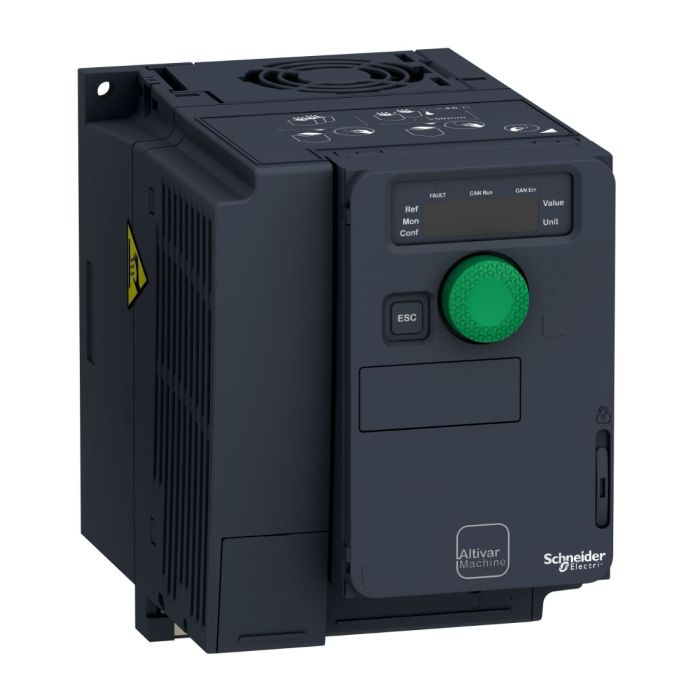

main product photo

Schneider Electric Variable Speed Drive, ATV320, 1.5 kW, 380-500V, 3-Phase, Compact

Be the first to review this product
Out of stock
SKU
ATV320U15N4C
Schneider Electric
Special Price EGP 17,098 Regular Price EGP 31,088
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Quick Overview

Range of product: Altivar Machine ATV320
Product type: Variable speed drive
Product specific application: Complex machines
Variant: Standard version

The ATV320U15N4C Variable Speed Drive is a versatile and compact solution for controlling motor speed in a wide range of industrial applications. With a power rating of 1.5 kW, it provides precise speed control and is compatible with a three-phase power supply voltage of 380-500V. Its compact design allows for easy installation and integration into various industrial setups.



Key Features:

Precise Speed Control: The ATV320U15N4C offers precise and reliable speed control, making it suitable for diverse industrial applications.

Compact Design: Its compact form factor ensures easy installation and integration even in space-restricted environments.



Technical Specifications:

Product Type: Variable Speed Drive

Power Rating: 1.5 kW

Voltage: 380-500V, 3-Phase

Compact Design: Yes



Specifications

Main


Range of ProductAltivar Machine ATV320
Product or Component TypeVariable speed drive
Product Specific ApplicationComplex machines
VariantStandard version
Format of the driveCompact
Mounting ModeWall mount
Communication Port ProtocolModbus serial
 CANopen
Option cardCommunication module, CANopen
 communication module, EtherCAT
 communication module, Profibus DP V1
 communication module, PROFINET
 communication module, Ethernet Powerlink
 communication module, EtherNet/IP
 communication module, DeviceNet
[Us] rated supply voltage380...500 V - 15...10 %
Nominal output current4.1 A
Motor power kW1.5 kW heavy duty
EMC filterClass C2 EMC filter integrated
IP degree of protectionIP20
Complementary
Discrete input number٧
Discrete input typeSTO safe torque off, 24 V DC1.5 kOhm
 DI1...DI6 logic inputs, 24 V DC 30 V)
 DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logicPositive logic (source)
 Negative logic (sink)
Discrete output number٣
Discrete output typeOpen collector DQ+ 0…1 kHz 30 V DC 100 mA
 Open collector DQ- 0…1 kHz 30 V DC 100 mA
analogue input number٣
Analogue input typeAI1 voltage 0...10 V DC 30 kOhm 10 bits
 AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits
 AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
analogue output number١
Analogue output typeSoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bits
 Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Relay output typeConfigurable relay logic R1A 1 NO 100000 cycles
 Configurable relay logic R1B 1 NC 100000 cycles
 Configurable relay logic R1C
 Configurable relay logic R2A 1 NO 100000 cycles
 Configurable relay logic R2C
Maximum switching currentRelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
 Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC
 Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
 Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
 Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
 Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Minimum switching currentRelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Method of accessSlave CANopen
4 quadrant operation possibleTRUE
Asynchronous motor control profileVoltage/frequency ratio, 5 points
 Flux vector control without sensor, standard
 Voltage/frequency ratio - Energy Saving, quadratic U/f
 Flux vector control without sensor - Energy Saving
 Voltage/frequency ratio, 2 points
Synchronous motor control profileVector control without sensor
Transient overtorque170…200 % of nominal motor torque
Maximum output frequency0.599 kHz
Acceleration and deceleration rampsLinear
 U
 S
 CUS
 Ramp switching
 Acceleration/deceleration ramp adaptation
 Acceleration/deceleration automatic stop with DC injection
Motor slip compensationAutomatic whatever the load
 Adjustable 0...300 %
 Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency2...16 kHz adjustable
 4...16 kHz with derating factor
Nominal switching frequency4 kHz
Braking to standstillBy DC injection
Brake chopper integratedTRUE
Line current6.4 A 380 V heavy duty)
 4.9 A 500 V heavy duty)
Maximum Input Current per Phase6.4 A
Maximum output voltage500 V
Apparent power4.2 kVA 500 V heavy duty)
Network Frequency50-60 Hz
Relative symmetric network frequency tolerance5%
Prospective line Isc5 kA
Base load current at high overload3.0 A
Power dissipation in WFan 56.0 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS)TRUE
With safety function Safe brake management (SBC/SBT)FALSE
With safety function Safe Operating Stop (SOS)FALSE
With safety function Safe Position (SP)FALSE
With safety function Safe programmable logicFALSE
With safety function Safe Speed Monitor (SSM)FALSE
With safety function Safe Stop 1 (SS1)TRUE
With sft fct Safe Stop 2 (SS2)FALSE
With safety function Safe torque off (STO)TRUE
With safety function Safely Limited Position (SLP)FALSE
With safety function Safe Direction (SDI)FALSE
Protection typeInput phase breaks drive
 Overcurrent between output phases and earth drive
 Overheating protection drive
 Short-circuit between motor phases drive
 Thermal protection drive
Width4.13 in (105.0 mm)
Height5.59 in (142.0 mm)
Depth6.22 in (158.0 mm)
Net Weight2.87 lb(US) (1.3 kg)
Environment
Operating positionVertical +/- 10 degree
Product CertificationsCE
 ATEX
 NOM
 GOST
 EAC
 RCM
 KC
MarkingCE
 ATEX
 UL
 CSA
 EAC
 RCM
standardsIEC 61800-5-1
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 IEC 61000-4-2
 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
 Voltage dips and interruptions immunity test IEC 61000-4-11
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3
 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Volume of cooling air4755.18 Gal/hr(US) (18.0 m3/h)
Overvoltage categoryIII
Regulation loopAdjustable PID regulator
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree2
Ambient air transport temperature-13…158 °F (-25…70 °C)
Ambient air temperature for operation14…122 °F (-10…50 °C) without derating
 122…140 °F (50…60 °C) with derating factor





More Information
Weight1.300000
BrandSchneider Electric
ModelATV320U15N4C
Width [cm]10.5
Height [cm]14.2
RangeATV320
FamilyIDVSD
