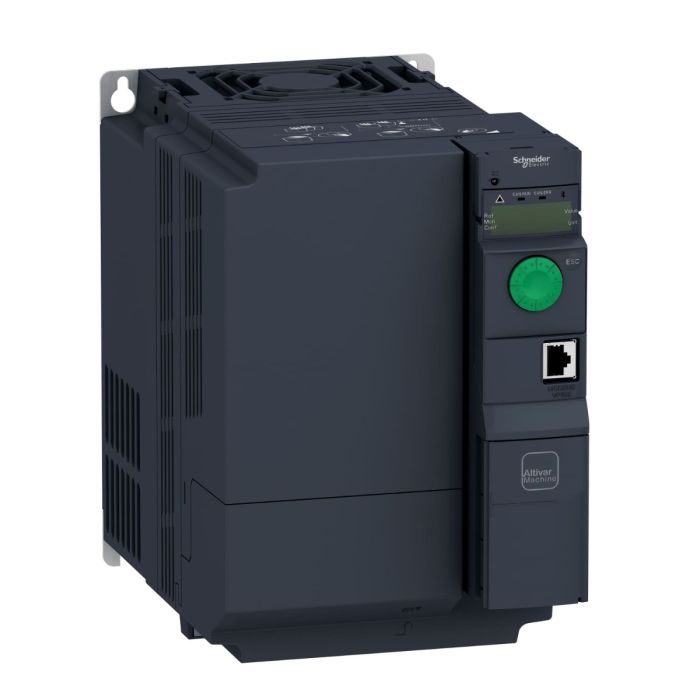

main product photo

Schneider Electric Variable Speed Drive ATV320, 5.5 kW, 380-500V, 3 Phases, Book

Be the first to review this product
In stock
SKU
ATV320U55N4B
Schneider Electric
Special Price EGP 33,651 Regular Price EGP 61,184
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Schneider Electric Variable Speed Drive ATV320, 5.5 kW, 380-500V, 3 Phases, Book is available to buy in increments of 1
Quick Overview

Range: Altivar Machine ATV320
Product type: Variable speed drive
Product specific application: Complex machines
Variant: Standard version

The ATV320U55N4B Variable Speed Drive ATV320 is designed for applications that require precise control of motor speed. With a power rating of 5.5 kW and compatibility with 380-500V three-phase power systems, this drive is suitable for a wide range of industrial applications. Its book-style design allows for easy installation and integration, making it an ideal choice for motor control in industrial settings.

Specifications:

Main
Range of productAltivar Machine ATV320
Product or component typeVariable speed drive
Product specific applicationComplex machines
VariantStandard version
Format of the driveBook
Mounting modeWall mount
Communication port protocolModbus serial
 CANopen
Option cardCommunication module, CANopen
 Communication module, EtherCAT
 Communication module, Profibus DP V1
 Communication module, PROFINET
 Communication module, Ethernet Powerlink
 Communication module, EtherNet/IP
 Communication module, DeviceNet
[Us] rated supply voltage380...500 V - 15...10 %
nominal output current14.3 A
Motor power kW5.5 kW for heavy duty
Motor power hp7.5 hp
EMC filterClass C2 EMC filter integrated
IP degree of protectionIP20
Complementary
Discrete input number7
Discrete input typeSTO safe torque off, 24 V DC, impedance: 1.5 kOhm
 DI1...DI6 logic inputs, 24 V DC (30 V)
 DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
Discrete input logicPositive logic (source)
 Negative logic (sink)
Discrete output number3
Discrete output typeOpen collector DQ+ 0…1 kHz 30 V DC 100 mA
 Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number3
Analogue input typeAI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits
 AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits
 AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Analogue output number1
Analogue output typeSoftware-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits
 Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Relay output typeConfigurable relay logic R1A 1 NO electrical durability 100000 cycles
 Configurable relay logic R1B 1 NC electrical durability 100000 cycles
 Configurable relay logic R1C
 Configurable relay logic R2A 1 NO electrical durability 100000 cycles
 Configurable relay logic R2C
Maximum switching currentRelay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC
 Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC
 Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
 Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
 Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC
 Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC
Minimum switching currentRelay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
Method of accessSlave CANopen
4 quadrant operation possibleTRUE
Asynchronous motor control profileVoltage/frequency ratio, 5 points
 Flux vector control without sensor, standard
 Voltage/frequency ratio - Energy Saving, quadratic U/f
 Flux vector control without sensor - Energy Saving
 Voltage/frequency ratio, 2 points
Synchronous motor control profileVector control without sensor
Maximum output frequency0.599 kHz
Acceleration and deceleration rampsLinear
 U
 S
 CUS
 Ramp switching
 Acceleration/deceleration ramp adaptation
 Acceleration/deceleration automatic stop with DC injection
Motor slip compensationAutomatic whatever the load
 Adjustable 0...300 %
 Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency2...16 kHz adjustable
 4...16 kHz with derating factor
Nominal switching frequency4 kHz
Braking to standstillBy DC injection
Brake chopper integratedTRUE
Line current20.7 A at 380 V (heavy duty)
 14.5 A at 500 V (heavy duty)
Maximum input current20.7 A
Maximum output voltage500 V
Apparent power12.6 kVA at 500 V (heavy duty)
Network frequency50...60 Hz
Relative symmetric network frequency tolerance5%
Prospective line Isc22 kA
Base load current at high overload14.3 A
Power dissipation in WFan: 195.0 W at 380 V, switching frequency 4 kHz
With safety function Safely Limited Speed (SLS)TRUE
With safety function Safe brake management (SBC/SBT)FALSE
With safety function Safe Operating Stop (SOS)FALSE
With safety function Safe Position (SP)FALSE
With safety function Safe programmable logicFALSE
With safety function Safe Speed Monitor (SSM)FALSE
With safety function Safe Stop 1 (SS1)TRUE
With sft fct Safe Stop 2 (SS2)FALSE
With safety function Safe torque off (STO)TRUE
With safety function Safely Limited Position (SLP)FALSE
With safety function Safe Direction (SDI)FALSE
Protection typeInput phase breaks: drive
 Overcurrent between output phases and earth: drive
 Overheating protection: drive
 Short-circuit between motor phases: drive
 Thermal protection: drive
Width150 mm
Height308.0 mm
Depth232.0 mm
Net weight4.4 kg
Transient overtorque170…200 % of nominal motor torque
Environment
Operating positionVertical +/- 10 degree
Product certificationsCE
 ATEX
 NOM
 GOST
 EAC
 RCM
 KC
MarkingCE
 ATEX
 UL
 CSA
 EAC
 RCM
StandardsIEC 61800-5-1
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3
 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Volume of cooling air60 m3/h
Overvoltage categoryIII
Regulation loopAdjustable PID regulator
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree2
Ambient air transport temperature-25…70 °C
Ambient air temperature for operation-10…50 °C without derating
 50…60 °C with derating factor
Ambient air temperature for storage-25…70 °C
More Information
Weight5.511000
BrandSchneider Electric
ModelATV320U55N4B
Width [cm]15
Height [cm]30.8
RangeATV320
FamilyIDVSD
TypeVariable Speed Drive
