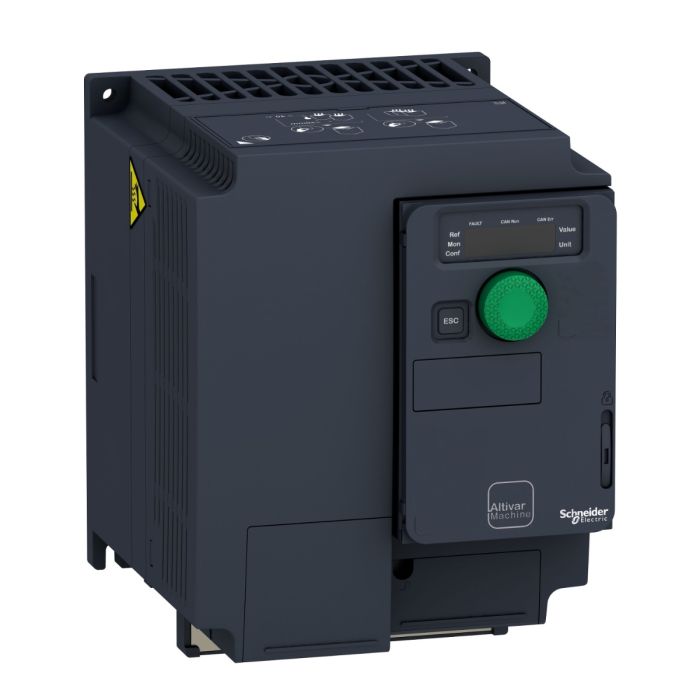

Schneider Electric Variable Speed Drive ATV320, 4 kW, 380-500V, 3 Phases, Compact

The ATV320U40N4C Variable Speed Drive ATV320 is designed for applications that require precise control of motor speed in a compact form. With a power rating of 4 kW and compatibility with 380-500V three-phase power systems, this drive is suitable for a wide range of industrial applications. Its compact design allows for easy integration, making it an ideal choice for motor control.

Key Features:

Precise Control: This drive allows for precise control of motor speed, making it suitable for various industrial applications.

Compatibility: Designed for use with 380-500V three-phase power systems, ensuring versatility in different industrial settings.

Compact Design: The compact form factor allows for easy installation and space-saving in industrial environments.

Technical Specifications:

Product Type: Variable Speed Drive

Power Rating: 4 kW

Voltage Rating: 380-500V, 3 Phases

Compact Design: Yes

Specifications
Main
Range of Product	Altivar Machine ATV320
Product or Component Type	Variable speed drive
Product Specific Application	Complex machines
Variant	Standard version
Format of the drive	Compact
Mounting Mode	Wall mount
Communication Port Protocol	Modbus serial
	CANopen
Option card	Communication module, CANopen
	communication module, EtherCAT
	communication module, Profibus DP V1
	communication module, PROFINET
	communication module, Ethernet Powerlink
	communication module, EtherNet/IP
	communication module, DeviceNet
[Us] rated supply voltage	380...500 V - 15...10 %
Nominal output current	9.5 A
Motor power kW	4.0 kW heavy duty
EMC filter	Class C2 EMC filter integrated
IP degree of protection	IP20
Complementary
Discrete input number	٧
Discrete input type	STO safe torque off, 24 V DC1.5 kOhm
	DI1...DI6 logic inputs, 24 V DC 30 V)
	DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logic	Positive logic (source)
	Negative logic (sink)
Discrete output number	٣
Discrete output type	Open collector DQ+ 0…1 kHz 30 V DC 100 mA
	Open collector DQ- 0…1 kHz 30 V DC 100 mA
analogue input number	٣
Analogue input type	AI1 voltage 0...10 V DC 30 kOhm 10 bits
	AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits
	AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
analogue output number	١
Analogue output type	Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
	Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Relay output type	Configurable relay logic R1A 1 NO 100000 cycles
	Configurable relay logic R1B 1 NC 100000 cycles
	Configurable relay logic R1C
	Configurable relay logic R2A 1 NO 100000 cycles
	Configurable relay logic R2C
Maximum switching current	Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
	Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC
	Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
	Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
	Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
	Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Minimum switching current	Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Method of access	Slave CANopen
4 quadrant operation possible	TRUE
Asynchronous motor control profile	Voltage/frequency ratio, 5 points
	Flux vector control without sensor, standard
	Voltage/frequency ratio - Energy Saving, quadratic U/f
	Flux vector control without sensor - Energy Saving
	Voltage/frequency ratio, 2 points
Synchronous motor control profile	Vector control without sensor
Transient overtorque	170…200 % of nominal motor torque
Maximum output frequency	0.599 kHz
Acceleration and deceleration ramps	Linear
	U
	S
	CUS
	Ramp switching
	Acceleration/deceleration ramp adaptation
	Acceleration/deceleration automatic stop with DC injection
Motor slip compensation	Automatic whatever the load
	Adjustable 0...300 %
	Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency	2...16 kHz adjustable
	4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	TRUE
Line current	13.7 A 380 V heavy duty)
	10.6 A 500 V heavy duty)
Maximum Input Current per Phase	13.7 A
Maximum output voltage	500 V
Apparent power	9.2 kVA 500 V heavy duty)
Network Frequency	50-60 Hz
Relative symmetric network frequency tolerance	5%
Prospective line Isc	5 kA
Base load current at high overload	9.5 A
Power dissipation in W	Fan 111 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS)	TRUE
With safety function Safe brake management (SBC/SBT)	FALSE
With safety function Safe Operating Stop (SOS)	FALSE
With safety function Safe Position (SP)	FALSE
With safety function Safe programmable logic	FALSE
With safety function Safe Speed Monitor (SSM)	FALSE
With safety function Safe Stop 1 (SS1)	TRUE
With sft fct Safe Stop 2 (SS2)	FALSE
With safety function Safe torque off (STO)	TRUE
With safety function Safely Limited Position (SLP)	FALSE
With safety function Safe Direction (SDI)	FALSE
Protection type	Input phase breaks drive
	Overcurrent between output phases and earth drive
	Overheating protection drive
	Short-circuit between motor phases drive
	Thermal protection drive
Width	5.51 in (140 mm)
Height	7.24 in (184.0 mm)
Depth	6.22 in (158.0 mm)
Net Weight	4.85 lb(US) (2.2 kg)
Environment
Operating position	Vertical +/- 10 degree
Product Certifications	CE
	ATEX
	NOM
	GOST
	EAC
	RCM
	KC
Marking	CE
	ATEX
	UL
	CSA
	EAC
	RCM
standards	IEC 61800-5-1
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 IEC 61000-4-2
	Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
	Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
	1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
	Conducted radio-frequency immunity test level 3 IEC 61000-4-6
	Voltage dips and interruptions immunity test IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3
	Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	9959.46 Gal/hr(US) (37.7 m3/h)
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree	2
Ambient air transport temperature	-13…158 °F (-25…70 °C)
Ambient air temperature for operation	14…122 °F (-10…50 °C) without derating
	122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Ordering and shipping details
Category	22152-ATV320/ATV312/ATV32 (.25 THRU 7.5HP)
Discount Schedule	CP4B
GTIN	٣٦٠٦٤٨٠٩٦٦٧٨١
Returnability	Yes
Country of origin	ID

Weight	2.200000
Brand	Schneider Electric
Model	ATV320U40N4C
Width [cm]	14
Height [cm]	18.4
Range	ATV320
Family	IDVSD
