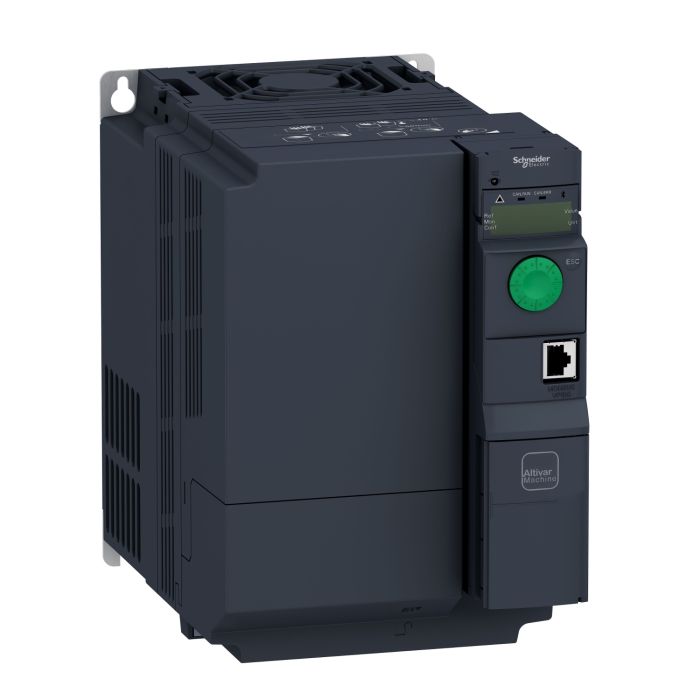

main product photo

Schneider Electric Variable Speed Drive Altivar 320, 7.5 kW, 380-500V, 3-Phase, Book Style

Be the first to review this product
Out of stock
SKU
ATV320U75N4B
Schneider Electric
Special Price EGP 36,774 Regular Price EGP 66,861
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Quick Overview

Range of product:  Product type: Variable speed drive
Product specific application: Complex machines
Variant: Standard version

The ATV320U75N4B Variable Speed Drive Altivar 320 is a powerful and versatile drive designed to provide precise control over motor speed and performance. With a power rating of 7.5 kW and compatibility with 380-500V three-phase power systems, this drive is suitable for various industrial applications. Its book style design makes installation easy and efficient.



Key Features:

Precise Speed Control: The Altivar 320 drive offers precise control over the speed and performance of your motor, making it suitable for a variety of applications.

Three-Phase Compatibility: Designed for use with 380-500V three-phase power systems, ensuring high performance in industrial settings.

Compact Design: Its book style design allows for convenient installation and saves space.

User-Friendly Interface: The drive is equipped with an easy-to-use interface for efficient programming and operation.



Technical Specifications:

Product Type: Variable Speed Drive

Power Rating: 7.5 kW



Specifications

Main


Range of ProductAltivar Machine ATV320
Product or Component TypeVariable speed drive
Product Specific ApplicationComplex machines
VariantStandard version
Format of the driveBook
Mounting ModeWall mount
Communication Port ProtocolModbus serial
 CANopen
Option cardCommunication module, CANopen
 communication module, EtherCAT
 communication module, Profibus DP V1
 communication module, PROFINET
 communication module, Ethernet Powerlink
 communication module, EtherNet/IP
 communication module, DeviceNet
[Us] rated supply voltage380...500 V - 15...10 %
Nominal output current17.0 A
Motor power kW7.5 kW heavy duty
EMC filterClass C2 EMC filter integrated
IP degree of protectionIP20
Complementary
Discrete input number7
Discrete input typeSTO safe torque off, 24 V DC1.5 kOhm
 DI1...DI6 logic inputs, 24 V DC 30 V)
 DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logicPositive logic (source)
 Negative logic (sink)
Discrete output number3
Discrete output typeOpen collector DQ+ 0…1 kHz 30 V DC 100 mA
 Open collector DQ- 0…1 kHz 30 V DC 100 mA
analogue input number3
Analogue input typeAI1 voltage 0...10 V DC 30 kOhm 10 bits
 AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits
 AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
analogue output number1
Analogue output typeSoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bits
 Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Relay output typeConfigurable relay logic R1A 1 NO 100000 cycles
 Configurable relay logic R1B 1 NC 100000 cycles
 Configurable relay logic R1C
 Configurable relay logic R2A 1 NO 100000 cycles
 Configurable relay logic R2C
Maximum switching currentRelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
 Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC
 Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
 Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
 Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
 Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Minimum switching currentRelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Method of accessSlave CANopen
4 quadrant operation possibleTRUE
Asynchronous motor control profileVoltage/frequency ratio, 5 points
 Flux vector control without sensor, standard
 Voltage/frequency ratio - Energy Saving, quadratic U/f
 Flux vector control without sensor - Energy Saving
 Voltage/frequency ratio, 2 points
Synchronous motor control profileVector control without sensor
Transient overtorque170…200 % of nominal motor torque
Maximum output frequency0.599 kHz
Acceleration and deceleration rampsLinear
 U
 S
 CUS
 Ramp switching
 Acceleration/deceleration ramp adaptation
 Acceleration/deceleration automatic stop with DC injection
Motor slip compensationAutomatic whatever the load
 Adjustable 0...300 %
 Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency2...16 kHz adjustable
 4...16 kHz with derating factor
Nominal switching frequency4 kHz
Braking to standstillBy DC injection
Brake chopper integratedTRUE
Line current26.5 A 380 V heavy duty)
 18.7 A 500 V heavy duty)
Maximum Input Current per Phase26.5 A
Maximum output voltage500 V
Apparent power16.2 kVA 500 V heavy duty)
Network Frequency50-60 Hz
Relative symmetric network frequency tolerance5%
Prospective line Isc22 kA
Base load current at high overload17.0 A
Power dissipation in WFan 229.0 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS)TRUE
With safety function Safe brake management (SBC/SBT)FALSE
With safety function Safe Operating Stop (SOS)FALSE
With safety function Safe Position (SP)FALSE
With safety function Safe programmable logicFALSE
With safety function Safe Speed Monitor (SSM)FALSE
With safety function Safe Stop 1 (SS1)TRUE
With sft fct Safe Stop 2 (SS2)FALSE
With safety function Safe torque off (STO)TRUE
With safety function Safely Limited Position (SLP)FALSE
With safety function Safe Direction (SDI)FALSE
Protection typeInput phase breaks drive
 Overcurrent between output phases and earth drive
 Overheating protection drive
 Short-circuit between motor phases drive
 Thermal protection drive
Width5.91 in (150 mm)
Height12.13 in (308.0 mm)
Depth9.13 in (232.0 mm)
Net Weight9.70 lb(US) (4.4 kg)
Environment
Operating positionVertical +/- 10 degree
Product CertificationsCE
 ATEX
 NOM
 GOST
 EAC
 RCM
 KC
MarkingCE
 ATEX
 UL
 CSA
 EAC
 RCM
standardsIEC 61800-5-1
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 IEC 61000-4-2
 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
 Voltage dips and interruptions immunity test IEC 61000-4-11
Environmental class (during operation)Class 3C3 according to IEC 60721-3-3
 Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)Class 3K5 according to EN 60721-3
Volume of cooling air15850.61 Gal/hr(US) (60 m3/h)
Overvoltage categoryIII
Regulation loopAdjustable PID regulator
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree2
Ambient air transport temperature-13…158 °F (-25…70 °C)
Ambient air temperature for operation14…122 °F (-10…50 °C) without derating
 122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage-13…158 °F (-25…70 °C)
Ordering and shipping details
Category22153-ATV320/ATV312/ATV32 (10 THRU 30HP)
Discount ScheduleCP4B
GTIN٣٦٠٦٤٨٠٩٣١٣٠٧
ReturnabilityYes
Country of originID



More Information
Weight4.400000
BrandSchneider Electric
ModelATV320U75N4B
Width [cm]15
Height [cm]30.8
RangeATV320
FamilyIDVSD
