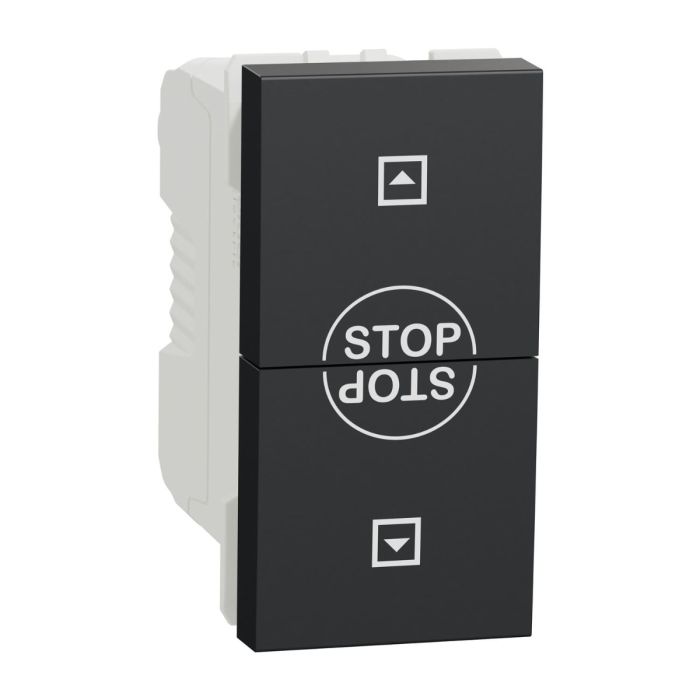

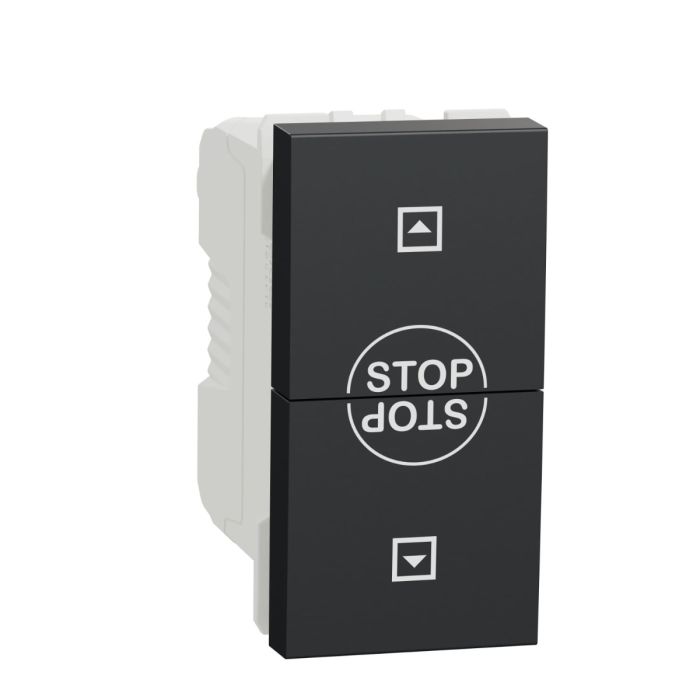

Schneider Electric Unica Top/Class - rocker switch,10 A,250 VAC, 1M, Anthracite
Range: New Unica
Device application: Control
Product type: Roller blind switch
Color: Anthracite
Schneider Electric New Unica switch NU310854SC is a mechanism in color anthracite. This is a roller blind switch. Clip-in this rocker switch for the fixation. Its rated current is 10AX. 33 mm in depth with an embedding depth of 21 mm. It reaches IP20 degree of protection which is very high. This switch has screw terminals connection terminals. The switch is made of ASA + PC, making it resistant and durable. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
| Main | |
| Range | New Unica |
| Device application | Control |
| Product or component type | Roller blind switch |
| Device presentation | Mechanism |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Fixing mode | Clip-in |
| Colour tint | Anthracite (RAL 7021) |
| Main colour tint | Anthracite |
| Complementary | |
| Device mounting | Flush |
| Number of modules | 1 module |
| Technology type | Electromechanical |
| Actuator | Rocker |
| Number of rocker | 2 |
| Switch function | 1-pole 2-way |
| Switch application | Roller blind |
| Number of poles | 1 |
| Contacts type and composition | 1 C/O |
| Mechanical interlocking | Interlock between up/down |
| [Iu] rated interrupted current | 2.5 A for motor |
| Opening distance | > 3 mm |
| Pilot light | Without LED |
| Marking | Down |
| UP | |
| Connections - terminals | Screw terminals |
| Cable cross section | 2.5 mm² flexible cable |
| 1.5…2.5 mm² flexible cable | |
| 2.5 mm² rigid cable | |
| 1.5…2.5 mm² rigid cable | |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Electrical durability | 40000 cycles, cos phi = 0.6 |
| 10000 cycles, cos phi = 0.6 | |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| ABS (acrylonitrile butadiene-styrene): mechanism cover | |
| Standards | EMC directive |
| EN 60669-1 | |
| LV directive | |
| Product certifications | ISI |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…40 °C |
| Embedding depth | 31.5 mm |
| Depth | 40.6 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Net weight | 0.036 kg |
| Environment | |
| IK degree of protection | IK04 |
| IP degree of protection | IP4X |
| Environmental characteristic | Bleach |
| Weight | 0.029000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU310854SC |
| Color | Graphite |
| Range | Unica |
| Family | HDCWD |
| Type | Shutter Control |
| Number of Modules | 1 module |
| Device Application | Control |
| Fixing Mode | Clip-in |
| Rockers | 2 Rockers |
| [In] Rated Current | 10 AX |
| IP Degree of Protection | IP4X |
| IK Degree of Protection | IK04 |
