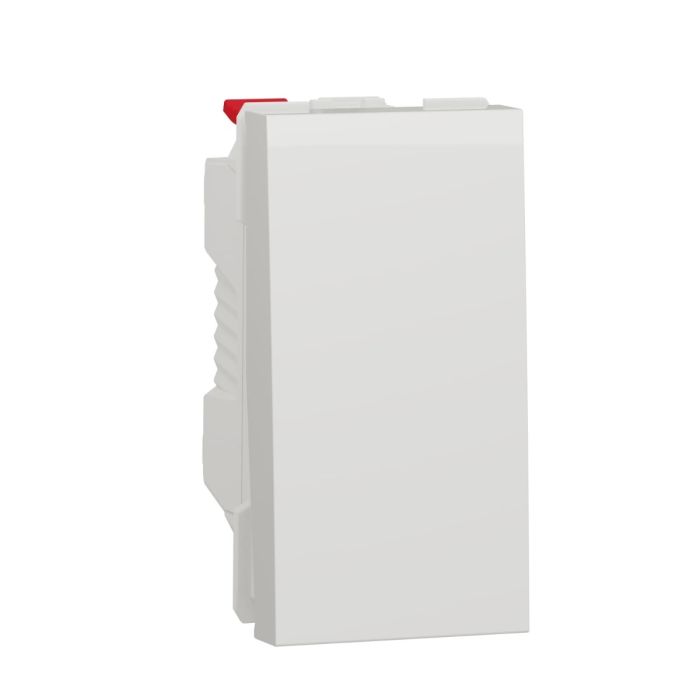

Schneider Electric Switch, New Unica, 1-pole 1-way, Screwless Terminals, Untreated, IP4X, White
Range: New Unica
Product Type: Switch
Number of Poles: 1 Pole
Number of Ways: 1 Way
Color: White
Schneider Electric New Unica switch NU310118 is a mechanism in color white. This is a 1-pole 1-way switch. The device's fixing mode is clip-in. Its rated current is 10AX. It is 22.5 mm in width, 45 mm in height 34.25 mm in depth with an embedding depth of 21.15 mm. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The IP rating of this device is IP21D which is very high. This switch has screwless terminals connection terminals. Cu.Zn37, PBT (polybutylene terephthalate) GF30, PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilized This switch is AENOR, CE, EAC, NF certified. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Specifications
| Main | |
| Range of product | New Unica |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable |
| 0…2.5 mm² flexible cable | |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing | |
| CuZn37: terminals | |
| PBT (polybutylene terephthalate) GF30: release button | |
| Marking | Without marking |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Fixing mode | Clip-in |
| Width | 22.5 mm |
| height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.0147 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| standards | EN 60669-1 |
| LV directive | |
| EMC directive | |
| product certifications | AENOR |
| NF | |
| VDE | |
| EAC | |
| CE | |
| Resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Oil |
| UV resistant | |
| Acetone | |
| Liquid soap | |
| Window-cleaning fluid | |
| Petrol | |
| Alcohol | |
| Bleach | |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU310118 |
| Color | White |
| Depth [cm] | 3.425 |
| Width [cm] | 2.25 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Switch |
| Number of Modules | 1 module |
| Device Application | Light Control |
| Fixing Mode | Clip-in |
| Rockers | 1 Rocker |
| [In] Rated Current | 10 AX |
| IP Degree of Protection | IP4X |
| IK Degree of Protection | IK04 |
