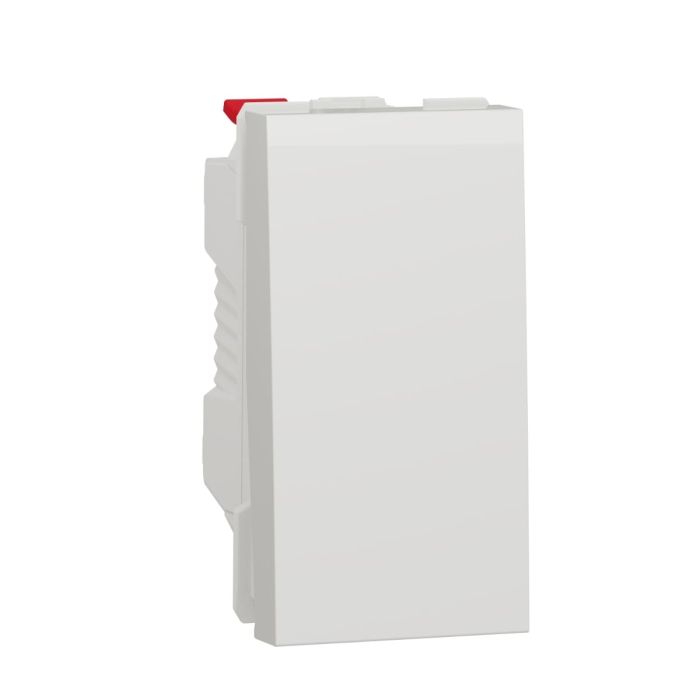

New Unica One-way switch intermediate, 10AX, 1 module, white
Product Type: Switch
Number of Poles: 1 Pole
Number of Ways: 1 Way
Rated Current: 10AX
Number of Modules: 1
Color: White
Upgrade your electrical setup with the New Unica 1-Pole 1-Way Switch NU310118. This 1-module switch is designed for controlling lighting or electrical circuits in your home or office. The screwless terminals make installation easy and safe, while the untreated white finish complements any decor. With a rating of 10AX, it is suitable for a wide range of applications. Ensure efficient control of your lighting with this reliable switch.
Key Features:
Versatile Control: Suitable for controlling lighting or electrical circuits.
Easy Installation: Screwless terminals for safe and straightforward installation.
Untreated Finish: Neutral white finish that blends with any decor.
Specifications:
Product Type: 1-Pole 1-Way Switch
Modules: 1
Current Rating: 10AX
Terminals: Screwless
Color: Untreated White
Applications:
The New Unica 1-Pole 1-Way Switch NU310118 is ideal for both residential and commercial settings, providing efficient control over lighting and electrical circuits.
Specifications
| Main | |
| Range of product | New Unica |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable |
| 0…2.5 mm² flexible cable | |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing | |
| CuZn37: terminals | |
| PBT (polybutylene terephthalate) GF30: release button | |
| Marking | Without marking |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Fixing mode | Clip-in |
| Width | 22.5 mm |
| height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.0147 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| standards | EN 60669-1 |
| LV directive | |
| EMC directive | |
| product certifications | AENOR |
| NF | |
| VDE | |
| EAC | |
| CE | |
| Resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Oil |
| UV resistant | |
| Acetone | |
| Liquid soap | |
| Window-cleaning fluid | |
| Petrol | |
| Alcohol | |
| Bleach | |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU310118 |
| Color | White |
| Range | Unica |
| Family | HDCWD |
