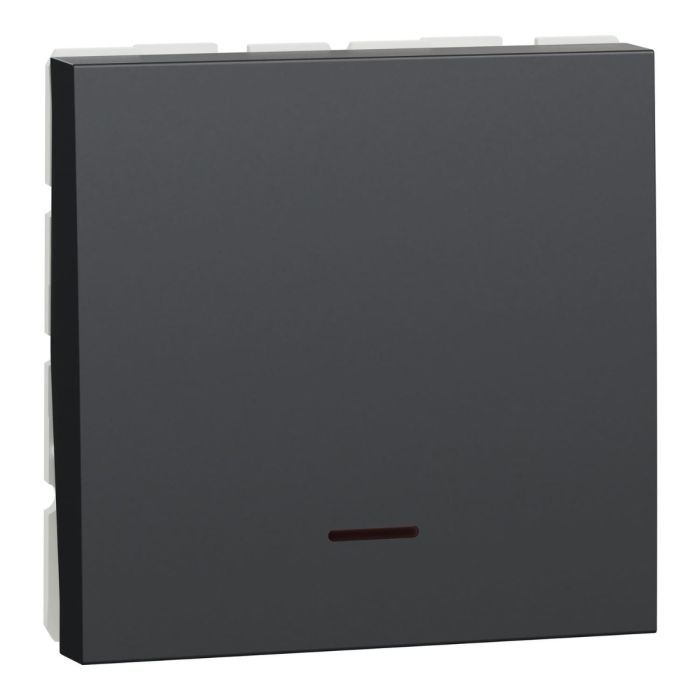

Schneider Electric Unica Top/Class, Rocker Switch, 1-Way, 32 A 250 VAC, 2M, Anthracite
Range: New Unica
Product type: Switch
Number of rocker: 1
Device application: Light control
Schneider Electric New Unica switch NU323254S is a mechanism in color anthracite. This is a 1-pole 1-way switch with lamp. The device's fixing mode is clip-in. Its rated current is 32A. It is 45 mm in width, 45 mm in height and 32 mm in depth. It reaches IP20 degree of protection which is very high. This switch has screw terminals connection terminals. Being made of ABS (acrylonitrile butadiene-styrene) material, this skin is reliable and resistant. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
| Main | |
| Range of product | New Unica |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 2-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Provided equipment | LED |
| Colour tint | Anthracite (RAL 7021) |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 32 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Condition of use | Indoor |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 2 modules |
| Pilot light | LED, colour: amber, current consumption: 1 mA, temperature rise: 15 °C |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…6 mm² flexible cable |
| 0…6 mm² rigid cable | |
| Material | ABS (acrylonitrile butadiene-styrene): mechanism cover |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Painted |
| Fixing mode | Clip-in |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 41 mm |
| Embedding depth | 30 mm |
| Net weight | 0.039 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 |
| LV directive | |
| EMC directive | |
| Product certifications | CE |
| AENOR | |
| EAC | |
| NF | |
| VDE | |
| resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Liquid soap |
| Alcohol | |
| Acetone | |
| Petrol | |
| Window-cleaning fluid | |
| UV resistant | |
| Bleach | |
| Oil | |
| Weight | 0.040000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU323254S |
| Color | Graphite |
| Depth [cm] | 4.1 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Switch |
| Number of Modules | 2 modules |
| Device Application | Light Control |
| Fixing Mode | Clip-in |
| Rockers | 1 Rocker |
| [In] Rated Current | 32 A |
| IP Degree of Protection | IP4X |
| IK Degree of Protection | IK04 |
