Schneider Electric Data Socket, New Unica, Mechanism, Rj45, U/UtP Straight, Click, Shuttered, Anthracite
Range: New Unica
Product type: Data socket
Device application: Communication
Color: Anthracite

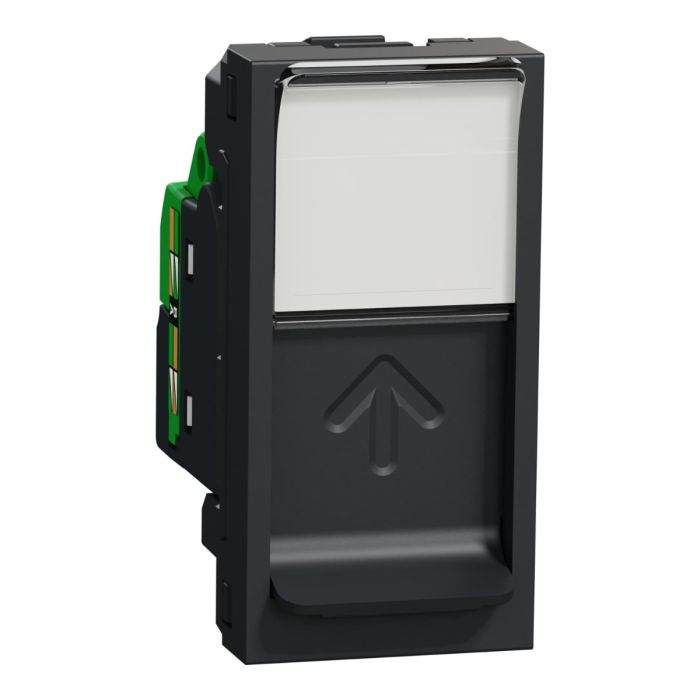

Schneider Electric New Unica RJ45 connector NU341454 is in color anthracite. As a green premium product,this device is environmentally friendly as well. It is mercury free,as well as heavy metal free,taking care of the environment and your health all the time. This RJ45 connector is SVHC (substances of very high concern) free too. Being made of thermoplastic ABS-UV stabilised material,this RJ45 connector is quite reliable and resistant. It is 22.5 mm in width. 45 mm in height. 40.5 mm in depth. Besides it is halogen free halogen free,which is good for your health. The device's fixing mode is clip-in. Besides,the IP rating of this device is IP20. New Unica offers several designs of RJ45 center plate that are easy and fast to install. Convenient label holders can be used to identify the connected devices. It is backwards compatible,and is infinitely scalable for easy planning and flexibility. The entire New Unica range has been designed to be simple and easy to install,with one offer for both homes and commercial applications. Scalable and future-proof,Unica is smart home-ready with a range of Wiser connected products.
| Main | |
| Range | New Unica |
| Product or component type | Data socket |
| Device application | Communication |
| Device presentation | Mechanism |
| Colour tint | Anthracite (RAL 7021) |
| Data socket type | RJ45 8 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Label holder |
| Protective flap | |
| Complementary | |
| Communication network type | 1000BASE-TX |
| Communication port protocol | ATM 1200 Mbps |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | U/UTP |
| Organization of wire | Unshielded twisted pair |
| Connections - terminals | Click |
| Device mounting | Flush |
| Fixing mode | Clip-in |
| Installation direction | Straight |
| Material | Thermoplastic ABS-UV stabilised: central plate |
| Depth | 40.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 40.5 mm |
| resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP20 |
| IK degree of protection | IK01 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -25…55 °C |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU341454 |
| Color | Graphite |
| Range | Unica |
| Family | HDCWD |
| Type | Data Socket |
| Number of Modules | 1 module |
| Installation Direction | Straight |
| Device Application | Communication |
| Fixing Mode | Clip-in |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK01 |
