Schneider Electric, Unica, Emergency Light, 230V Ac, 2 M, Green, Led
Range: New Unica
Product type: Emergency light
Fixing mode: Clip-in
Color: White

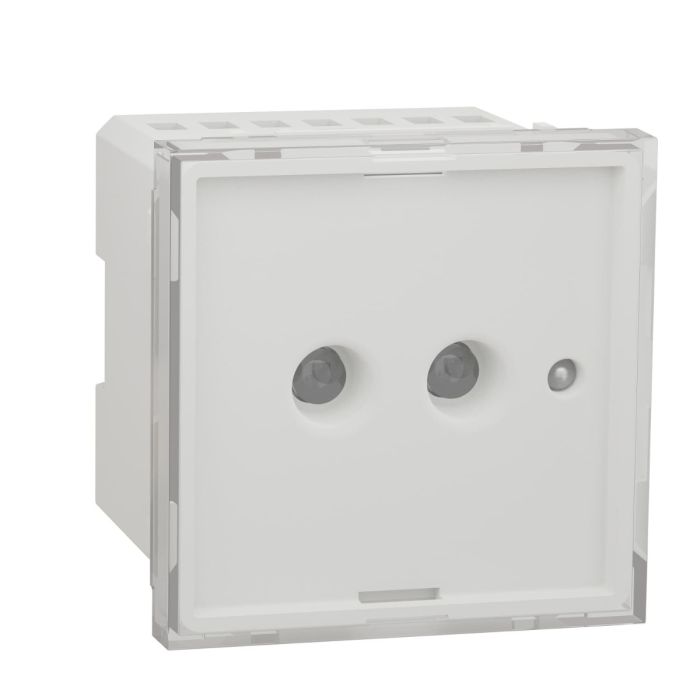

Schneider Electric New Unica emergency light NU3776 is a complete mechanism in color white with 2 modules. Its connection terminals are screw terminals. This emergency lighting provides 45 lux per 25 cm and has an integrated battery. Being made of PC (polycarbonate) GF10 FR material,this emergency light is quite reliable and resistant. The rated operational voltage of this device is 230V. It is 45 mm in width,45 mm in height,43 mm in depth,with an embedding depth of 32 mm. And the product weighs 0.085 kg. Besides it is halogen free halogen free,which is good for your health. The fixing mode of this device is clip-in. It well satisfied the standard of CE,EN 60598-2-22. What's more,its directives are 2014/35/EU - low voltage directive. Also,being environment-friendly,this device reached UV resistant,acetone,alcohol,ammonia,bleach,liquid soap,oil,petrol,window-cleaning fluid. This emergency light is SVHC (substances of very high concern) free too. Besides,it reaches IK03 and IP2xC protection levels,which can help protect against impact. And it is mercury free as well as heavy metal free,taking care of the environment and your health all the time.
| Main | |
| Range | New Unica |
| Product or component type | Emergency light |
| Device presentation | Mechanism |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Colour tint | White (RAL 9003) |
| Main colour tint | White |
| Complementary | |
| Condition of use | Battery and bulb cannot be replaced |
| Light block colour | Green |
| Bulb type | LED |
| Bulb lifespan | 400 h |
| Illuminance | 25 cm: 45 lux |
| Connections - terminals | Screw terminals |
| Clamping connection capacity | <= 2 x 2.5 mm² for flexible cable(s) |
| <= 2 x 2.5 mm² for rigid cable(s) | |
| Charging time | 24 h |
| Electrical durability | 500 cycles |
| Material | PC: mechanism cover |
| PC (polycarbonate) GF10 FR: casing | |
| Standards | EN 60598-2-22 |
| CE | |
| Directives | 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 5…45 °C |
| Ambient air temperature for storage | -5…50 °C |
| Embedding depth | 32 mm |
| Depth | 43 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.085 kg |
| resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IK degree of protection | IK03 |
| IP degree of protection | IP2XC |
| Weight | 0.010000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU3776 |
| Color | White |
| Range | Unica |
| Family | HDCWD |
| Type | Emergency Light |
| Number of Modules | 2 modules |
| Fixing Mode | Clip-in |
| IP Degree of Protection | IP2XC |
| IK Degree of Protection | IK03 |
