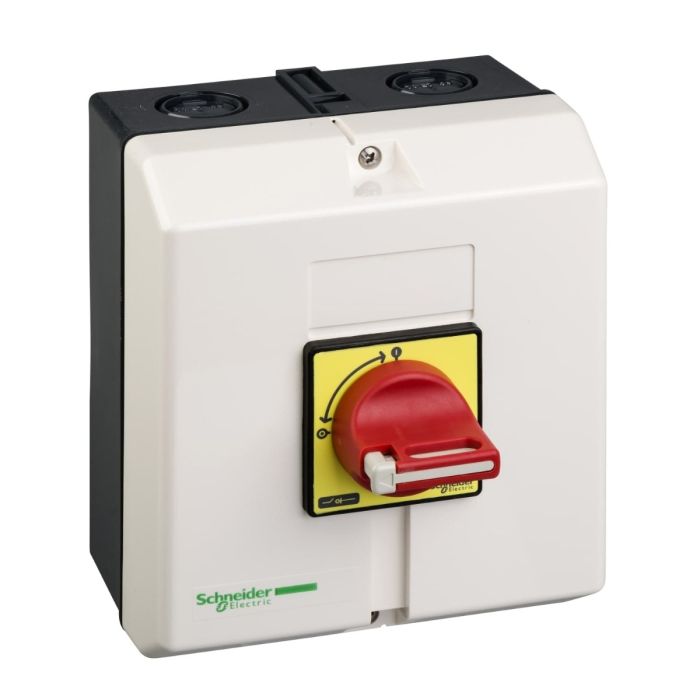

Schneider Electric TeSys Vario enclosed,emergency switch disconnector,50A, IP65
Out of stock
SKU
VCF3GE
Special Price EGP 7,073 Regular Price EGP 12,859
Quick Overview
Range: TeSys
Product type: Enclosed emergency stop switch disconnector
Poles description: 3P
Control type: Rotary handle
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
TeSys enclosed starter with switch disconnector,3 poles,Ithe 50A 690V,for main and emergency stop switching in motor applications AC-23 up to 22kW@400V. Enclosure providing IP65 protection,fitted with a red rotary handle and yellow front plate,padlockable (padlocks not included). It includes a 3-pole Vario switch body V3 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing,2 knock-outs for cable glands on top and bottom,sealable cover. It conforms to IEC 60204 and IEC 60947-4-1,Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Complementary | |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 50 A |
| [Ie] rated operational current | 41.5 A (AC-23A) at 400 V |
| Rated operational power in W | 22 kW at 400 V (AC-23) |
| 18.5 kW at 400 V (AC-3) | |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 630 A at 400 V AC-21A |
| 630 A at 400 V AC-22A | |
| 630 A at 400 V AC-23A | |
| [Icm] rated short-circuit making capacity | 2.1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 756 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 63 A aM |
| 10 kA at 400 V - associated fuse 63 A gG | |
| Breaking capacity | 500 A at 400 V (AC-21A) |
| 500 A at 400 V (AC-22A) | |
| 500 A at 400 V (AC-23A) | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles AC-21 |
| 30000 cycles DC-1...5 | |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals16 mm² - flexible - with cable end |
| Screw clamp terminals25 mm² - solid | |
| Tightening torque | 4 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 180 mm |
| Width | 157 mm |
| Depth | 152 mm |
| Net weight | 0.93 kg |
| Environment | |
| Standards | IEC 60947-4-1 |
| IEC 60204 | |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 | |
| ambient air temperature for operation | -20…50 °C |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | VCF3GE |
| Range | Tesys D |
| Family | PPCTR |
