Schneider Electric, TeSys Deca control relay,3NO+2NC,<=690V,110V DC standard coil
Out of stock
SKU
CAD32FD
Special Price EGP 1,551 Regular Price EGP 2,871
Quick Overview
Product Type: TeSys D Control Relay
Contact Configuration: 5 contacts (3NO + 2NC)
Rated Current/Voltage: 10A/690V
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001

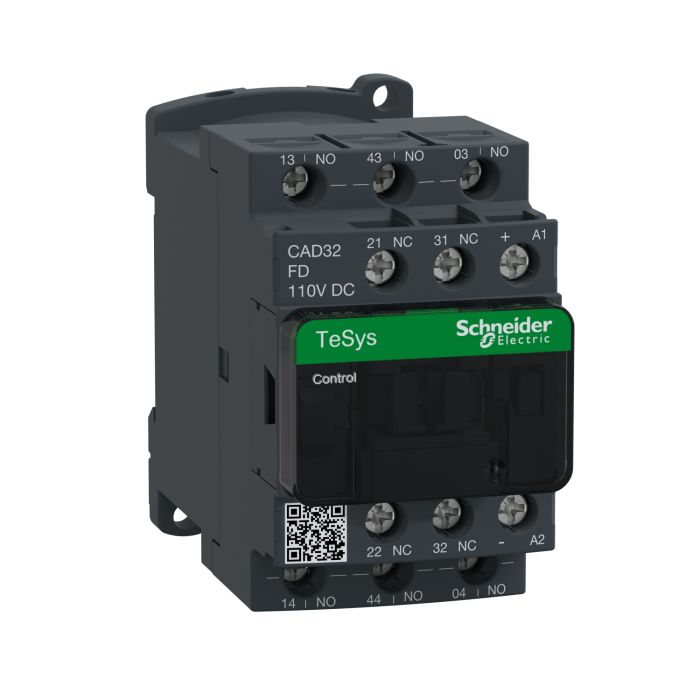

TeSys D control relay,5 contacts (3NO + 2NC),10A/690V,for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device,connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C,it procures high reliability and durability. Compact (45mm width),for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC,UL,CSA,CCC,EAC,Marine),Green Premium product (RoHS/REACh)
| Specifications | |
Main | |
| Range | TeSys |
| TeSys Deca | |
| Product name | TeSys CAD |
| Product or component type | Control relay |
| Device short name | CAD |
| contactor application | Control circuit |
| Complementary | |
| utilisation category | AC-15 |
| DC-13 | |
| AC-14 | |
| Pole contact composition | 3 NO + 2 NC |
| [Ue] rated operational voltage | <= 690 V AC 25...400 Hz |
| Control circuit type | DC standard |
| [Uc] control circuit voltage | 110 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| 250 A DC conforming to IEC 60947-5-1 | |
| [Icw] rated short-time withstand current | 100 A - 1 s |
| 120 A - 500 ms | |
| 140 A - 100 ms | |
| Associated fuse rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V UL certified |
| 600 V CSA certified | |
| 690 V conforming to IEC 60947-5-1 | |
| mounting support | Rail |
| Plate | |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end |
| Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | |
| Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | |
| Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | |
| Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | |
| Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | |
| Tightening torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | |
| 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Control circuit voltage limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC |
| 0.7...1.25 Uc (-40…60 °C):operational DC | |
| 1...1.25 Uc (60…70 °C):operational DC | |
| Operating time | 53...72 ms coil energisation and NO closing |
| 16...24 ms coil de-energisation and NO opening | |
| 47...63 ms coil energisation and NC opening | |
| 15...25 ms coil de-energisation and NC closing | |
| Mechanical durability | 30 Mcycles |
| Maximum operating rate | 180 cyc/mn |
| Time constant | 28 ms |
| Inrush power in W | 5.4 W (at 20 °C) |
| Hold-in power consumption in W | 5.4 W at 20 °C |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact |
| 1.5 ms on de-energisation between NC and NO contact | |
| Insulation resistance | > 10 MOhm |
| Mechanical robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 | |
| Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 | |
| Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | |
| height | 77 mm |
| Width | 45 mm |
| Depth | 93 mm |
| Net weight | 0.58 kg |
| Environment | |
| Standards | EN/IEC 60947-5-1 |
| GB/T 14048.5 | |
| UL 60947-5-1 | |
| CSA C22.2 No 60947-5-1 | |
| JIS C8201-5-1 | |
| product certifications | CB Scheme |
| CCC | |
| UL | |
| CSA | |
| EAC | |
| CE | |
| UKCA | |
| IP degree of protection | IP2X front face conforming to VDE 0106 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -40…60 °C |
| 60…70 °C with derating | |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 m |
| Weight | 0.580000 |
|---|---|
| Brand | Schneider Electric |
| Model | CAD32FD |
| Depth [cm] | 9.3 |
| Width [cm] | 4.5 |
| Height [cm] | 7.7 |
| Range | Tesys D |
| Family | PPCTR |
