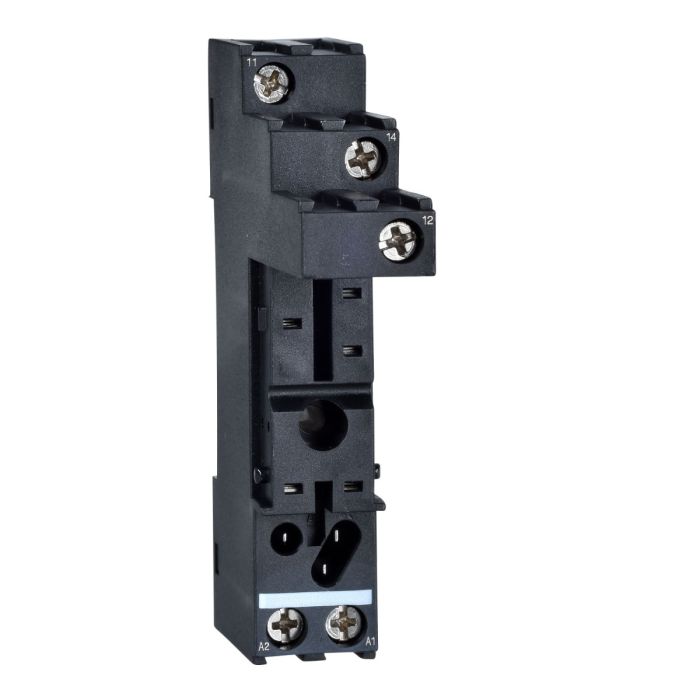

Schneider Electric Socket for RSB1A Relays, Harmony, 12A, Screw Connectors, Separate Contact
Range: Harmony Electromechanical Relays
Product type: Socket
[Ue] rated operational voltage: < 250 V AC
[Ith] conventional free air thermal current: 12 A
You May Also Like:
Schneider Electric Interface plug-in relay,8 A,2 CO,230 V ACSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Socket with Separate Contact for RSB Relays, 10A, Screw Connector, 250V ACSpecial Price EGP 97 Regular Price EGP 168
Schneider Electric Diode for RSZ Sockets, 6-230VDCSpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface plug-in relay,8 A,2 CO,24 V ACSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 8A, 2 C/O, 48V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Zelio RSB, 1 C/O, 24 V DC, 12 ASpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface plug-in relay,8 A,2 CO,24 V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 12A, 1 C/O, 230V ACSpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface Plug-In Relay, 16A, 1 C/O, 240V ACSpecial Price EGP 270 Regular Price EGP 465
Schneider Electric Interface Plug In Relay, Harmony Electromechanical Relays, 8A, 2Co, 120V AcSpecial Price EGP 161 Regular Price EGP 278
This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
Specifications:
| Main | |
| of product | Harmony Electromechanical Relays |
| Device short name | RSZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 12 A |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 12:00 AM |
| Complementary | |
| Shape of pin | Flat |
| [Ue] rated operational voltage | < 250 V AC |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | |
| Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) |
| Clip-on (35 mm symmetrical DIN rail) | |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 15.5 mm |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984 |
| Product certifications | UL |
| CSA | |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…85 ° |
| Weight | 0.035000 |
|---|---|
| Brand | Schneider Electric |
| Model | RSZE1S35M |
| Range | Zelio Relays - RSB |
| Family | IDSIG |
| Type | Socket-Outlet |
| IP Degree of Protection | IP20 |
