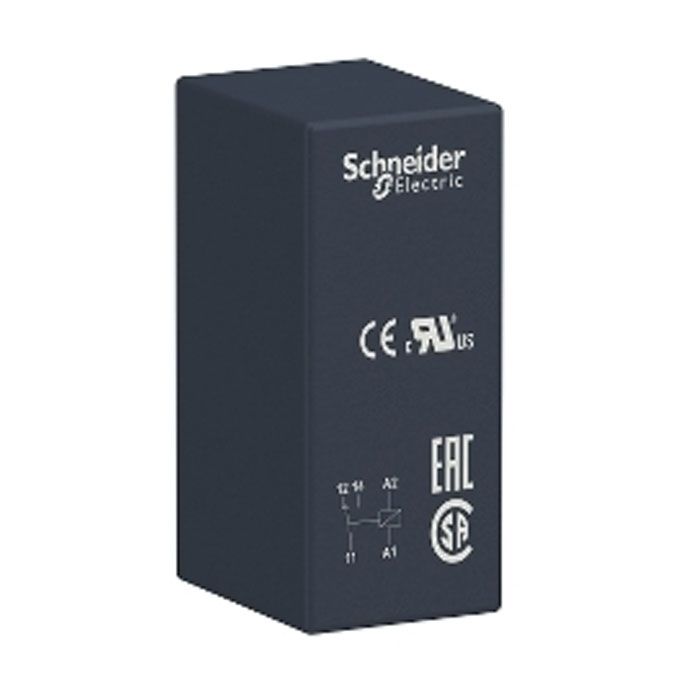

main product photo

Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 12A, 1 C/O, 230V AC

Be the first to review this product
In stock
SKU
RSB1A120P7
Schneider Electric
Special Price EGP 182 Regular Price EGP 313
Estimated Time of Delivery is 72 Hours.
Ship to EGCalculate Shipping Cost

Installment Plans

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Add to Compare
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 12A, 1 C/O, 230V AC is available to buy in increments of 1
Quick Overview

Range: Harmony Electromechanical Relays
Product type: Plug-in relay
Contact operation: Standard
Shape of pin: Flat (PCB type)

This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.

Specifications:

Main
Range of productHarmony Electromechanical Relays
Series nameRSB series
Product or component typePlug-in relay
Relay typeInterface relay
Contacts type and composition1 C/O
status LEDWithout
[Uc] control circuit voltage230 V AC 50/60 Hz
Control typeWithout lockable test button
[Ithe] conventional enclosed thermal current12 A at -40…40 °C
Complementary
Average resistance33000 Ohm network: AC at 20 °C +/- 10 %
[Ue] rated operational voltage184...345 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage3.6 kV conforming to IEC 61000-4-5
[Ie] rated operational current12 A (AC-1/DC-1) NO conforming to IEC
 6 A (AC-1/DC-1) NC conforming to IEC
[Ui] rated insulation voltage400 V conforming to IEC 60947
Maximum switching voltage300 V DC conforming to IEC
Drop-out voltage threshold>= 0.15 Uc AC
Load current12 A at 250 V AC
 12 A at 28 V DC
minimum switching current10 mA
Maximum switching capacity3000 VA/336 W
minimum switching voltage12 V
Minimum switching capacity120 mW at 10 mA, 12 V
Operating time20 ms operating
 20 ms reset
Mechanical durability10000000 cycles
Electrical durability100000 cycles, 12 A at 250 V, AC-1 NO
 100000 cycles, 6 A at 250 V, AC-1 NC
Safety reliability dataB10d = 100000
Operating rate<= 600 cycles/hour under load
 <= 18000 cycles/hour no-load
Average coil consumption0.75 VA AC
Removable legendWithout
Protection categoryRT I
Operating positionAny position
Test levelsLevel A group mounting
Device presentationComplete product
Sale per indivisible quantity10
Contacts materialSilver alloy (AgNi)
Shape of pinFlat (PCB type)
Net weight0.014 kg
Compatibility codeRSB
Environment
Dielectric strength1000 V AC between contacts
 2500 V AC between poles
 5000 V AC between coil and contact
Vibration resistance+/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-40…70 °C (AC)
StandardsCSA C22.2 No 14
 IEC 61810-1
 UL 508
Product certificationsEAC
 UL
 CSA
MarkingCE
Ambient air temperature for storage-40…85 °C
Shock resistance10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
More Information
Weight0.014000
BrandSchneider Electric
ModelRSB1A120P7
RangeZelio Relays - RSB
FamilyIDSIG
