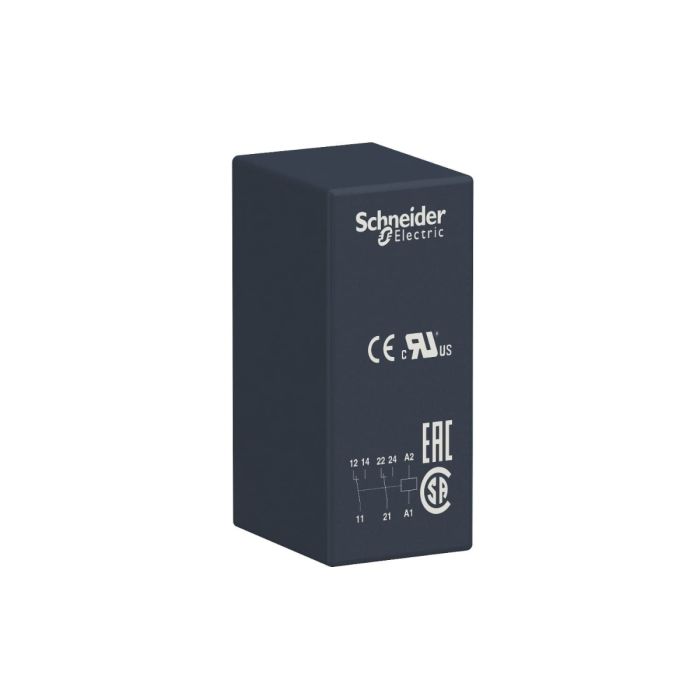

Schneider Electric Interface plug-in relay,8 A,2 CO,24 V AC
Product or component type: Plug-in relay
Control type: Without push-button
[Ithe] Conventional enclosed thermal current: 8 A at -40…40 °C
You May Also Like:
Schneider Electric Interface plug-in relay,8 A,2 CO,230 V ACSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Socket with Separate Contact for RSB Relays, 10A, Screw Connector, 250V ACSpecial Price EGP 97 Regular Price EGP 168
Schneider Electric Socket for RSB1A Relays, Harmony, 12A, Screw Connectors, Separate ContactSpecial Price EGP 94 Regular Price EGP 161
Schneider Electric Diode for RSZ Sockets, 6-230VDCSpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 8A, 2 C/O, 48V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Zelio RSB, 1 C/O, 24 V DC, 12 ASpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface plug-in relay,8 A,2 CO,24 V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 12A, 1 C/O, 230V ACSpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface Plug-In Relay, 16A, 1 C/O, 240V ACSpecial Price EGP 270 Regular Price EGP 465
Schneider Electric Interface Plug In Relay, Harmony Electromechanical Relays, 8A, 2Co, 120V AcSpecial Price EGP 161 Regular Price EGP 278
The Schneider Electric RSB2A080B7 Interface Plug-In Relay is a reliable and versatile solution for various control and switching applications. With 8 A rated current and 2 CO (changeover) contacts, this plug-in relay is designed to interface between control systems and loads, allowing for easy and efficient control of electrical circuits. It operates on a 24 V AC coil voltage, making it suitable for a wide range of industrial and commercial settings.
Key Features:
Versatile Control: The relay is designed to interface between control systems and loads, making it a versatile solution for controlling electrical circuits.
8 A Rated Current: With an 8 A rated current, it can handle a range of loads, from lighting to motors and more.
2 CO Contacts: The relay features 2 CO (changeover) contacts, providing flexibility in switching operations.
Reliable Performance: Schneider Electric's reputation for quality and reliability ensures that this plug-in relay performs consistently in demanding applications.
24 V AC Coil Voltage: The 24 V AC coil voltage is suitable for various industrial and commercial applications.
Product Specifications:
Rated Current: 8 A
Contacts: 2 CO (Changeover)
Coil Voltage: 24 V AC
Ensure precise control and reliable performance in your electrical systems with the Schneider Electric RSB2A080B7 Interface Plug-In Relay.
| Specifications | |
Main | |
| Range of Product | Harmony Electromechanical Relays |
| Series name | Interface relay |
| Product or Component Type | Plug-in relay |
| Device short name | RSB |
| Contacts type and composition | 2 C/O |
| contact operation | Standard |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 8 A -40…104 °F (-40…40 °C) |
| Status LED | Without |
| control type | Without push-button |
| Complementary | |
| Shape of pin | Flat (PCB type) |
| average coil resistance | 368 Ohm AC 20 °C +/- 10 % |
| [Ue] rated operational voltage | 19.2...36 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 400 V IEC 60947 |
| [Uimp] rated impulse withstand voltage | 3.6 kV IEC 61000-4-5 |
| Contacts material | Silver alloy (AgNi) |
| [Ie] rated operational current | 4 A AC-1/DC-1) NC IEC |
| 8 A AC-1/DC-1) NO IEC | |
| Minimum switching current | 10 mA |
| Maximum switching voltage | 300 V DC IEC |
| minimum switching voltage | 12 V |
| Maximum switching capacity | 2000 VA/224 W |
| resistive rated load | 8 A 250 V AC |
| 8 A 28 V DC | |
| Minimum switching capacity | 120 mW 10 mA, 12 V |
| Operating rate | <= 600 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 NO |
| 100000 cycles, 4 A at 250 V, AC-1 NC | |
| Operating time | 20 ms operating |
| 20 ms reset | |
| average coil consumption | 0.75 VA AC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| Net Weight | 0.03 lb(US) (0.014 kg) |
| Sale per indivisible quantity | ١٠ |
| Device presentation | Complete product |
| Environment | |
| Dielectric strength | 1000 V AC between contacts |
| 2500 V AC between poles | |
| 5000 V AC between coil and contact | |
| standards | CSA C22.2 No 14 |
| UL 508 | |
| IEC 61810-1 | |
| Product Certifications | UL |
| CSA | |
| EAC | |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | +/- 1 mm 10…55 Hz)IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gn 11 ms) not operating IEC 60068-2-27 |
| 5 gn 11 ms) in operation IEC 60068-2-27 | |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) AC) |
| Ordering and shipping details | |
| Category | 21127-ZELIO ICE CUBE RELAYS |
| Discount Schedule | CP2 |
| GTIN | 3.38911E+12 |
| Returnability | Yes |
| Country of origin | AT |
| Weight | 0.014000 |
|---|---|
| Brand | Schneider Electric |
| Model | RSB2A080B7 |
| Range | Zelio Relays - RSB |
| Family | IDSIG |
