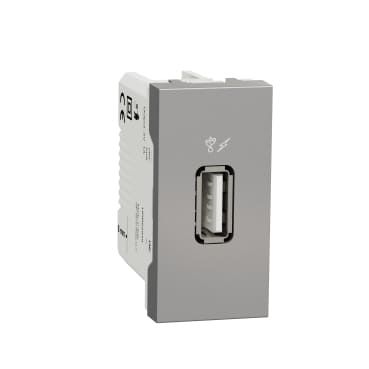

Schneider Electric New Unica USB Charger 1A, 1 Module Type A, Aluminium

In stock
SKU
NU342830
Schneider Electric
Special Price EGP 1,730 Regular Price EGP 2,108
Estimated Time of Delivery is 72 Hours.

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Schneider Electric New Unica USB Charger 1A, 1 Module Type A, Aluminium is available to buy in increments of 1
Quick Overview

Range: New Unica
Product type:
USB charger
Device mounting: Flush
Number of modules: 1 module

Schneider Electric New Unica USB charger NU342830 is a mechanism in color aluminium with 2 terminals. The maximum input power of this USB charger is 7.5 W. Its output current is 1 A. 100...240V is the rated operational voltage. The protection type is short-circuit protection, improving safety level. The device's fixing mode is clip-in. It is 22.5 mm in width, 45 mm in height, 42 mm in depth, with an embedding depth of 30.8 mm. Besides, it reaches IK04 protection level, which can help protect against impact. other values not applied IP2x. C As a green premium product, this device is environmentally friendly as well. And it is mercury free This USB charger is SVHC (substances of very high concern) free too. Also, it is environment-friendly, with UV resistant, acetone, alcohol, ammoniA. bleach, liquid soap, oil, petrol, window-cleaning fluid reached. The USB charger is made of PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilized, making it as resistant as possible. What's more, it well satisfied the standard of EN 61000-6-1, EN 61000-6-3, IEC 62368-1, IEC 62680-3. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.

Specifications

Main

RangeNew Unica
Product or component typeUSB charger
device presentationMechanism
Complementary
Device applicationCharger
Device mountingFlush
Number of modules1 module
Type of USB power supplyUSB type A
Colour tintAluminium
Surface finishGlossy
[Ue] rated operational voltage100...240 V AC 50/60 Hz
Nominal output power5 W
Input power7.5 W
socket number1
Integrated connection type1 USB type A 5 V DC, maximum load current: 1 A
MaterialPC (polycarbonate) GF10 FR: casing
PC (polycarbonate) GF10 FR: internal cover
Thermoplastic ABS-UV stabilised: centre plate
Protection typeShort-circuit protection
Number of terminals2 screw terminals
Shape of screw headPozidriv No 1
Clamping connection capacity1.5...2.5 mm² for rigid cable(s)
1.5...2.5 mm² for flexible cable(s)
wire stripping length8 mm
Product compatibilityAll devices fulfilling the EN 62684 standard
Fixing modeClip-in
Type of packingFlow-pack
ambient air temperature for operation5…45 °C
Ambient air temperature for storage-5…50 °C
StandardsIEC 62368-1
IEC 62680-3
EN 61000-6-3
EN 61000-6-1
height45 mm
Width22.5 mm
Depth42 mm
Embedding depth30.8 mm
Net weight0.03 kg
Resistance to chemical agentsResistant to alcohol (70 %)
Resistant to alcohol (96 %)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane



More Information
Weight0.033000
BrandSchneider Electric
ModelNU342830
ColorAluminum
RangeNew Unica
FamilyHDCWD
TypeUSB Charger
Number of Modules1 module
Device ApplicationCharger
IP Degree of ProtectionIP2XC
IK Degree of ProtectionIK04
