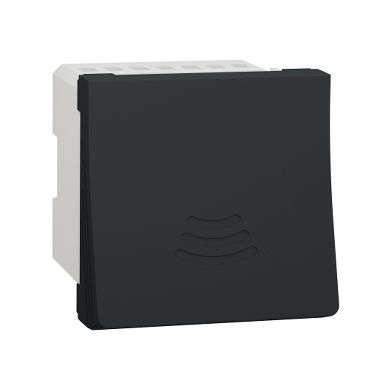

Schneider Electric New Unica Electronic Doorbell, 2 Modules, Anthracite

Out of stock
SKU
NU378654
Schneider Electric
Special Price EGP 2,495 Regular Price EGP 3,041
Estimated Time of Delivery is 72 Hours.

The Installment Amount Is Approximate. The Actual Amount Will Be Shown During The Payment Process.

  • Bank Installment
  • Direct Installment
Quick Overview

Range: New Unica
Product type:
Electronic doorbell
Fixing mode: Screws or claws
Number of modules: 2 modules

Schneider Electric New Unica electronic doorbell NU378654 is a mechanism in color anthracite with 2 modules Its connection terminals are screw terminals. It is 45 mm in width, 45 mm in height, 50 mm in depth, with an embedding depth of 31 mm, And the product weighs 0.046 kg. Its fixing mode is screws or claws. And its acoustic level is 70 d. B/1m. In addition, the rated operational voltage of this device is 230V. Besides it is halogen free halogen free, which is good for your health. It reaches IP20 degree of protection too. Besides, it reaches IK04 protection level, which can help protect against impact. And heavy metal free, which takes care of the environment and your health as always. The electronic doorbell is made of PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilised, making it as resistant as possible. What's more, its directives are 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive. Also, being environment-friendly, this device reached UV resistant, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window-cleaning fluid. This electronic doorbell is SVHC (substances of very high concern) free too. What's more, it well satisfied the standard of CE, EN 62080. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.



Specifications

Main

RangeNew Unica
Device applicationSignalling
Product or component typeElectronic doorbell
device presentationMechanism
[Ue] rated operational voltage230 V AC 50/60 Hz
Number of modules2 modules
Fixing modeScrews or claws
Colour tintAnthracite (RAL 7021)
Complementary
Current consumption14 mA
Type of setting5 programmable melodies
Device mountingFlush
Connections - terminalsScrew terminals
Acoustic level70 dB/1m
Cable cross section0.75…1.5 mm² flexible cable
0.75…1.5 mm² rigid cable
Connected auxiliaries10 standard push-buttons connected in parallel
3 indicator lights connected in parallel
MaterialThermoplastic ABS-UV stabilised: mechanism rocker
PC (polycarbonate) GF10 FR: casing
StandardsEN 62080
CE
Directives2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
ambient air temperature for operation15…30 °C
Ambient air temperature for storage0…35 °C
Embedding depth31 mm
Depth50 mm
Width45 mm
height45 mm
Net weight0.046 kg
Resistance to chemical agentsResistant to alcohol (70 %)
Resistant to alcohol (96 %)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane



More Information
Weight0.046000
BrandSchneider Electric
ModelNU378654
ColorAnthracite
RangeNew Unica
FamilyHDCWD
IP Degree of ProtectionIP20
IK Degree of ProtectionIK04
