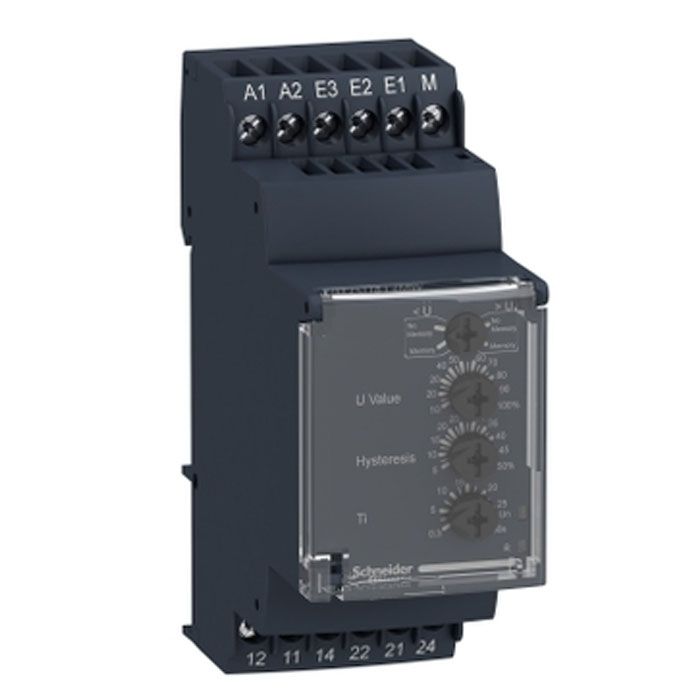

Schneider Electric Multifunction Voltage Control Relay, RM35U Range, 1-100 V
In stock
SKU
RM35UA12MW
Special Price EGP 4,702 Regular Price EGP 8,107
Schneider Electric Multifunction Voltage Control Relay, RM35U Range, 1-100 V is available to buy in increments of 1
Quick Overview
Range: Harmony Control Relays
Product type: Voltage Control relay
Switching capacity in VA: 1250 VA
Output current: 5 A
You May Also Like
Schneider Electric Multifunction control relay RM17-TE - range 183..528 V ACSpecial Price EGP 4,028 Regular Price EGP 6,944
Schneider Electric Harmony Control Relay, Modular 3-Phase Supply Control Relay, 5A - 1CO - 208-480V ACSpecial Price EGP 2,664 Regular Price EGP 4,592
Schneider Electric Harmony Control Relay, Modular 3-Phase Supply Control Relay - 5A - 2CO - 208-440V ACSpecial Price EGP 3,008 Regular Price EGP 5,186
Schneider Electric Multifunction Phase Control Relay - RM35T Range, 194-528V ACSpecial Price EGP 5,186 Regular Price EGP 8,941
Schneider Electric Level Control Relay, RM22L Series, 24-240V AC/DC, 1 C/OSpecial Price EGP 3,158 Regular Price EGP 5,445
Schneider Electric Liquid Level Control Relay, RM35L, 24-240 V AC/DCSpecial Price EGP 3,458 Regular Price EGP 5,962
Schneider Electric Modular 3-Phase Supply Control Relay, 8A, 2 CO, 183-528V ACSpecial Price EGP 3,643 Regular Price EGP 6,281
This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
Specifications:
| Main | |
| Range of product | Harmony Control Relays |
| Relay type | Multifunction voltage control relay |
| Product or component type | Voltage control relay |
| Relay name | RM35UA |
| Relay monitored parameters | Overvoltage or undervoltage detection |
| time delay | Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Measurement range | 1...100 V AC/DC |
| Contacts type and composition | 2 C/O |
| Complementary | |
| Reset time | 1500 ms time delay |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Supply voltage limits | 20.4…264 V AC/DC |
| Power consumption in VA | 0…3.5 VA AC |
| Maximum power consumption in W | 0.6 W DC |
| Control circuit frequency | 40...70 Hz +/- 10 % |
| Immunity to microbreaks | 10 ms |
| Resistance across terminals | 110 mOhm at E2-M terminals |
| 22 mOhm at E1-M terminals | |
| 220 mOhm at E3-M terminals | |
| Output contacts | 2 C/O |
| Nominal output current | 5:00 AM |
| Hysteresis | 5…50 % of threshold setting |
| Measurement accuracy | +/- 10 % of the full scale value |
| Polarity | Non reversible polarity on DC supply |
| delay at power up | 600 ms |
| Maximum measuring cycle | 30 ms measurement cycle as true rms value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit |
| +/- 2 % for time delay | |
| Measurement error | +/- 0.05 %/°C with temperature variation |
| < 1 % over the whole range with voltage variation | |
| Sensitivity scale | 1...10 V E1-M terminals |
| 10...100 V E3-M terminals | |
| 5...50 V E2-M terminals | |
| Threshold setting | 10...100 % |
| Quality labels | CE |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 |
| > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 | |
| > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 | |
| > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 | |
| > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 | |
| > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 | |
| Operating position | Any position without derating |
| Local signalling | LED (green) for power ON |
| LED (yellow) for relay ON | |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| 600 V conforming to IEC 60664-1 | |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end |
| Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end | |
| Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 |
| AC-13 conforming to IEC 60947-5-1 | |
| AC-14 conforming to IEC 60947-5-1 | |
| AC-15 conforming to IEC 60947-5-1 | |
| DC-12 conforming to IEC 60947-5-1 | |
| DC-13 conforming to IEC 60947-5-1 | |
| DC-14 conforming to IEC 60947-5-1 | |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Safety reliability data | B10d = 290000 |
| MTTFd = 308.2 years | |
| control type | Without test button |
| Width | 35 mm |
| Net weight | 0.08 kg |
| Environment | |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 |
| Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | |
| Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 | |
| Ambient air temperature for operation | -20…50 °C |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 | |
| Shock resistance | 5 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60255-6 |
| Product certifications | GOST |
| C-Tick | |
| UL | |
| GL | |
| CSA | |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 |
| IP30 (casing) conforming to IEC 60529 | |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Directives | 73/23/EEC - low voltage directive |
| 89/336/EEC - electromagnetic compatibility | |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 |
| 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 | |
| Non-dissipating shock wave | 4 kV conforming to IEC 60255-5 |
| 4 kV conforming to IEC 60664-1 | |
| 4 kV conforming to IEC 61000-4-5 |
| Weight | 0.080000 |
|---|---|
| Brand | Schneider Electric |
| Model | RM35UA12MW |
| Width [cm] | 3.5 |
| Range | Zelio Control Relays |
| Family | IDSIG |
| IP Degree of Protection | IP20 |
