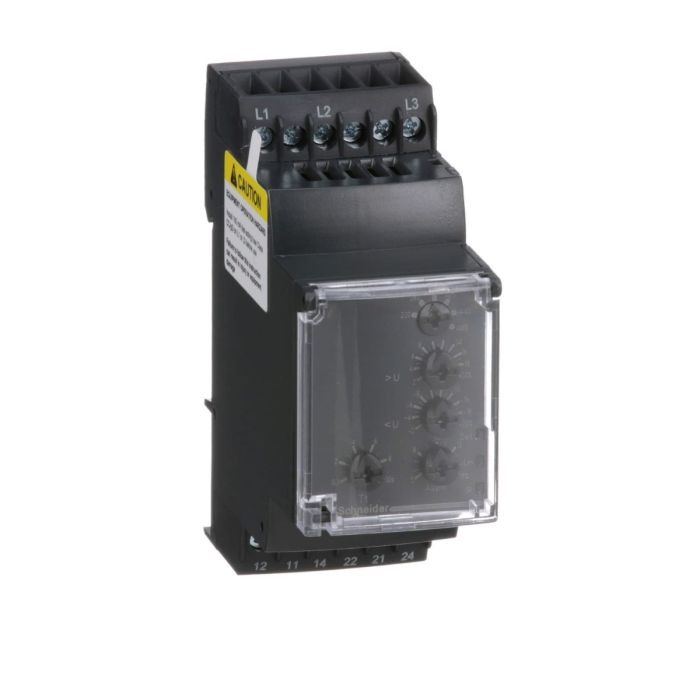

Schneider Electric Multifunction Phase Control Relay - RM35T Range, 194-528V AC
In stock
SKU
RM35TF30
Special Price EGP 5,186 Regular Price EGP 8,941
Schneider Electric Multifunction Phase Control Relay - RM35T Range, 194-528V AC is available to buy in increments of 1
Quick Overview
Range: Harmony Electromechanical Relays
Product type: 3-phase control relay
Operating position: Any position without derating
Output contacts: 2 C/O
You May Also Like
Schneider Electric Multifunction control relay RM17-TE - range 183..528 V ACSpecial Price EGP 4,028 Regular Price EGP 6,944
Schneider Electric Harmony Control Relay, Modular 3-Phase Supply Control Relay, 5A - 1CO - 208-480V ACSpecial Price EGP 2,664 Regular Price EGP 4,592
Schneider Electric Harmony Control Relay, Modular 3-Phase Supply Control Relay - 5A - 2CO - 208-440V ACSpecial Price EGP 3,008 Regular Price EGP 5,186
Schneider Electric Level Control Relay, RM22L Series, 24-240V AC/DC, 1 C/OSpecial Price EGP 3,158 Regular Price EGP 5,445
Schneider Electric Liquid Level Control Relay, RM35L, 24-240 V AC/DCSpecial Price EGP 3,458 Regular Price EGP 5,962
Schneider Electric Modular 3-Phase Supply Control Relay, 8A, 2 CO, 183-528V ACSpecial Price EGP 3,643 Regular Price EGP 6,281
Schneider Electric Multifunction Voltage Control Relay, RM35U Range, 1-100 VSpecial Price EGP 4,702 Regular Price EGP 8,107
This Harmony RM35-T multi function control relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
Specifications
| Main | |
| Range of product | Harmony Control Relays |
| Product or component type | 3-phase control relay |
| Relay type | Multifunction control relay |
| Product specific application | For 3-phase supply |
| Relay name | RM35TF |
| Relay monitored parameters | Undervoltage and overvoltage in window mode |
| Phase sequence | |
| Phase failure detection | |
| Asymmetry | |
| time delay | Adjustable 0.1...10 s, +/- 10 % of the full scale value |
| Switching capacity in VA | 1250 VA |
| Measurement range | 220...480 V voltage AC |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 220...480 V |
| Complementary | |
| Reset time | 1500 ms at 480 V |
| Maximum switching voltage | 250 V AC |
| 250 V DC | |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC |
| 5 A DC | |
| Supply voltage limits | 194…528 V AC, 3 phases |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Power consumption in VA | 0…22 VA at 400 V AC 50 Hz |
| Voltage detection threshold | < 194 V |
| control circuit frequency | 50...60 Hz +/- 10 % |
| Output contacts | 2 C/O |
| Nominal output current | 05:00 ص |
| Measurement voltage limits | 176…528 V AC |
| Hysteresis | 2% |
| delay at power up | 650 ms |
| Maximum measuring cycle | 140 ms measurement cycle as true rms value |
| Threshold adjustment voltage | -20...-2 % in the range 380...480 V AC |
| 2...20 % of Un selected | |
| -12...-2 % in the range 220 V AC | |
| +2...+20 % in the range 220...440 V AC | |
| +2...+10 % in the range 480 V AC | |
| Voltage range | 220...480 V phase to phase |
| Adjustment of asymmetry threshold | 5...15 % of Un selected |
| Repeat accuracy | 0.3 % for time delay |
| 0.5 % for input and measurement circuit | |
| Measurement error | < 1 % over the whole range with voltage variation |
| 0.05 %/°C with temperature variation | |
| Response time | < 200 ms (in the event of a fault) |
| Marking | CE |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60255-5 |
| > 500 MOhm at 500 V DC conforming to IEC 60664-1 | |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end |
| Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end | |
| Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Local signalling | LED (green) for power ON |
| LED (yellow) for relay ON | |
| LED (yellow) for fault | |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 |
| AC-13 conforming to IEC 60947-5-1 | |
| AC-14 conforming to IEC 60947-5-1 | |
| AC-15 conforming to IEC 60947-5-1 | |
| DC-12 conforming to IEC 60947-5-1 | |
| DC-13 conforming to IEC 60947-5-1 | |
| Safety reliability data | MTTFd = 399.5 years |
| B10d = 360000 | |
| Width | 35 mm |
| Net weight | 0.13 kg |
| Environment | |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 |
| Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | |
| Immunity for industrial environments conforming to IEC 61000-6-2 | |
| standards | IEC 60255-1 |
| product certifications | GL |
| UL | |
| CSA | |
| GOST | |
| C-Tick | |
| Directives | 89/336/EEC - electromagnetic compatibility |
| 73/23/EEC - low voltage directive | |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 | |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 |
| IP30 (casing) conforming to IEC 60529 | |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz |
| Non-dissipating shock wave | 4 kV |
| Weight | 0.130000 |
|---|---|
| Brand | Schneider Electric |
| Model | RM35TF30 |
| Color | Black |
| Width [cm] | 3.5 |
| Range | Zelio Control Relays |
| Family | IDSIG |
| Type | Control relay |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
