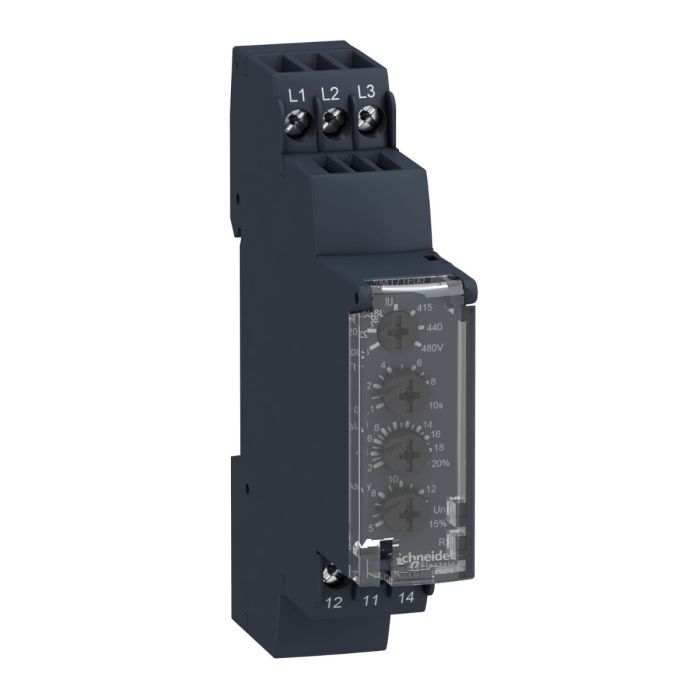

This Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting,packaging,lifts,textile,water. It has one of market slimmest form-factors with 17.5mm width,allowing for a flexible and easy installation on DIN rail,using the same space as any modular 1-pole DIN device. It also offers a sealable cover,simple and precise settings with screw trimmers. The product monitors its own power supply,when the power supply is abnormal,the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems,ideal for refurbishment of old installations without using a PLC.

Specifications:

Main
Range of product	Harmony Control Relays
Relay type	Multifunction control relay
Product or component type	3-phase control relay
Relay name	RM17TE
Relay monitored parameters	Undervoltage and overvoltage in window mode
	Asymmetry
	Phase sequence
	Phase failure detection
Measurement range	208...480 V AC
Time delay type	Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Output contacts	1 C/O
nominal output current	5:00 AM
Contacts type and composition	1 C/O
[Uc] control circuit voltage	208...480 V
Product specific application	For 3-phase supply
Complementary
[Us] rated supply voltage	, self-powered
Supply voltage limits	183…528 V AC
Reset time	1500 ms time delay
Maximum switching voltage	250 V AC
	250 V DC
Switching capacity in VA	1250 VA
Minimum switching current	10 mA at 5 V DC
Maximum switching current	5 A AC
	5 A DC
Control circuit voltage limits	- 12 % + 10 % Un
Power consumption in VA	0…22 VA at 400 V AC 50 Hz
Control circuit frequency	50...60 Hz +/- 10 %
Measurement voltage limits	183…528 V AC
Hysteresis	2%
delay at power up	650 ms
Maximum measuring cycle	150 ms measurement cycle as true rms value
Threshold adjustment voltage	2...20 % of Un selected
	-2...-17 % in the range 220 V AC
	+2...+10 % in the range 480 V AC
	-2...-12 % in the range 208 V AC
Voltage range	208...480 V phase to phase
Adjustment of asymmetry threshold	5...15 % of Un selected
Repeat accuracy	0.5 % for input and measurement circuit
	3 % for time delay
Measurement error	< 0.05 %/°C with temperature variation
	< 1 % over the whole range with voltage variation
Phase failure sensitivity	0.7 Un
Response time	< 200 ms (in the event of a fault)
Insulation resistance	> 500 MOhm at 500 V DC conforming to IEC 60255-5
	> 500 MOhm at 500 V DC conforming to IEC 60664-1
[Ui] rated insulation voltage	400 V conforming to IEC 60664-1
Supply frequency	50/60 Hz +/- 10 %
Operating position	Any position without derating
Connections - terminals	Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
	Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
	Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
	Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Tightening torque	0.6…1 N.m conforming to IEC 60947-1
Housing material	Self-extinguishing plastic
Local signalling	LED (green) for power ON
	LED (yellow) for relay ON
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability	100000 cycles
Mechanical durability	30000000 cycles
Operating rate	<= 360 operations/hour full load
Utilisation category	AC-12 conforming to IEC 60947-5-1
	AC-13 conforming to IEC 60947-5-1
	AC-14 conforming to IEC 60947-5-1
	AC-15 conforming to IEC 60947-5-1
	DC-12 conforming to IEC 60947-5-1
	DC-13 conforming to IEC 60947-5-1
Safety reliability data	MTTFd = 502.2 years
	B10d = 470000
Width	17.5 mm
Net weight	0.13 kg
control type	Without test button
Environment
Electromagnetic compatibility	Emission standard for industrial environments conforming to IEC 61000-6-4
	Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
	Immunity for industrial environments conforming to IEC 61000-6-2
Standards	IEC 60255-1
Product certifications	GOST
	C-Tick
	CSA
	UL
	GL
Marking	CE
Directives	89/336/EEC - electromagnetic compatibility
	73/23/EEC - low voltage directive
Ambient air temperature for storage	-40…70 °C
Ambient air temperature for operation	-20…50 °C
Relative humidity	95 % at 55 °C conforming to IEC 60068-2-30
Vibration resistance	0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6
	1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1
Shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
IP degree of protection	IP20 (terminals) conforming to IEC 60529
	IP30 (casing) conforming to IEC 60529
Pollution degree	3 conforming to IEC 60664-1
Overvoltage category	III conforming to IEC 60664-1
Dielectric test voltage	2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
	2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
Non-dissipating shock wave	4 kV conforming to IEC 60255-5
	4 kV conforming to IEC 60664-1
	4 kV conforming to IEC 61000-4-5

More Information

More Information
Weight	3.000000
Brand	Schneider Electric
Model	RM17TE00
Range	Zelio Control Relays
Family	IDSIG
Type	Control relay
[In] Rated Current	5 A
Voltage ~ Frequency	50-60 Hz
IP Degree of Protection	IP20
