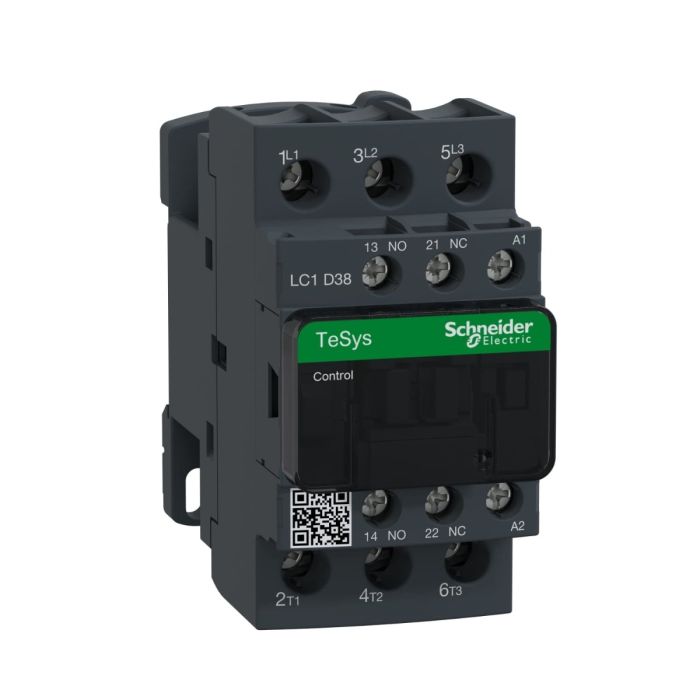

Schneider Electric Contactor, Tesys D, 3P, 38A AC3, 440V, 220V AC Coil, 50,60Hz
In stock
SKU
LC1D38M7
Special Price EGP 3,562 Regular Price EGP 6,596
Schneider Electric Contactor, Tesys D, 3P, 38A AC3, 440V, 220V AC Coil, 50,60Hz is available to buy in increments of 1
Quick Overview
Range of product: TeSys
Product type: Contactor
contactor application: Resistive load,Motor control
Poles: 3P
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
TeSys D contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Motor control |
| Resistive load | |
| Utilisation category | AC-4 |
| AC-1 | |
| AC-3 | |
| AC-3e | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| Power circuit: <= 300 V DC | |
| [Ie] rated operational current | 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | |
| 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Complementary | |
| Motor power kW | 18.5 kW at 500 V AC 50/60 Hz (AC-3) |
| 18.5 kW at 660...690 V AC 50/60 Hz (AC-3) | |
| 7.5 kW at 400 V AC 50/60 Hz (AC-4) | |
| 18.5 kW at 380...400 V AC 50/60 Hz (AC-3) | |
| 9 kW at 220...230 V AC 50/60 Hz (AC-3) | |
| 18.5 kW at 415...440 V AC 50/60 Hz (AC-3) | |
| 18.5 kW at 500 V AC 50/60 Hz (AC-3e) | |
| 18.5 kW at 660...690 V AC 50/60 Hz (AC-3e) | |
| 18.5 kW at 380...400 V AC 50/60 Hz (AC-3e) | |
| 9 kW at 220...230 V AC 50/60 Hz (AC-3e) | |
| 18.5 kW at 415...440 V AC 50/60 Hz (AC-3e) | |
| Motor power hp | 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors |
| 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors | |
| 5 hp at 240 V AC 50/60 Hz for 1 phase motors | |
| 20 hp at 480 V AC 50/60 Hz for 3 phases motors | |
| 25 hp at 600 V AC 50/60 Hz for 3 phases motors | |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit |
| 50 A (at 60 °C) for power circuit | |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 |
| 250 A DC for signalling circuit conforming to IEC 60947-5-1 | |
| 550 A at 440 V for power circuit conforming to IEC 60947 | |
| Rated breaking capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 60 A 40 °C - 10 min for power circuit |
| 430 A 40 °C - 1 s for power circuit | |
| 150 A 40 °C - 1 min for power circuit | |
| 310 A 40 °C - 10 s for power circuit | |
| 100 A - 1 s for signalling circuit | |
| 120 A - 500 ms for signalling circuit | |
| 140 A - 100 ms for signalling circuit | |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| 63 A gG at <= 690 V coordination type 1 for power circuit | |
| 63 A gG at <= 690 V coordination type 2 for power circuit | |
| Average impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 5 W AC-1 |
| 3 W AC-3 | |
| 3 W AC-3e | |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified |
| Power circuit: 600 V UL certified | |
| Signalling circuit: 690 V conforming to IEC 60947-1 | |
| Signalling circuit: 600 V CSA certified | |
| Signalling circuit: 600 V UL certified | |
| Power circuit: 690 V conforming to IEC 60947-4-1 | |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 | |
| Mechanical durability | 15 Mcycles |
| Electrical durability | 1.4 Mcycles 50 A AC-1 at Ue <= 440 V |
| 1.4 Mcycles 38 A AC-3 at Ue <= 440 V | |
| 1.4 Mcycles 38 A AC-3e at Ue <= 440 V | |
| Control circuit type | AC at 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz |
| 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz | |
| 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz | |
| 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz | |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) |
| 70 VA 50 Hz cos phi 0.75 (at 20 °C) | |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| 7 VA 50 Hz cos phi 0.3 (at 20 °C) | |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Operating time | 4...19 ms opening |
| 12...22 ms closing | |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end | |
| Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end | |
| Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid without cable end | |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | |
| Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| type mirror contact 1 NC conforming to IEC 60947-4-1 | |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact |
| 1.5 ms on energisation between NC and NO contact | |
| Mounting support | Rail |
| Plate | |
| Environment | |
| Standards | CSA C22.2 No 14 |
| EN 60947-4-1 | |
| EN 60947-5-1 | |
| IEC 60947-4-1 | |
| IEC 60947-5-1 | |
| UL 60947-4-1 | |
| IEC 60335-1:Clause 30.2 | |
| IEC 60335-2-40:Annex JJ | |
| UL 60335-2-40:Annex JJ | |
| CSA C22.2 No 60947-4-1 | |
| Product certifications | UL |
| CCC | |
| CSA | |
| Marine | |
| UKCA | |
| EAC | |
| CB Scheme | |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| conforming to IEC 60947-1 Annex Q category D exposure to damp heat | |
| Permissible ambient air temperature around the device | -40…60 °C |
| 60…70 °C with derating | |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) |
| Vibrations contactor closed (4 Gn, 5...300 Hz) | |
| Shocks contactor closed (15 Gn for 11 ms) | |
| Shocks contactor open (8 Gn for 11 ms) | |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 92 mm |
| Net weight | 0.38 kg |
| Weight | 0.992000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D38M7 |
| Color | Black |
| Depth [cm] | 12 |
| Width [cm] | 5.5 |
| Height [cm] | 12.2 |
| Range | Tesys D |
| Family | PPCTR |
| Type | Contactor |
| Poles | 3P |
| Voltage ~ Frequency | 25...400 Hz |
| IP Degree of Protection | IP20 |
