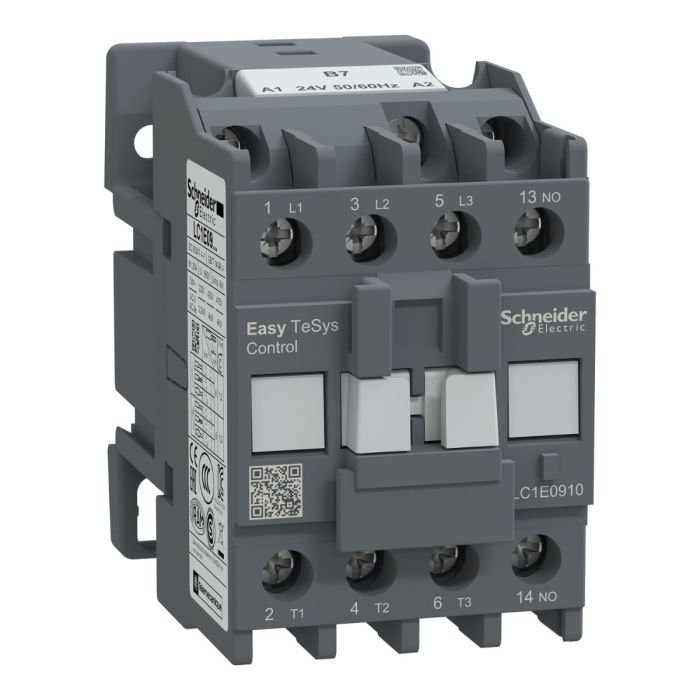

Schneider Electric Contactor, EasyPact TVS,3P (3NO),AC-3,<=440V,9A,24V AC coil,50/60Hz,1NO Auxiliary Contact
Out of stock
SKU
LC1E0910B7
Special Price EGP 637 Regular Price EGP 1,180
Quick Overview
Range: Easy TeSys
Product type: Contactor
Contactor application: Motor control, Resistive load
Poles description: 3P
You May Also Like:
Schneider Electric Auxiliary Contact Block, EasyPact TVS, 2 NO + 2 NCSpecial Price EGP 363 Regular Price EGP 672
Schneider Electric Thermal overload relay,Easy TeSys Protect,7...10A,class 10ASpecial Price EGP 1,006 Regular Price EGP 1,863
Schneider Electric Contactor EasyPact TVS, 3P, 3NO, AC-3 440V, 40A, 220V AC Coil, 50HzSpecial Price EGP 2,230 Regular Price EGP 4,129
Schneider Electric EasyPact TVS Contactor, 3P, 3NO, AC3 440V, 50A, 110V AC CoilSpecial Price EGP 2,653 Regular Price EGP 4,912
Schneider Electric Motor Circuit Breaker EasyPact TVS - AC3 3P - 0.1-0.16A - Thermal-Magnetic DetectionSpecial Price EGP 1,224 Regular Price EGP 2,267
Schneider Electric Contactor, Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,12A,110V AC coil,50Hz,1NO auxiliary contactSpecial Price EGP 720 Regular Price EGP 1,333
Schneider Electric EasyPact TVS Contactor 3P (3 NO), AC-3 - <= 440 V 95A, 110 V AC CoilSpecial Price EGP 5,454 Regular Price EGP 10,099
Schneider Electric EasyPact TVS - mechanical interlock - for LC1E80…ESpecial Price EGP 425 Regular Price EGP 787
Schneider Electric Contactor EasyPact TVS, 3P, 3NO, AC3, 440V, 40A, 24V AC Coil, 50HzSpecial Price EGP 2,230 Regular Price EGP 4,129
Schneider Electric EasyPact TVS Differential Thermal Overload Relay - 30-40A - Class 10ASpecial Price EGP 2,074 Regular Price EGP 3,841
Schneider Electric Thermal overload relay,Easy TeSys Protect,9...13A,class 10ASpecial Price EGP 1,006 Regular Price EGP 1,863
Schneider Electric Motor Circuit Breaker EasyPact TVS - AC3 3P - 0.16-0.25A - Thermal-Magnetic DetectionSpecial Price EGP 1,224 Regular Price EGP 2,267
Schneider Electric Thermal Overload RelaySpecial Price EGP 1,425 Regular Price EGP 2,638
Schneider Electric Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,1.6..2.5A,thermal magnetic tripSpecial Price EGP 1,276 Regular Price EGP 2,363
EasyPact TVS contactor 3 poles for motor applications up to 9A 4kW@440V. It provides a 24V 50/60Hz AC coil,1NO built-in auxiliary contacts,power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail,No derating up to 3000m altitude. Multi-standards certified (IEC,CCC,EAC) and Green Premium compliant (RoHs/Reach
Specifications:
| Main | |
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control |
| Resistive load | |
| Utilisation category | AC-3 |
| AC-3e | |
| AC-1 | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit |
| 9 A (at <55 °C) at <= 440 V AC AC-3e for power circuit | |
| 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit | |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Complementary | |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz |
| 4 kW at 380...400 V | |
| 4 kW at 415 V | |
| 4 kW at 440 V | |
| 5.5 kW at 500 V | |
| 5.5 kW at 660...690 V | |
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 25 A (at 55 °C) for power circuit |
| Irms rated making capacity | 90 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 72 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit |
| 61 A 40 °C - 60 s for power circuit | |
| 30 A 40 °C - 600 s for power circuit | |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 |
| 20 A gG at <= 690 V coordination type 1 for power circuit | |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole | 0.2 W AC-3 |
| 1.6 W AC-1 | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 1400000 cycles AC-3 |
| 150000 cycles AC-1 | |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz |
| 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz | |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) |
| 95 VA 60 Hz cos phi 0.75 (at 20 °C) | |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) |
| 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) | |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing |
| 4...19 ms on opening | |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end |
| Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Tightening torque | Power circuit: 1.2 N.m |
| Control circuit: 1.2 N.m | |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact |
| 1.5 ms on de-energisation guaranteed between NC and NO contact | |
| Mounting support | DIN rail |
| Plate | |
| Environment | |
| Standards | IEC 60947-5-1 |
| IEC 60947-1 | |
| IEC 60947-4-1 | |
| Product certifications | CE |
| EAC | |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 |
| Permissible ambient air temperature around the device | -20…70 °C at Uc |
| -60…80 °C storage | |
| -5…55 °C operation | |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) |
| Vibrations contactor closed (3 Gn, 5...300 Hz) | |
| Shocks contactor open (7 Gn for 11 ms) | |
| Shocks contactor closed (10 Gn for 11 ms) | |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Net weight | 0.3 kg |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1E0910B7 |
| Range | TVS |
| Family | PPCTR |
