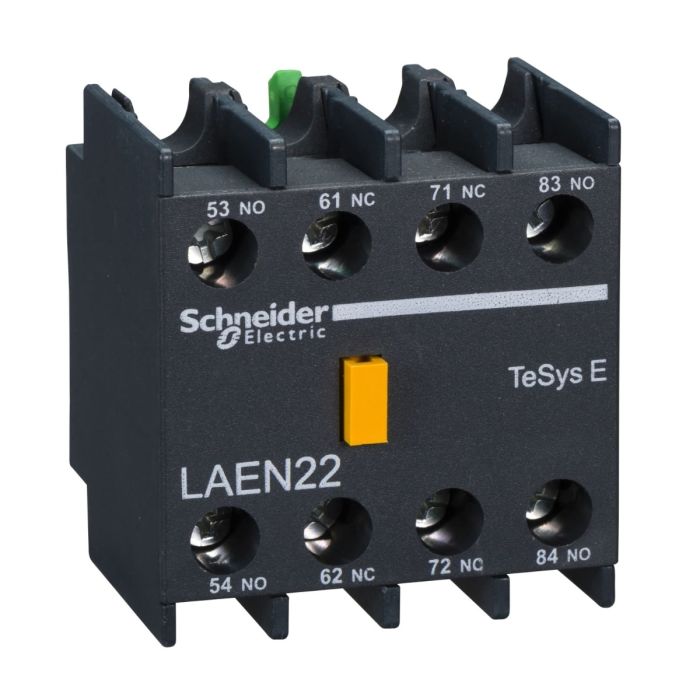

Auxiliary Contact Block, EasyPact TVS, 2 NO + 2 NC
Product or component type: Auxiliary contact block
Mounting location: Front
[Ith] conventional free air thermal current: 8 A (at 60 °C)
Enhance the functionality of your electrical equipment with the Schneider Electric LAEN22 Auxiliary Contact Block. Designed for use with EasyPact TVS switchgear, this contact block offers two normally open (NO) and two normally closed (NC) contacts, providing versatile control options for your applications.
Key Features:
Versatile Contacts: The LAEN22 features two NO (normally open) and two NC (normally closed) contacts, allowing you to configure your control systems as needed.
Technical Specifications:
Configuration: 2 NO (Normally Open) Contacts, 2 NC (Normally Closed) Contacts
Upgrade your EasyPact TVS switchgear with the Schneider Electric LAEN22 Auxiliary Contact Block to tailor your control systems to specific application requirements.
Specifications
| Main | |
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Auxiliary contact block |
| Device application | Signalling |
| Device short name | LAEN |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Range compatibility | EasyPact EasyPact TVS LC1E |
| Mounting location | Front |
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 2 NO + 2 NC |
| [Ui] rated insulation voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A - 1 s |
| 120 A - 500 ms | |
| 140 A - 100 ms | |
| Protection type | GG fuse 10 A |
| Mechanical durability | 10 Mcycles |
| Minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact |
| 1.5 ms on de-energisation no overlap between NC and NO contact | |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end |
| Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end | |
| Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end | |
| Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end | |
| Net weight | 0.06 kg |
| Environment | |
| Environmental characteristic | Standard environment |
| standards | IEC 60947-5-1 |
| product certifications | GOST |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 3000 m without derating |
| Weight | 0.060000 |
|---|---|
| Brand | Schneider Electric |
| Model | LAEN22 |
| Range | TVS |
| Family | PPCTR |
