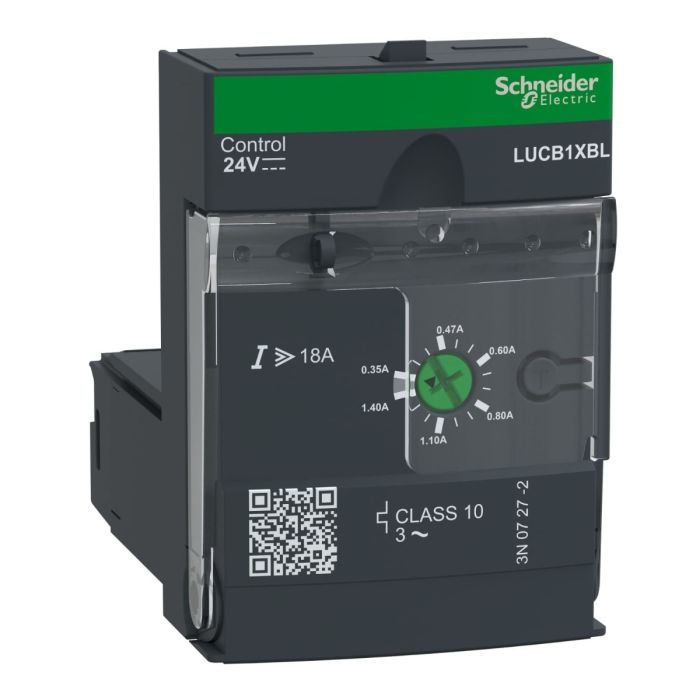

Schneider Electric Advanced Control Unit,TeSys Ultra,0.35-1.4A,3P Motors,protection & Diagnostic, Class 10, Coil 24V DC
Out of stock
SKU
LUCB1XBL
Special Price EGP 18,302 Regular Price EGP 33,277
Quick Overview
Range: TeSys
Product Type: Advanced control unit
Device Application: Motor control, Motor protection
Network frequency: 40...60 Hz
You May Also Like:
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 12 A - 42 V AC coilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 220V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P, Normally Open, 440V AC,3, 40A, 220V AC, 50,60Hz CoilSpecial Price EGP 4,591 Regular Price EGP 8,502
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 12A, 220V AC CoilSpecial Price EGP 1,548 Regular Price EGP 2,867
Schneider Electric Tesys D Control Relay, 5 NO, 690V, 220V AC Standard CoilSpecial Price EGP 1,371 Regular Price EGP 2,538
Schneider Electric TeSys D contactor, 3P (3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coilSpecial Price EGP 15,802 Regular Price EGP 29,264
Schneider Electric TeSys LRD Thermal Overload Relay, 2.5,4 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 65A, 220V AC 50/60Hz CoilSpecial Price EGP 7,418 Regular Price EGP 13,737
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 9A, 220V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Contactor Mechanical Latch Contact BlockSpecial Price EGP 4,384 Regular Price EGP 8,118
Schneider Electric Tesys, D Contactor Coil, 220V AC, 50, 60Hz, for 9, 38A ContactorSpecial Price EGP 622 Regular Price EGP 1,151
Schneider Electric Tesys D Contactor, 3P, 3 NO, AC3 440V, 9A, 24V AC CoilSpecial Price EGP 1,404 Regular Price EGP 2,601
Schneider Electric Thermal Overload Relay, 12-18 A, Class 10ASpecial Price EGP 2,443 Regular Price EGP 4,524
Schneider Electric Auxiliary Contact Block, TeSys D, 1NO + 1NC, Front Mounting, Screw TerminalsSpecial Price EGP 546 Regular Price EGP 1,012
Schneider Electric Auxiliary Contact Block, TeSys D, 2NO/2NC, Front Mounting, Screw TerminalsSpecial Price EGP 810 Regular Price EGP 1,499
Schneider Electric Thermal Overload Relay, 4-6 A, Class 10ASpecial Price EGP 2,024 Regular Price EGP 3,748
Schneider Electric Thermal Overload Relay, 9-13 A, Class 10ASpecial Price EGP 2,268 Regular Price EGP 4,200
Schneider Electric TeSys D Contactor, 3P, 3NO, AC3 440V, 18A, 380V AC CoilSpecial Price EGP 1,938 Regular Price EGP 3,590
Schneider Electric Contactor, Tesys D, 3P (3 Poles), 32A AC3, 440V, 220V AC CoilSpecial Price EGP 3,238 Regular Price EGP 5,996
Schneider Electric Tesys D Contactor, 3P, 3NO, AC3 440V, 80A, 110V AC 50/60Hz CoilSpecial Price EGP 9,720 Regular Price EGP 18,001
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Specifications:
| Main | |
| Range | TeSys |
| Range of Product | TeSys Ultra |
| product name | TeSys Ultra |
| Device short name | LUCB |
| Product or Component Type | Advanced control unit |
| Device Application | Motor control |
| Motor protection | |
| Product Specific Application | Basic protection and advanced functions, communication |
| main function available | Earth fault protection |
| Protection against phase failure and phase imbalance | |
| Protection against overload and short-circuit | |
| Manual reset | |
| Product compatibility | Power base LUB12 |
| Power base LUB32 | |
| Power base LUB38 | |
| Power base LUB120 | |
| Power base LUB320 | |
| Power base LUB380 | |
| Reversing contactor breaker LU2B12BL | |
| Reversing contactor breaker LU2B32BL | |
| Reversing contactor breaker LU2B38BL | |
| [Ue] rated operational voltage | 690 V AC |
| Network frequency | 40...60 Hz |
| Load type | 3-phase motor self-cooled |
| Utilisation category | AC-43 |
| AC-44 | |
| AC-41 | |
| Motor power kW | 0.25 kW 400...440 V AC 50/60 Hz |
| rated motor current adjustment range | 0.35…1.4 A |
| Thermal overload class | Class 10 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2 |
| Class 10 40…60 Hz -13…158 °F (-25…70 °C) UL 508 | |
| Tripping threshold | 14.2 x Ir +/- 20 % |
| Phase failure sensitivity | Yes |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Control circuit voltage limits | 20...27 V DC 24 V in operation |
| 14.5 V DC 24 V drop-out | |
| Typical current consumption | 130 mA 24 V DC I maximum while closing with LUB12 |
| 220 mA 24 V DC I maximum while closing with LUB32 | |
| 220 mA 24 V DC I maximum while closing with LUB38 | |
| 60 mA 24 V DC I rms sealed with LUB12 | |
| 80 mA 24 V DC I rms sealed with LUB32 | |
| 80 mA 24 V DC I rms sealed with LUB38 | |
| Heat dissipation | 2 W control circuit with LUB12 |
| 3 W control circuit with LUB32 | |
| 3 W control circuit with LUB38 | |
| Operating time | 35 ms opening with LUB12 control circuit |
| 35 ms opening with LUB32 control circuit | |
| 35 ms opening with LUB38 control circuit | |
| 70 ms closing with LUB12 control circuit | |
| 70 ms closing with LUB32 control circuit | |
| 70 ms closing with LUB38 control circuit | |
| Reset | Manual reset |
| Standards | EN 60947-6-2 |
| IEC 60947-6-2 | |
| UL 60947-4-1, with phase barrier | |
| CSA C22.2 No 60947-4-1, with phase barrier | |
| Product Certifications | CE |
| UL | |
| CSA | |
| CCC | |
| EAC | |
| ASEFA | |
| ATEX | |
| Marine | |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 |
| 600 V UL 60947-4-1 | |
| 600 V CSA C22.2 No 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 |
| 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 | |
| Fixing mode | Plug-in (front face) |
| Width | 1.8 in (45 mm) |
| Height | 2.6 in (66 mm) |
| Depth | 2.4 in (60 mm) |
| Compatibility code | LUCB |
| Environment | |
| IP degree of protection | IP20 front panel and wired terminals IEC 60947-1 |
| IP20 other faces IEC 60947-1 | |
| IP40 front panel outside connection zone IEC 60947-1 | |
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12 |
| 1202 °F (650 °C) IEC 60695-2-12 | |
| Shock resistance | 10 gn power poles open IEC 60068-2-27 |
| 15 gn power poles closed IEC 60068-2-27 | |
| Vibration resistance | 2 gn 5…300 Hz power poles open IEC 60068-2-6 |
| 4 gn 5…300 Hz power poles closed IEC 60068-2-6 | |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2 |
| 8 kV 4 on contact IEC 61000-4-2 | |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4 |
| 4 kV 4 all circuits except for serial link IEC 61000-4-4 | |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Ordering and shipping details | |
| Category | US10I1122397 |
| Discount Schedule | 0I11 |
| GTIN | 3.38911E+12 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LUCB1XBL |
| Range | Tesys D |
| Family | PPCTR |
| IP Degree of Protection | IP20 |
